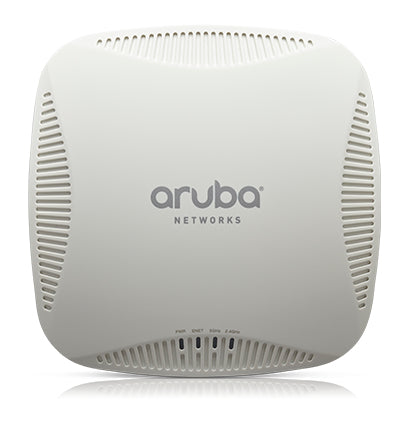

HPE Aruba Networking IAP-205 1000 Mbit/s White Power over Ethernet (PoE)

2.4/5GHz, 867 Mbps, 802.11ac, 2×2 MIMO, 4 antennas, omni-directional, DSSS/OFDM, 21 dBm, 10/100/1000BASE-T, 380 g, Instant mode, regulatory domain: USA

Description

Affordable and multifunctional 200-series 802.11ac APs maximize mobile device performance in medium-density Wi-Fi environments.

With support for two spatial streams, these compact dual-radio APs deliver wireless data rates up to 867 Mbps for 802.11ac and up to 300 Mbps for 802.11n-enabled mobile devices.

The AP-205 and IAP-205 models feature four integrated omni-directional downtilt antennas, while the AP-204 and IAP-204 support external detachable dual-band antennas using two RP-SMA antenna connectors.

Get a big performance advantage
Patented ClientMatch™ technology improves performance and eliminates sticky client behavior while roaming.

Protect service quality over the air
AppRF technology enables prioritization and policy enforcement for business-critical enterprise apps like Microsoft Lync.

You have the freedom to choose
The 200 series can be managed by an Aruba Mobility Controller or deployed in controllerless Aruba Instant mode.

CHOOSE YOUR OPERATING MODE
The 200 series APs offer a choice of operating modes to meet your unique management and deployment requirements.

- Controller-managed AP or Remote AP (RAP) running ArubaOS™. When managed by Aruba Mobility Controllers, 200 series APs offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding. Please refer to the Aruba Mobility Controllerdata sheets for more details.
- Aruba Instant™ AP running InstantOS™. In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up on Instant AP, configure it over the air, and plug in the other APs – the entire process takes about five minutes.

Specifications

Data transmission
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Transmitting power	21 dBmW
Reset button	Yes
Spread spectrum method	DSSS
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3az
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, OFDM, QPSK
Ethernet LAN data rates	10,100,1000 Mbit/s
Channel bandwidth	80 MHz
Certification	FCC CE R&TTE 1995/5/EC Low Voltage 72/23/EEC EN 300 328 EN 301 489 EN 301 893 UL/IEC/EN 60950 EN 60601-1-1, EN 60601-1-2
Maximum data transfer rate	1000 Mbit/s
MIMO	Yes
Wireless LAN features
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, OFDM, QPSK
Network
Internal	No
Spread spectrum method	DSSS
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3az
Bandwidth
Channel bandwidth	80 MHz
Security
Cable lock slot	Yes
Management features
Quality of Service (QoS) support	Yes
Certificates
Certification	FCC CE R&TTE 1995/5/EC Low Voltage 72/23/EEC EN 300 328 EN 301 489 EN 301 893 UL/IEC/EN 60950 EN 60601-1-1, EN 60601-1-2
Features
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Transmitting power	21 dBmW
Spread spectrum method	DSSS
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3az
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, OFDM, QPSK
Ethernet LAN data rates	10,100,1000 Mbit/s
Channel bandwidth	80 MHz
Maximum data transfer rate	1000 Mbit/s
MIMO	Yes
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ports & interfaces
RS-232 interface	Yes
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Power
Power consumption (max)	12.5 W
Output voltage	12 V
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling
Product colour	White
Reset button	Yes
Internal	No
LED indicators	Yes
Certification	FCC CE R&TTE 1995/5/EC Low Voltage 72/23/EEC EN 300 328 EN 301 489 EN 301 893 UL/IEC/EN 60950 EN 60601-1-1, EN 60601-1-2
Cable lock slot	Yes
Cable lock slot type	Kensington
Antenna
Antenna type	Internal
Antennas quantity	4
Antenna gain level (max)	6 dBi
Antenna features	Integrated antenna
Technical details
Transmitting power	21 dBmW
Reset button	Yes
Indication
LED indicators	Yes
Weight & dimensions
Width	150 mm
Depth	150 mm
Weight	380 g
Height	41.5 mm
Package width	190 mm
Package depth	187 mm
Package height	57 mm
Package weight	550 g
Packaging data
Mounting kit	Yes
Package width	190 mm
Package depth	187 mm
Package height	57 mm
Package weight	550 g
AC adapter included	No
Packaging content
Mounting kit	Yes
AC adapter included	No
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
