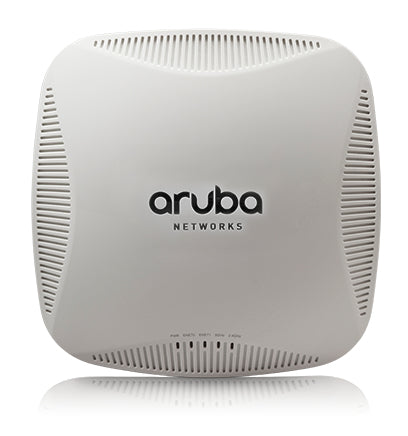

HPE Aruba Networking IAP-224 1300 Mbit/s White Power over Ethernet (PoE)

2.4/5 GHz, 1.3 Gbps, 3x3 MIMO, 3 x RP-SMA, DSSS, 23 dBm, 750 g, Instant mode, Restricted regulatory domain: Rest of World

Description

Ultra-fast 220-series 802.11ac APs offer the highest performance in high-density environments and can be managed by a Mobility Controller or deployed in controllerless Aruba Instant mode.

Operating at 1.3 Gbps in the 5-GHz band and 600 Mbps in the 2.4-GHz band, these three-stream APs are up to three-times faster than 802.11n APs.

The AP-225 and IAP-225 have six integrated omni-directional downtilt antennas, while the AP-224 and IAP-224 feature three RP-SMA connectors for external dual-band antennas.

Not just faster, smarter
With AppRFTM and ClientMatchTM, 210-series APs protect business-critical apps and eliminate sticky clients while roaming.

Friendly to Aruba Bluetooth Beacons
Connect Aruba Beacons to any 210-series USB port to deliver indoor location services that can be centrally managed.

Two hands better than one
A second Gigabit Ethernet port on the 220 series doubles the network backhaul capacity and acts as a redundant link.

CHOOSE YOUR OPERATING MODE

The 220 series APs offer a choice of operating modes to meet your unique management and deployment requirements.

- Controller-managed AP or Remote AP (RAP) running ArubaOS™. When managed by Aruba Mobility Controllers, 220 series APs offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding.
- Aruba Instant™ AP running InstantOS™. In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up one Instant AP, configure it over the air, and plug in the other APs – the entire process takes about five minutes.
- Spectrum analysis identifies sources of RF interference
- Air monitor provides wireless intrusion protection
- Hybrid AP serves Wi-Fi clients and provides wireless intrusion protection and spectrum analysis
- Secure enterprise mesh

Specifications

Data transmission
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1300 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Transmitting power	23 dBmW
Reset button	Yes
Firmware upgradeable	Yes
Spread spectrum method	DSSS
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, OFDM, QPSK
Ethernet LAN data rates	10,100,1000 Mbit/s
Channel bandwidth	80 MHz
Certification	FCC CE R&TTE 1999/5/EC Low Voltage 2006/95/EC EN 300 328 EN 301 489 EN 301 893 UL/IEC/EN 60950 EN 60601-1-1, EN60601-1-2
Maximum data transfer rate	1300 Mbit/s
MIMO	Yes
Wireless LAN features
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, OFDM, QPSK
Network
Spread spectrum method	DSSS
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Bandwidth
Channel bandwidth	80 MHz
Security
Cable lock slot	Yes
Management features
Quality of Service (QoS) support	Yes
Firmware upgradeable	Yes
Certificates
Certification	FCC CE R&TTE 1999/5/EC Low Voltage 2006/95/EC EN 300 328 EN 301 489 EN 301 893 UL/IEC/EN 60950 EN 60601-1-1, EN60601-1-2
Features
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Transmitting power	23 dBmW
Spread spectrum method	DSSS
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, OFDM, QPSK
Ethernet LAN data rates	10,100,1000 Mbit/s
Channel bandwidth	80 MHz
Maximum data transfer rate	1300 Mbit/s
MIMO	Yes
Ports & interfaces
WAN connection	Ethernet (RJ-45)
USB connector type	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes
Power
Power consumption (max)	17 W
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling
Product colour	White
Reset button	Yes
LED indicators	Yes
Certification	FCC CE R&TTE 1999/5/EC Low Voltage 2006/95/EC EN 300 328 EN 301 489 EN 301 893 UL/IEC/EN 60950 EN 60601-1-1, EN60601-1-2
Cable lock slot	Yes
Cable lock slot type	Kensington
Antenna
Number of connectors	3
Antenna type	Internal
Antenna gain level (max)	3 dBi
Antenna connector type	RP-SMA
Antenna features	Detachable antenna
Technical details
Transmitting power	23 dBmW
Reset button	Yes
Firmware upgradeable	Yes
Harmonized System (HS) code	85176990
Indication
LED indicators	Yes
Weight & dimensions
Width	203 mm
Depth	203 mm
Weight	750 g
Height	54 mm
Package width	315 mm
Package depth	265 mm
Package height	100 mm
Package weight	1.25 kg
Packaging data
Mounting kit	Yes
Package width	315 mm
Package depth	265 mm
Package height	100 mm
Package weight	1.25 kg
AC adapter included	No
Packaging content
Mounting kit	Yes
AC adapter included	No
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Logistics data
Harmonized System (HS) code	85176990
