HPE | SKU:
JY697A
Sold out

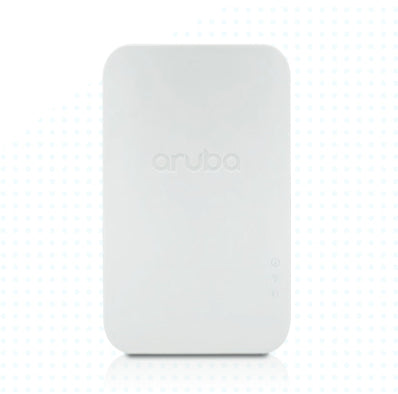

HPE Aruba Networking JY697A wireless access point White Power over Ethernet (PoE)
€282.08
Unit price
/
Unavailable
Shipping calculated at checkout.
HPE Aruba Networking JY697A wireless access point White Power over Ethernet (PoE) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
AP-203H (JP) Flex-radio 802.11ac 2x2 Unified Hospitality AP with Internal Antennas
This cost-effective 802.11ac access point with single or dual radio mode delivers high performance Wi-Fi networks for hospitality and branch offices, while minimizing costs for low to moderate density areas.
The compact Aruba 203H AP is software configurable to operate in either 1x1 dual radio mode, or 2x2 single radio
mode. It supports up to 867Mbps in the 5GHz band or up to 400Mbps in the 2.4 GHz band in single radio 2x2 mode. In dual radio 1x1 mode, the maximum data rates for the 203H AP are up to 433Mbps in the 5GHz band and 200Mbps in the 2.4GHz band. The 203H AP can be easily mounted to a standard data wall-box using the existing structured cabling system or converted to a desk mounted AP using an optional mounting kit. With its flexible deployment options, the 203H is designed to deliver high-speed Wi-Fi for cost-sensitive, medium-density environments. It ensures the most cost-effective Wi-Fi connectivity for indoor premises including hotel rooms, dormitories, small offices and
remote workstations. Powered by PoE, the 203H AP minimizes power consumption with rich features that further facilitates a highly efficient and reliable wireless network. The 802.11ac 203H AP combines wireless and wired access in a single compact device. The local Gigabit Ethernet port can securely attach wired devices to your network. Additionally, the USB host interface on the AP allows the plug-in of Aruba BLE radio modules to enable
advanced location and indoor wayfinding, and proximity-based push notification services.
Description
Cost-effective 802.11ac access point for branch offices and hospitality environmentsThis cost-effective 802.11ac access point with single or dual radio mode delivers high performance Wi-Fi networks for hospitality and branch offices, while minimizing costs for low to moderate density areas.
The compact Aruba 203H AP is software configurable to operate in either 1x1 dual radio mode, or 2x2 single radio
mode. It supports up to 867Mbps in the 5GHz band or up to 400Mbps in the 2.4 GHz band in single radio 2x2 mode. In dual radio 1x1 mode, the maximum data rates for the 203H AP are up to 433Mbps in the 5GHz band and 200Mbps in the 2.4GHz band. The 203H AP can be easily mounted to a standard data wall-box using the existing structured cabling system or converted to a desk mounted AP using an optional mounting kit. With its flexible deployment options, the 203H is designed to deliver high-speed Wi-Fi for cost-sensitive, medium-density environments. It ensures the most cost-effective Wi-Fi connectivity for indoor premises including hotel rooms, dormitories, small offices and
remote workstations. Powered by PoE, the 203H AP minimizes power consumption with rich features that further facilitates a highly efficient and reliable wireless network. The 802.11ac 203H AP combines wireless and wired access in a single compact device. The local Gigabit Ethernet port can securely attach wired devices to your network. Additionally, the USB host interface on the AP allows the plug-in of Aruba BLE radio modules to enable
advanced location and indoor wayfinding, and proximity-based push notification services.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Spread spectrum method | DSSS |
| Modulation | BPSK, QPSK, CCK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| MIMO | Yes |
| Wireless LAN features | |
| Modulation | BPSK, QPSK, CCK |
| Network | |
| Spread spectrum method | DSSS |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Spread spectrum method | DSSS |
| Modulation | BPSK, QPSK, CCK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Dynamic Frequency Selection (DFS) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Cyclic Delay Diversity (CDD) | Yes |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 400 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ports & interfaces | |
| Cabling technology | 10/100/1000Base-T(X) |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Product colour | White |
| Antenna | |
| Antenna type | Internal |
| Software | |
| Dynamic Frequency Selection (DFS) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Cyclic Delay Diversity (CDD) | Yes |
| Weight & dimensions | |
| Width | 86 mm |
| Depth | 265 mm |
| Weight | 225 g |
| Height | 140 mm |
| Package width | 115 mm |
| Package depth | 47 mm |
| Package height | 165 mm |
| Package weight | 290 g |
| Packaging data | |
| Package width | 115 mm |
| Package depth | 47 mm |
| Package height | 165 mm |
| Package weight | 290 g |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 93% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
