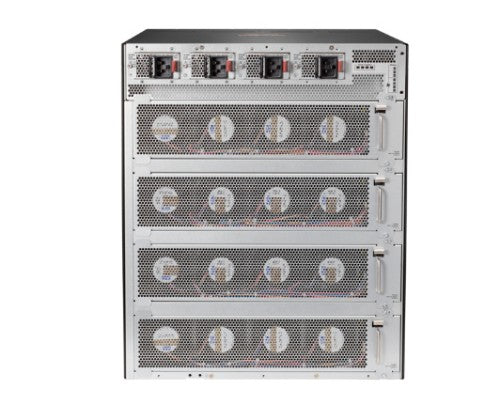

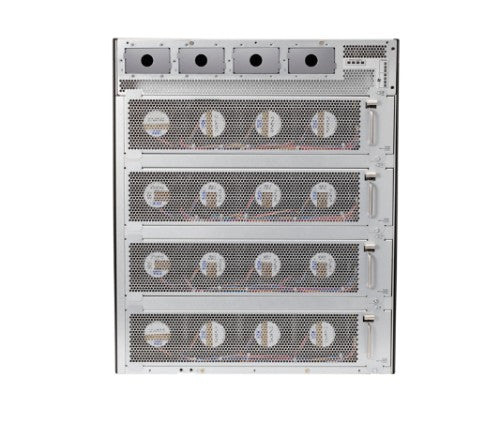

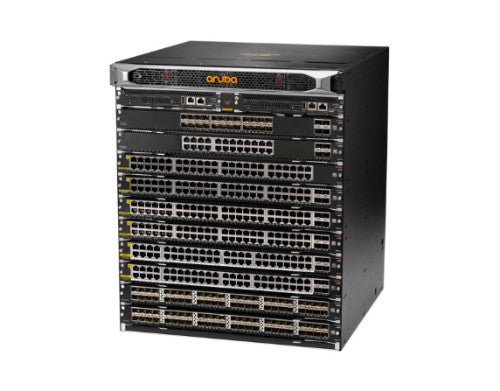

HPE Aruba Networking R0X27A network switch Power over Ethernet (PoE) Black, Silver

Aruba 6410 Switch

Key Features

• High performance modular Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS, and delivers up to 28 Tbps in non-blockling bandwidth
• High availability with industry-leading VSX and redundant power supplies and fans
• Full density HPE Smart Rate (1/2.5/5GbE) multi-gigabit, 60W PoE, and SFP+ modules
• High speed, non-blocking 1GbE, 10GbE, 25GbE, 40GbE, 50GbE, and 100GbE with intelligent monitoring, visibility and remediation with Aruba Network Analytics Engine
• Aruba NetEdit support for automation, configuration and verification, and one touch deployment with the Aruba CX Mobile App
• Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT

Description

Automation and Analytics
The Aruba CX 6400 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.

Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security related issues easily, through the use of Python agents and REST APIs.

The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.

High Availability and Performance
The Aruba CX 6400 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.

Features high speed, non-blocking 1GbE, 10GbE, 25GbE, 40GbE, 50GbE, and 100GbE for scalable connnectivity.

The ability of AOS-CX to maintain synchronous state across dual control planes allows a simplified carrier-class high-availability solution called Aruba Virtual Switching Extension (VSX) that enables a distributed architecture which is available during upgrades or control plane events.

High performance and versatile platform supports non-blocking 1GbE, 10GbE, 25GbE, 40GbE, 50GbE, and 100GbE connections, and high density connectivity for aggregation with up to 480 ports of HPE Smart Rate multi-gigabit (1/2.5/5GbE) with 60W PoE for a total of 28,880W of PoE.

Smarter Segmentation
The Aruba CX 6400 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures.

Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.

Switch-to-switch tunnels enable scalable multi-tenancy support with VXLAN to VRF mapping, while allowing policy application via user roles.

Specifications

Technical details
Product colour	Black, Silver
Network
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Design
Product colour	Black, Silver
Performance
Harmonized System (HS) code	85176990
Power
Power supply included	Yes
AC input voltage	200 - 240 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	60 W
Power over Ethernet (PoE)	Yes
Weight & dimensions
Width	528.8 mm
Depth	442.6 mm
Height	448.5 mm
Weight	53.5 kg
Logistics data
Harmonized System (HS) code	85176990
