HPE | SKU:
403626R-B21
Sold out

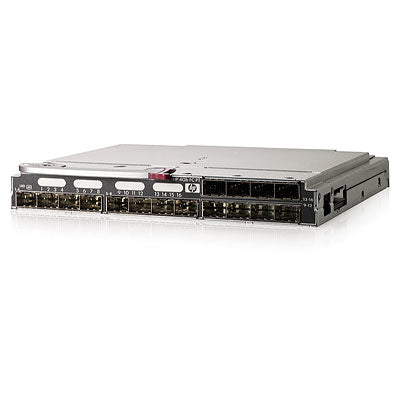

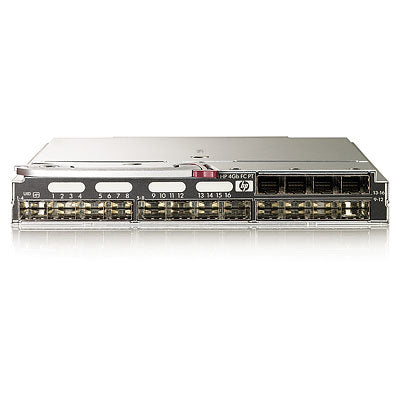

HPE BladeSystem 4GB FC Pass-thru Mod
€3,418.72
Unit price
/
Unavailable
Shipping calculated at checkout.
HPE BladeSystem 4GB FC Pass-thru Mod is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
4GB Fibre Channel Pass-thru Module for c-Class BladeSystem
Performance.
4Gb per port throughput to SAN fabric. Sixteen Fiber Optic ports with pre-install SFPs delivered in a single IO bay form factor. 1:1 non blocking architecture. Wire speed.
Management.
No need for SAN management inside the enclosure. Basic power, temperature and status monitored by the enclosure Onboard Administrator.
Options.
The 4Gb Fibre Channel Pass-Thru Module is shipped as a single unit and should be ordered in quantities of two. 403626-B21 Qty.1 HP 4Gb Fibre Channel Pass-Thru Module for c-Class BladeSystem. Qty.1 HP CarePack Enhanced Warranty. UE603E. Qty.1 BladeSystem Enhanced Network Configuration Service.
Connector devices.
300836-B21 Long wave 2 Gb optical transceiver- (35 km) SFP. A6515A Short wave 2 Gb optical transceiver- (300m) SFP. A6516A Long wave 2 Gb optical transceiver- (10 km) SFP. A7446A 4Gb Shortwave transceiver- single.
Description
The 4Gb Fibre Channel Pass-Thru Module for HP c-Class BladeSystem is designed for those customers desiring a direct connection between each server blade within the enclosure and external Fibre Channel SAN switches, directors, or SAN controllers. Ideal investment protection for datacenters with existing storage networking infrastructure, the HP Fibre Channel Pass-Thru Module delivers up to sixteen 4Gb Fiber Optic IO connections providing a 1:1 non-switched, non-blocking paths between the server blade and the SAN. The modular design is hot pluggable and easily installs into the I/O bays of the c-Class enclosure. Installing a pair of Fibre Channel Pass-Thru Modules provides redundant paths for connection to your SAN.Performance.
4Gb per port throughput to SAN fabric. Sixteen Fiber Optic ports with pre-install SFPs delivered in a single IO bay form factor. 1:1 non blocking architecture. Wire speed.
Management.
No need for SAN management inside the enclosure. Basic power, temperature and status monitored by the enclosure Onboard Administrator.
Options.
The 4Gb Fibre Channel Pass-Thru Module is shipped as a single unit and should be ordered in quantities of two. 403626-B21 Qty.1 HP 4Gb Fibre Channel Pass-Thru Module for c-Class BladeSystem. Qty.1 HP CarePack Enhanced Warranty. UE603E. Qty.1 BladeSystem Enhanced Network Configuration Service.
Connector devices.
300836-B21 Long wave 2 Gb optical transceiver- (35 km) SFP. A6515A Short wave 2 Gb optical transceiver- (300m) SFP. A6516A Long wave 2 Gb optical transceiver- (10 km) SFP. A7446A 4Gb Shortwave transceiver- single.
Specifications
| Ports & interfaces | |
|---|---|
| SFP module slots quantity | 16 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| SFP/SFP+ slots quantity | 16 |
| I/O ports | 16 x 1000Base-SX |
| Network | |
| Full duplex | Yes |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE‑SX |
| Data transmission | |
| Supported data transfer rates | 1/2/4 Gbit/s |
| Maximum data transfer rate | 4.24 Gbit/s |
| Design | |
| LED indicators | Yes |
| Other features | |
| Power LED | Yes |
| I/O ports | 16 x 1000Base-SX |
| Weight & dimensions | |
| Width | 190.5 mm |
| Depth | 266.7 mm |
| Height | 27.9 mm |
| Weight | 299 g |
| Indication | |
| Power LED | Yes |
| LED indicators | Yes |
