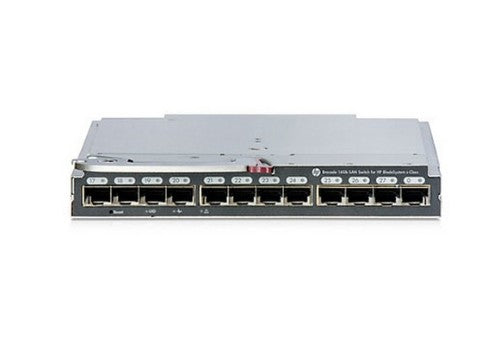

HPE C8S46AR network switch Managed Grey

BROCADE 16GB/28C SAN RMKT SWITCH

Description

Are you looking for a higher performance embedded Fibre Channel switch option for your HP BladeSystem c-Class enclosure?

The Brocade 16Gb SAN Switch for HP BladeSystem c-Class represents the next generation of embedded Fibre Channel switches with 16 Gb/s performance. It hot-plugs into the back of the HP BladeSystem c-Class Enclosure and its integrated design frees up rack space, enables shared power and cooling, and reduces cabling and small form-factor pluggables. Enhanced trunking support with external switches provides higher bandwidth to enable demanding applications and high density server virtualization. In addition, the 16 or 28 auto-sensing ports support lower bandwidth components for investment protection and an upgrade license enables customers to 'pay as they grow'. The Brocade 16Gb SAN Switch saves space and cost, simplifies the SAN environment, enables easier deployment and management and delivers the performance required for higher throughput applications.Enables Data Center Consolidation and Cost Savings Through State-of-the-art Design and Performance
• The Brocade 16 Gb SAN Switch for HP BladeSystem c-Class enables data center consolidation with HP BladeSystem c-Class enclosures through a state-of-the-art zero-footprint design while lowering cost through shared power and cooling, fewer cables and SFPs and a reduction in space.
Enables High Density Virtualization and Deployment of I/O Intensive Applications on HP BladeSystems
• The Brocade 16 Gb SAN Switch for HP BladeSystem c-Class offers a non-blocking architecture that supports up to 896 Gb/s of full duplex throughput.
Simplifies Data Center Management Through Integration with Management Platforms and Tools
• The Brocade 16 Gb SAN Switch for HP BladeSystem c-Class integrates with HP Onboard Administrator for BladeSystem, HP Systems Insight Manager, and HP Storage Essentials.

Specifications

Technical details
Product colour	Grey
Management features
Switch type	Managed
Ports & interfaces
SFP+ module slots quantity	12
Network
Full duplex	Yes
Data transmission
Switching capacity	16 Gbit/s
Design
Product colour	Grey
Power
Power supply included	No
Weight & dimensions
Width	268.5 mm
Depth	192.8 mm
Height	27.9 mm
Weight	1.5 kg
