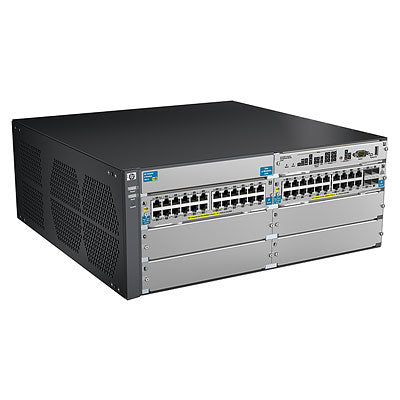

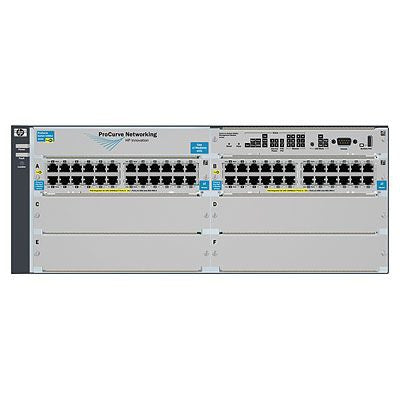

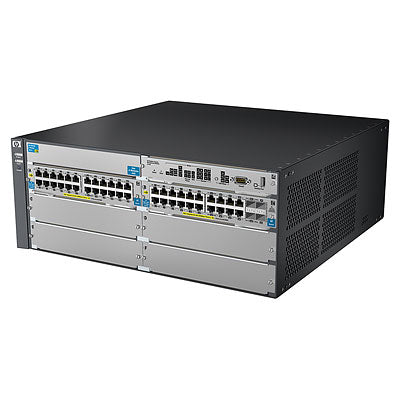

HPE E5406-44G-PoE+/4G-SFP v2 zl Managed L3 Power over Ethernet (PoE)

HP 5406-44G-PoE+-4G-SFP v2 zl Switch with Premium Software

Description

The HP 5400 zl Switch Series consists of advanced intelligent switches in the HP modular chassis product line, which includes 6-slot and 12-slot chassis and associated zl modules and bundles. The foundation for the switch series is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as Quality of Service (QoS) and security, to be implemented in a scalable yet granular fashion. With 10/100, Gigabit Ethernet, and 10 Gigabit Ethernet interfaces; choice of PoE+ and non-PoE; integrated Layer 3 features; and HP AllianceOne solutions, the 5400 zl switch series offers excellent investment protection, flexibility, and scalability, as well as ease of deployment, operation, and maintenance.

Software-defined networking

• OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths


Quality of Service (QoS)

• Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis


Management

• Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 Switch located anywhere on the network


Connectivity

• IEEE 802.3az Energy Efficient Ethernet: lowers power consumption in periods of low link usage (supported on v2 zl 10/100/1000 and 10/100 modules)


Performance

• High-speed, high-capacity architecture: 1 Tbps crossbar switching fabric provides intra-module and inter-module switching with 585.6 million pps throughput on the purpose-built ProVision ASICs


Resiliency and high availability

• Virtual Router Redundancy Protocol: allows groups of two routers to dynamically back each other up to create highly available routed environments


Layer 2 switching

• VLAN support and tagging: supports the IEEE 802.1Q standard and 2,048 VLANs simultaneously

Specifications

Management features
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	MLDv1/v2, OSPFv2/v3, RIPv2, RMONv2, SMON
Switch layer	L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	44
Copper ethernet cabling technology	1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T
Network
Copper ethernet cabling technology	1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Spanning tree protocol	Yes
Routing entries	10000
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	2048
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
IGMP snooping	Yes
Data transmission
Throughput	282.1ml pps
MAC address table	64000 entries
Supported data transfer rates	10/100 Mbps
Switching capacity	379.2 Gbit/s
Number of trunks	60
Number of queues	8
Jumbo frames support	Yes
Maximum data transfer rate	1 Gbit/s
Number of VLANs	2048
Security
Static port security	Yes
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server, DHCP client
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMPv1/v2c/v3, LLDP, RMON, XRMON, sFlow
Supported network protocols	IPv6, SSHv6, SNTP, IGMPv3
Design
Safety	CSA, UL, IEC, EN
Electromagnetic compatibility	FCC, VCCI, EN/CISPR
Performance
Processor frequency	666 MHz
Noise level	57 dB
Memory type	DDR-SDRAM
Internal memory	256 MB
Flash memory	4 MB
Built-in processor	Yes
Processor model	PowerPC MPC8540
Power
Power consumption (typical)	215 W
Number of power supply units	1
Input voltage	100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Other features
Latency	3.7µs/2.1µs
Dimensions (WxDxH)	450.9 x 444.5 x 175.3 mm
Connectivity technology	Wired
Wi-Fi	No
Power supply	1500 W
Networking features	Gigabit Ethernet
Mounting	EIA
Input frequency	50/60 Hz
Weight (imperial)	20.7 kg (45.6 lbs)
Electromagnetic immunity	EN, IEC
Dimensions (W x D x H) (imperial)	444.5 x 450.9 x 175.3 mm (17.5 x 17.8 x 6.9")
Acoustic pressure emissions	40.2 dB
Input voltage	100 - 240 V
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 95%
Operating temperature (T-T)	32 - 131 °F
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	15 - 95%
Operating altitude	0 - 3000 m
Heat dissipation	3700 BTU/h
Virtual LAN features
Number of VLANs	2048
Weight & dimensions
Weight	20.7 kg
Weight (imperial)	20.7 kg (45.6 lbs)
Dimensions (W x D x H) (imperial)	444.5 x 450.9 x 175.3 mm (17.5 x 17.8 x 6.9")
Sound emission
Acoustic pressure emissions	40.2 dB
Technical details
Processor frequency	666 MHz
Noise level	57 dB
Electromagnetic immunity	EN, IEC
Built-in processor	Yes
Certificates
Safety	CSA, UL, IEC, EN
Electromagnetic compatibility	FCC, VCCI, EN/CISPR
Memory
Memory type	DDR-SDRAM
Internal memory	256 MB
Flash memory	4 MB
