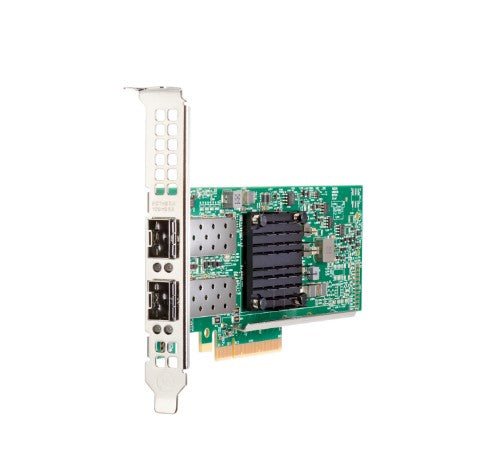

HPE Ethernet 10/25Gb 2-port SFP28 BCM57414 Internal Ethernet / Fiber 25000 Mbit/s

Ethernet 10/25Gb 2-port SFP28 BCM57414 Adapter

Description

Do you want to increase bandwidth and reduce network vulnerability while reducing costs?The HPE Ethernet 10/25Gb 2-port BCM57414 Adapters deliver the capability to drive either 10G (SFP+) or 25G (SFP28) speeds, providing the option for a large jump in Ethernet performance. Compared to a 10G implementation these adapters offer cost reductions by lowering the number of servers, adapters, cables and switches while accelerating server performance and targeted workloads. These adapters help prevent, detect and recover from cyber attacks by protecting applications, data and server infrastructure by authenticating digitally signed firmware via a Root of Trust architecture. In addition, they offer Secure Boot, Device-level Firewall and other advanced security features.

Features

Safeguard Your Data and Your Business Network
- The HPE Ethernet 10/25Gb 2-port BCM57414 Adapter blocks installation of rogue or corrupted firmware and verifies that the executing firmware is trusted via Hardware Root of Trust and Authentication.
- Stops unmanaged access to memory or storage with Device - level Firewall. This validates that on-device firmware and configuration data can only be accessed by authorized agents.
- Provides traceability into authenticated firmware updates by capturing changes in standard system logs.

Boosting I/O Bandwidth with Lower Latency
- The HPE Ethernet 10/25Gb 2-port BCM57414 Adapter delivers single root I/O virtualization (SR-IOV) with the ability to run a large number of virtual machines (VMs) per server, which reduces the need for hardware and the resultant costs of space and power required by hardware devices.
- Reduces CPU Utilization and helps improve host VM density and server efficiency using remote direct memory access (RDMA) over Converged Ethernet (RoCE v2) for Live Migration, Microsoft SMB Direct environments.

Realize Breakthrough Economics
- The HPE Ethernet 10/25Gb 2-port BCM57414 Adapter offloads packet processing to reduce CPU utilization and lower power with Tunnel Offloads (VXLAN and NVGRE).
- Speeds packet processing to service more I/O requests utilizing data plane development packet (DPDK).

Specifications

Ports & interfaces
Internal	Yes
PCI version	3.0
Fiber ports quantity	2
Fiber optic connector	SFP28
Interface	Ethernet / Fiber
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	25000 Mbit/s
Technical details
Compatible products	ProLiant DL180 Gen10
Network
Networking standards	IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x
Ethernet LAN data rates	10000,25000 Mbit/s
Maximum data transfer rate	25000 Mbit/s
Design
Compatible products	ProLiant DL180 Gen10
Internal	Yes
Component for	Server
Operational conditions
Operating temperature (T-T)	5 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Performance
Compatible products	ProLiant DL180 Gen10
