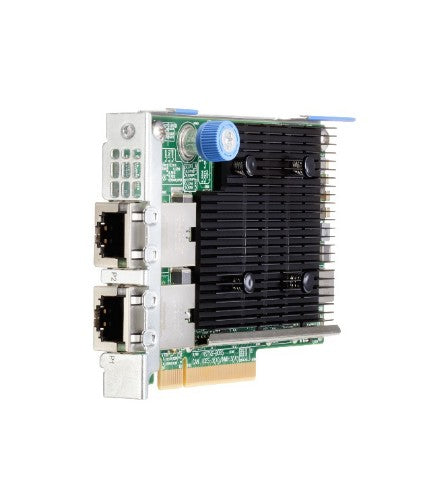

HPE Ethernet 10Gb 2-port 562FLR-SFP+ Internal Ethernet / Fiber 10000 Mbit/s

Ethernet 10Gb 2-port 562FLR-SFP+ Adapter

Description

Do you require SDN features, low-latency and high-bandwidth in your data center?

The HPE Ethernet 10Gb 2-port 562FLR-SFP+ adapter offers the latest SDN features in a FlexibleLOM form factor. The HPE 562FLR-SFP+ is a feature rich, low power dual port PCIe v3.0 x8 lane adapter designed for use in HPE ProLiant Gen9 Rack and Density Optimized servers.

Features

Outstanding I/O Performance in Virtualized Server Environments
- Reduces I/O bottlenecks by providing intelligent offloads for networking traffic per virtual machine (VM), enabling near-native performance and VM scalability.
- The single-root I/O virtualization (SR-IOV) allows an I/O device to be shared by multiple Virtual Machines (VMs), without losing runtime performance.
- Dual-port PCIe 3.0,x8 lane 10Gb, designed for HPE ProLiant Gen9 Rack/Tower and Density.
- Data Plane Developer Kit (DPDK) optimized for efficient packet processing.

Network virtualization is the Next Big Trend in Creating an Agile Data Center
- Provides stateless offloads that preserve application performance for overlay networks. With these offloads it is possible to distribute network traffic across CPU cores.
- VXLAN and NVGRE Offloads for stateless offloads preserves application performance for overlay networks and makes it possible to distribute network traffic across CPU cores.
- Excellent small packet performance for network appliances and Network Function Virtualization (NFV).
- Optimized servers providing up to 40Gb/s bi-directional near line rate throughput.

Specifications

Ports & interfaces
Internal	Yes
PCI version	3.0
Fiber ports quantity	2
Fiber optic connector	SFP+
Interface	Ethernet / Fiber
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	10000 Mbit/s
Network
Jumbo frames	9500
Networking standards	IEEE 1588, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1ad, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3q, IEEE 802.3x
Jumbo frames support	Yes
Maximum data transfer rate	10000 Mbit/s
Auto-negotiation	Yes
Design
Internal	Yes
Component for	Server
Power
Power consumption (typical)	12 W
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-65 - 85 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	241.3 mm
Depth	190.5 mm
Height	57.1 mm
Weight	450 g
Performance
Auto-negotiation	Yes
Other features
Jumbo frames	9500
