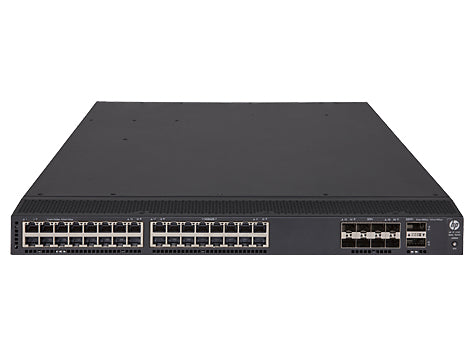

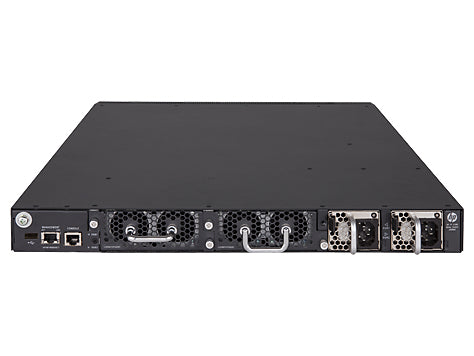

HPE FlexFabric 5700-32XGT-8XG-2QSFP+ Managed L3 10G Ethernet (100/1000/10000) 1U Black

FlexFabric 5700-32XGT-8XG-2QSFP+ - 32 RJ-45 1/10GBASE-T, 8 1000/10000 SFP+, 2 QSFP+, 512 MB flash, 2GB SDRAM, 714.2 Mpps, 960 Gbps, 13 kg, Refurbished

Description

The HP FlexFabric 5700 Switch Series provides an open door for expanding your enterprise network by adding capacity with local switching and L2/L3 support. Take advantage of IRF enhancements for spine/leaf configurations, to simplify network management and expand server connectivity. Resilience and ease of management come hand–in-hand with the FlexFabric 5700.

While IRF reduces management complexities by up to 88%, it also delivers <50msec convergence time. You can rely on the FlexFabric 5700 to lower TCO with up to a 25% lower cost than competing devices.

Features
Expand Your Data Center Network with Confidence

The HP FlexFabric 5700 Switch Series expands your enterprise network by adding local switching capacity for better scalability, so that you can support more customers.

Up to thirty (30) HP FlexFabric switches can be added to the network and managed by one Controlling Bridge (CB) switch improving server connectivity. (future)

The FlexFabric 5700 Switch Series gives you choices that fit your budget and environment by offering 1/10GbE ports supporting SFP and BASE-T with 10/40GbE uplinks.

High-Performance Data Center Switching

The HP FlexFabric 5700 Switch Series delivers 960Gbps switching capacity for the most demanding applications.

Provides local switching and participates in the network unlike competing port multiplexers.

Low latency, under 1.5us 10GbE latency, provides improved throughput and fewer lost packets.

Business Agility and Resilience with Comware 7

The HP FlexFabric 5700 Switch Series delivers IRF <50msec convergence time enabling faster application response time.

The 5700 Switch Series supports spine/leaf IRF to enhance network agility with ECMP and faster convergence.

In Service Software Update (ISSU) enables high availability with updates accomplished without a reboot or power cycle, in the background.

Simplicity and Lower TCO

The HP FlexFabric 5700 Switch Series simplifies switch management by up to 88% with IRF.

No extra hidden costs with simple one license per switch for all OS features.

Up to 25% lower cost than competing port multiplexers for lower TCO.

Automate tedious tasks with software defined network (SDN) and reclaim wasted resources.

Specifications

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
MIB support	Yes
Switch layer	L3
Ports & interfaces
QSFP+ module slots quantity	8
Basic switching RJ-45 Ethernet ports quantity	32
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Installed SFP+ modules quantity	8
USB 2.0 ports quantity	1
Fiber optic connector	QSFP+, SFP+
Console port	RJ-45
Network
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Number of VLANs	4096
Link aggregation	Yes
Flow control support	Yes
10G support	Yes
IGMP snooping	Yes
Data transmission
Throughput	714.2 Mpps
Latency (10 Gbps)	1.5 µs
Packet buffer memory	9 MB
MAC address table	128000 entries
Switching capacity	960 Gbit/s
Jumbo frames support	Yes
Number of VLANs	4096
Security
Security algorithms	802.1x RADIUS
IGMP snooping	Yes
Protocols
Management protocols	SNMP, Telnet, FTP, NTP, SNTP
Design
Form factor	1U
Product colour	Black
Stackable	Yes
LED indicators	Yes
Rack mounting	Yes
Performance
Virtual stacking (units)	9
Noise level	70.6 dB
Memory type	SDRAM
Internal memory	2048 MB
Flash memory	512 MB
Packet buffer memory	9 MB
Stackable	Yes
Harmonized System (HS) code	85176990
Power
Power supply included	No
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	350 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Virtual LAN features
VLAN support	Yes
Number of VLANs	4096
Weight & dimensions
Width	439.9 mm
Depth	660 mm
Height	43.7 mm
Weight	13 kg
Optical fiber
Fiber optic connector	QSFP+, SFP+
Technical details
Virtual stacking (units)	9
Form factor	1U
Product colour	Black
Stackable	Yes
Noise level	70.6 dB
Rack mounting	Yes
Memory
Packet buffer memory	9 MB
Memory type	SDRAM
Internal memory	2048 MB
Flash memory	512 MB
Indication
LED indicators	Yes
Logistics data
Harmonized System (HS) code	85176990
