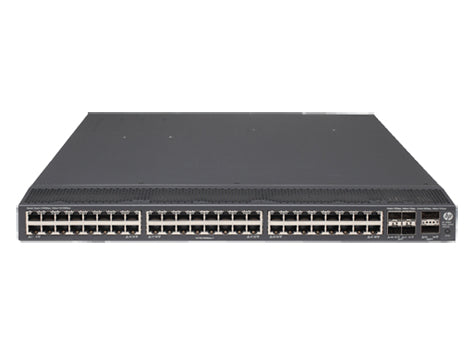

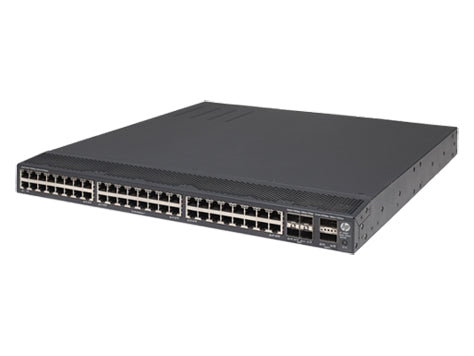

HPE FlexFabric 5900AF 48G 4XG 2QSFP+ Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey

FlexFabric 5900AF 48G 4XG 2QSFP+ Switch

Description

The HPE 5900 Switch Series are low-latency 1/10GbE data center top-of-rack (ToR) switches. Perfect for deployment at server access layer in large and medium sized enterprises. These switches may also be used in campus core/distribution layers where higher performance 40GbE connectivity is required with 10GbE links. Virtualized applications and server-to-server traffic require ToR switches that meet the needs for higher-performance server connectivity, convergence, virtual environment support, and low-latency. Optional Intelligent Management Center (IMC) Software Platform for network management. What's new - High 1/10GbE port density and low latency for demanding applications. - 10/100/1000/10000BASE-T and fiber support for data center deployments. - IRF support of nine switches simplifies management by up to 88%. - OpenFlow and SDN automate manual tasks and speed service delivery. Features Ultra-low-latency and Wire Speed for Demanding Applications - The HPE FlexFabric 5900 Switch Series provides high density 10/100/1000/10000BASE-T, or fiber ports for high-performance and flexible deployments. - All ports support full L2/L3 features, IPv4/IPv6 dual stack, OpenFlow and TRILL for high scalability and Software-defined Network (SDN) support. - Intelligent Resilient Fabric (IRF) for simpler management, faster re-convergence and business agility. High-Performance Data Center Switching - The HPE FlexFabric 5900 Switch Series delivers 1.28 Tbps switching capacity for the most demanding applications. - Supports up to 952 MPPS throughput for data intensive environments. - Low latency, under a 1.5 us 10GbE latency, provides increased performance. - Four 40GbE QSFP+ ports for blazing fast uplinks. Business Agility and Resilience with Comware 7 - The HPE FlexFabric 5900 Switch Series delivers IRF < 50 msec convergence time enabling faster application response times. - In Service Software Update (ISSU) enables high availability with updates accomplished without a reboot or power cycle, in the background. Simplicity and Lower TCO - The HPE FlexFabric 5900 Switch Series simplifies switch management by up to 88% with IRF. - No extra hidden cost with simple one license per switch for all OS features. - All switch ports are active and ready to use without need for activation licenses. - Automate tedious tasks with SDN and reclaim wasted resources.

Specifications

Management features
Multicast support	Yes
Switch type	Managed
Quality of Service (QoS) support	Yes
Switch layer	L3
Ports & interfaces
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
QSFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity	4
USB 2.0 ports quantity	1
Console port	RJ-45
Network
IGMP snooping	Yes
Auto-sensing	Yes
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	Yes
Virtual LAN features
VLAN support	Yes
Performance
Packet buffer memory	9 MB
Stackable	Yes
Memory type	SDRAM
Internal memory	2048 MB
Flash memory	512 MB
Technical details
Form factor	1U
Product colour	Grey
Stackable	Yes
Rack mounting	Yes
Data transmission
Throughput	250 Mpps
Latency (10 Gbps)	1.5 µs
Packet buffer memory	9 MB
MAC address table	128000 entries
Switching capacity	336 Gbit/s
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server, DHCP client
Multicast features
Multicast support	Yes
Memory
Packet buffer memory	9 MB
Memory type	SDRAM
Internal memory	2048 MB
Flash memory	512 MB
Design
Form factor	1U
Product colour	Grey
Stackable	Yes
Rack mounting	Yes
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	260 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	887 BTU/h
Weight & dimensions
Width	439.9 mm
Depth	460 mm
Height	43.7 mm
Weight	13 kg
