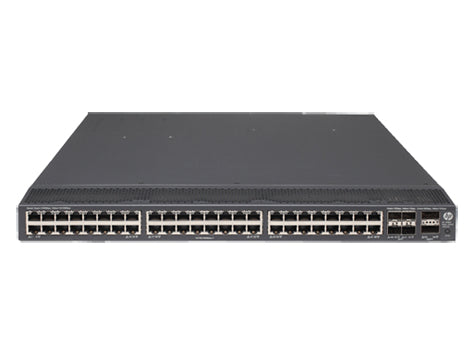

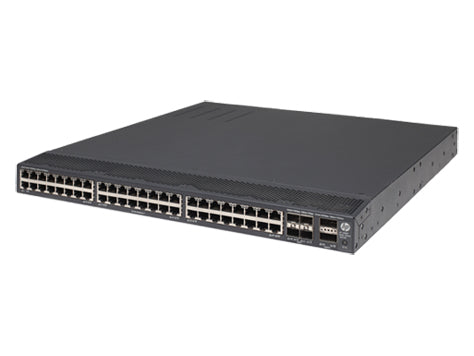

HPE FlexFabric 5900AF 48G 4XG 2QSFP+ Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey

HP 5900AF-48G-4XG-2QSFP+ Switch

Description

The HP 5900 Switch Series is a family of high-density, ultra-low latency, top-of-rack (ToR) switches. It is part of the HP FlexNetwork architecture's HP FlexFabric solution. Ideally suited for deployment at the server access layer of large enterprise data centers, the HP 5900 Switch Series is also powerful enough for deployment at the data center core layer of medium-sized enterprises. With the increase in virtualized applications and server-to-server traffic, customers now require ToR switch innovations that will meet their needs for higher-performance server connectivity, convergence of Ethernet and storage traffic, the capability to handle virtual environments, and ultra-low latency all in a single device.

Quality of Service (QoS)

• Powerful QoS features: Flexible classification: creates traffic classes based on access control lists (ACLs), IEEE 802.1p precedence, IP, and DSCP or Type of Service (ToS) precedence; supports filter, redirect, mirror, remark, and logging. Feature support: provides support for Strict Priority Queuing (SP), Weighted Fair Queuing (WFQ), Weighted Deficit Round Robin (WDRR), SP+WDRR together, configurable buffers, Explicit Congestion Notification (ECN), and Weighted Random Early Detection (WRED).


Data center optimized

• Flexible high port density: the HP 5900 Switch Series enables scaling of the server edge with 1 GbE and 10GbE ToR deployments to new heights with high-density 48-port solutions delivered in a 1RU design; the high server port density is backed by 40 GbE QSFP+ uplinks to deliver the availability of needed bandwidth for demanding applications; each 40 GbE QSFP+ port can also be configured as four 10GbE ports by using a 40-GbE-to-10GbE splitter cable


Manageability

• Full-featured console: provides complete control of the switch with a familiar CLI


Resiliency and high availability

• HP Intelligent Resilient Framework (IRF) technology: enables an HP FlexFabric to deliver resilient, scalable, and secured data center networks for physical and virtualized environments; groups up to four HP 5900 switches in an IRF configuration, allowing them to be configured and managed as a single switch with a single IP address; simplifies ToR deployment and management, reducing data center deployment and operating expenses


Layer 2 switching

• MAC-based VLAN: provides granular control and security; uses RADIUS to map a MAC address/user to specific VLANs


Layer 3 services

• Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network


Layer 3 routing

• Virtual Router Redundancy Protocol (VRRP) and VRRP Extended: allow quick failover of router ports

Specifications

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L3
Ports & interfaces
QSFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	4
USB 2.0 ports quantity	1
Console port	RJ-45
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Network
Auto-sensing	Yes
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	Yes
IGMP snooping	Yes
Data transmission
Throughput	250 Mpps
Latency (10 Gbps)	1.5 µs
Packet buffer memory	9 MB
MAC address table	128000 entries
Switching capacity	336 Gbit/s
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server, DHCP client
Multicast features
Multicast support	Yes
Design
Form factor	1U
Product colour	Grey
Stackable	Yes
Rack mounting	Yes
Performance
Memory type	SDRAM
Internal memory	2048 MB
Flash memory	512 MB
Packet buffer memory	9 MB
Stackable	Yes
Harmonized System (HS) code	85176990
Power
Power supply included	No
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	260 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	887 BTU/h
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	439.9 mm
Depth	460 mm
Height	43.7 mm
Weight	13 kg
Technical details
Form factor	1U
Product colour	Grey
Stackable	Yes
Rack mounting	Yes
Memory
Packet buffer memory	9 MB
Memory type	SDRAM
Internal memory	2048 MB
Flash memory	512 MB
Logistics data
Harmonized System (HS) code	85176990
