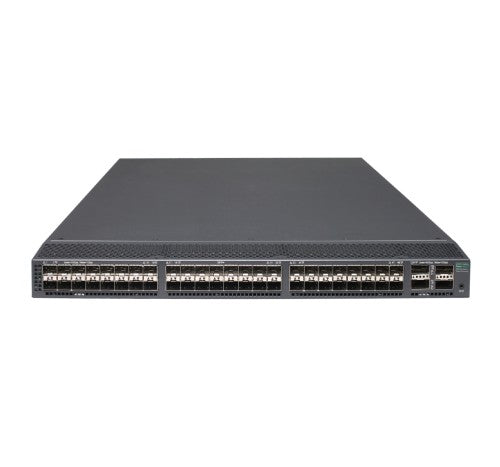

HPE FlexFabric 5900CP 48XG 4QSFP+ Back-to-Front AC Switch Bundle Managed L3 1U

FlexFabric 5900CP 48XG 4QSFP+ Back-to-Front AC Switch Bundle

Description

The HPE FlexFabric 5900CP Switch Series provides a converged, top-of-rack, data center switch architecture that offers wire once for FCoE converged environments. With 48 converged ports that support 1/10GbE and 4/8 FC, the FlexFabric 5900CP delivers versatile convergence for connecting FC, iSCSI and FC SANs.
Resilience and ease of management come hand–in-hand with the FlexFabric 5900CP. While IRF reduces management complexities by up to 88%, it also delivers <50 msec convergence time. You can rely on the FlexFabric 5900CP to lower TCO, while delivering business resilience and high availability.

Features

Wire Once Data Center Convergence with FCoE
- The HPE FlexFabric 5900CP Switch Series provides 48 converged ports supporting 1/10GbE and 4/8Gbps FC for increased flexibility of deployment.
- All 48 ports support LAN, iSCSI, NAS, FC and FC SANs, so that you can support diverse storage choices.
- Converged transceiver supporting 1/10GbE and 4/8/16Gbps FC allowing for future growth as well as backward compatibility.

High-Performance Data Center Switching
- The HPE FlexFabric 5900CP Switch Series delivers 1.28Tbps switching capacity for the most demanding applications.
- Supports up to 952 MPPS throughput for data intensive environments.
- Low latency, under a 1.5us 10GbE latency, provides business agility.
- Four 40GbE QSFP+ ports for blazing fast uplinks.

Business Agility and Resilience with Comware 7
- The HPE FlexFabric 5900CP Switch Series delivers IRF <50msec convergence time enabling faster applications response time.
- In Service Software Update (ISSU) enables high availability with updates accomplished without a reboot or power cycle, in the background.

Simplicity and Lower TCO
- The HPE FlexFabric 5900CP Switch Series simplifies switch management by up to 88% with IRF.
- No extra hidden cost with simple one license per switch for all OS features.
- All switch ports are active and ready to use without need for activation licenses.
- Automate tedious tasks with SDN and reclaim wasted resources.

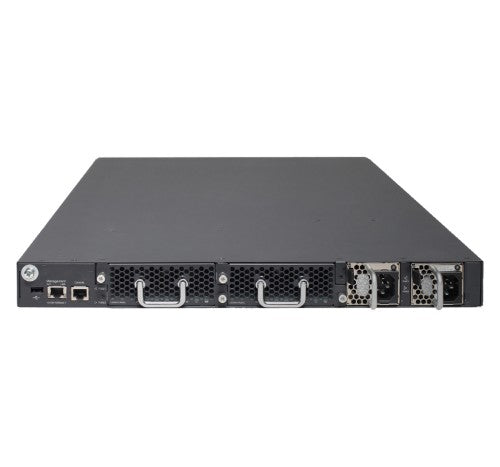

Bundle includes:
1 - JG838A HPE FlexFabric 5900CP 48XG 4QSFP+ Switch
2 - JC680A HPE 58x0AF 650W AC Power Supply
2 - JC682A HPE 58x0AF Back (Power Side) to Front (Port Side) Airflow Fan Tray

Specifications

Network
IGMP snooping	Yes
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3x
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Ethernet LAN data rates	1000,10000,40000 Mbit/s
10G support	Yes
IPv6 routes	8000
IPv4 routes	16000
Virtual LAN features
VLAN support	Yes
Performance
Packet buffer memory	9 MB
Stackable	Yes
Virtual stacking (units)	9
Memory type	SDRAM
Internal memory	2048 MB
Flash memory	512 MB
Technical details
Virtual stacking (units)	9
Form factor	1U
Stackable	Yes
Rack mounting	Yes
Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Switch layer	L3
Ports & interfaces
SFP+ module slots quantity	48
QSFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports type	No
USB 2.0 ports quantity	1
Console port	RJ-45
Data transmission
Throughput	952 Mpps
Latency (10 Gbps)	1.5 µs
Packet buffer memory	9 MB
MAC address table	128000 entries
Switching capacity	1280 Gbit/s
Jumbo frames support	Yes
Security
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS, TACACS+
Protocols
Routing protocols	BGP4+, OSPF, OSPFv2, OSPFv3, RIP-1, RIP-2, RIPng
Memory
Packet buffer memory	9 MB
Memory type	SDRAM
Internal memory	2048 MB
Flash memory	512 MB
Design
Form factor	1U
Stackable	Yes
Rack mounting	Yes
Airflow direction	Back-to-front airflow
Power
Power consumption (max)	260 W
Power supply included	No
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	887 BTU/h
Weight & dimensions
Width	439.9 mm
Depth	659.9 mm
Height	43.7 mm
Weight	13 kg
Other features
Ethernet LAN data rates	1000,10000,40000 Mbit/s
