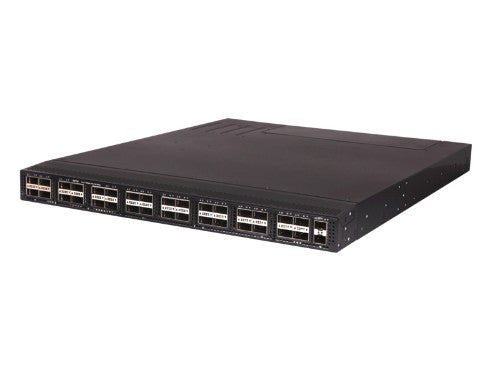

HPE FlexFabric 5950 Managed Fast Ethernet (10/100) Black

FlexFabric 5950, Remanufactured

Key Features

• HPE FlexFabric Network Analytics solution provides network visibility and all information to run the network at its optimal performance
• VXLAN and OVSDB supports network virtualization and overlay solutions
• IRF support of up to ten switches simplifies management by up to 88%
• OpenFlow and SDN automate manual tasks and speed service delivery

Description

The HPE FlexFabric 5950 Switch Series provides advanced features and high performance in a top-of-rack, data center switch architecture. Consisting of a 1U 32-port 100GbE QSFP28 switch, a fixed-port 48-port 25GbE SFP28 switch and a 4-slot chassis, the 5950 brings high density to a small footprint. While 10-unit IRF reduces management complexities by up to 88%, it also delivers <50 msec convergence time. You can rely on the FlexFabric 5950 Switch Series to improve switch utilization and lower TCO, while delivering business resilience and high availability.
High-Density, Advanced, Data Center Switches with HPE FlexFabric Network Analytics
The HPE FlexFabric 5950 Switch Series is a top-of-rack data center switch offering three form factor configurations: a 1RU 32-port 100GbE QSFP28, a 1RU 48-port 25GbE SFP28 with 8-port 100GbE QSFP28, or a 2RU 4-slot chassis for increased flexibility.
Each switch delivers 100GbE ports which may be split into four 25GbE ports or they can support 40GbE which can be split into four by 10GbE for a total of 128 25/10GbE ports.
The HPE 5950 Switch Series includes HPE FlexFabric Network Analytics which in conjunction with the HPE IMC Virtual Application Networking Fabric Manager delivers real time visibility of microburst network congestion which negatively impacts overall network operations and performance.
High-Performance Data Center Switching
The HPE FlexFabric 5950 Switch Series delivers up to 3.2 Tbps switching capacity for the most demanding applications.
It supports up to 3169 Mpps throughput for data-intensive environments.
Low latency, under a 1µs 100GbE latency, gives your business agility.
VXLAN support for network virtualization and overlay solutions for improved flexibility. Includes Open vSwitch Database (OVSDB) for dynamic VXLAN tunnel management.
Business Agility and Resilience with Comware 7
The HPE FlexFabric 5950 Switch Series delivers IRF with less than 50 msec convergence time enabling faster application response time.
IRF-based In Service Software Update (ISSU) enables high-availability updates occurring in the background without disrupting traffic.
Simplicity and Lower TCO
The HPE FlexFabric 5950 Switch Series simplifies switch management by up to 88% with 10-unit Intelligent Resilient Fabric (IRF).
No extra hidden cost with one license per switch for all OS features.
All switch ports are active and ready to use without need for activation licenses.
Automate tedious tasks with a Software-defined Network (SDN) and reclaim wasted resources.

Specifications

Network
IPv6 multicast entries	64000
IPv4 multicast entries	128000
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3x
Technical details
Product colour	Black
Noise level	78.2 dB
Management features
Switch type	Managed
Ports & interfaces
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	2
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
USB 2.0 ports quantity	1
Data transmission
Throughput	2796 Mpps
Latency (10 Gbps)	1 µs
MAC address table	136000 entries
Switching capacity	3200 Gbit/s
Security
Security algorithms	SNMP
Multicast features
IPv6 multicast entries	64000
IPv4 multicast entries	128000
Memory
Memory type	SDRAM / Flash
Internal memory	4000 MB
Flash memory	1000 MB
Design
Product colour	Black
Performance
Noise level	78.2 dB
Memory type	SDRAM / Flash
Internal memory	4000 MB
Flash memory	1000 MB
Power
Power consumption (max)	495 W
Power supply included	Yes
AC input voltage	90 - 264 V
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 95%
Heat dissipation	955 BTU/h
Weight & dimensions
Width	540 mm
Depth	43.6 mm
Height	44 mm
Weight	17 kg
