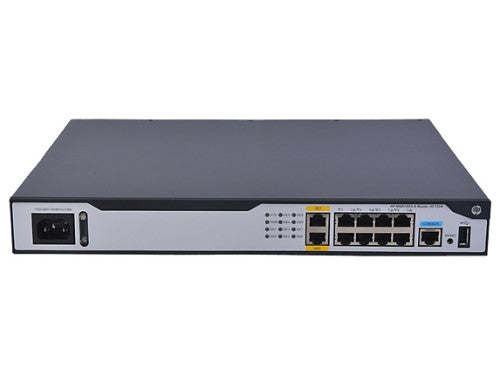

HPE FlexNetwork MSR1003 8 AC wired router Gigabit Ethernet Grey

FlexNetwork MSR1003 8 AC Router

Description

The HPE FlexNetwork MSR1000 Router Series delivers high-performance, small branch routing up to 500 Kpps in a cost-optimized modular form factor. Featuring integrated routing, switching, security, and SIP with no additional licensing, you can boost your service delivery while simplifying the management of your corporate WAN. With Comware v7 and a convenient modular design, the MSR1000 brings enhanced performance and advanced services, as well as a choice of connectivity options to provide flexible, open standards and lasting investment protection with lower CAPEX and OPEX for small-sized branches.

Features

Reduces Complexity and Simplifies Your Network
- The HPE FlexNetwork MSR1000 Router Series simplifies your network through integrated routing, switching, security, and voice, and combines the flexibility of modular upgrades to deliver high-performance small branch routing.
- Makes administration easier with HPE Intelligent Management Center (IMC) Software.
- Reduces management complexity with zero-touch deployment (ZTP) and Dynamic VPN.

Enhances Time to Service and Branch Performance
- The HPE FlexNetwork MSR1000 Router Series offers high performance routing with up to 500 Kpps forwarding and 170 Mbps of IPSec encryption throughput to meet bandwidth requirements of branch traffic.
- Supports branch requirements with a comprehensive feature set to improve service delivery.
- Eases the transition to the cloud with integrated security.

Increases Your Return on Your Investment
- The HPE FlexNetwork MSR1000 Router Series is a compact modular platform with a wide range of connectivity options that enables the right design for your needs.
- Reduces your TCO through open standards, power and space savings, and energy-efficient hardware.
- Deploy advanced features with no additional licensing.

Boosts Agility and Resiliency
- The HPE FlexNetwork MSR1000 Router Series provides branch service and business continuity with 4G/LTE and 3G WAN.
- Gives you an open standards approach to your network infrastructure.
- With advanced hardware architecture, you get reliable, high-performance functionality with multi-core processors.

Specifications

Ethernet LAN features
Ethernet LAN data rates	10,100,1000 Mbit/s
Memory
Flash memory	256 MB
Internal memory	512 MB
Performance
Internal memory type	DDR3
Flash memory	256 MB
Internal memory	512 MB
Built-in processor	Yes
Processor frequency	667 MHz
Heat dissipation	65 BTU/h
WAN connection
Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	Yes
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3
Ethernet LAN data rates	10,100,1000 Mbit/s
Throughput	0.5 Gbit/s
Ethernet interface type	Gigabit Ethernet
DSL features
ADSL	Yes
ADSL2	Yes
ADSL2+	Yes
SHDSL	Yes
Management features
Web-based management	No
Quality of Service (QoS) support	Yes
Ports & interfaces
USB ports quantity	1
USB version	2.0
Ethernet LAN (RJ-45) ports	8
Protocols
Routing protocols	BGP, BGP4, MPLS, OSPF, OSPFv3, RIP, RIP-1, RIP-2
DHCP server	Yes
DHCP client	Yes
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
Technical details
Built-in processor	Yes
Processor frequency	667 MHz
Product colour	Grey
Heat dissipation	65 BTU/h
Security
Firewall	Yes
Security algorithms	3DES, 128-bit WEP, 192-bit AES, 256-bit AES, DES, MD5, SHA-1
Access Control List (ACL)	Yes
Features
Internal memory type	DDR3
Flash memory	256 MB
Internal memory	512 MB
Built-in processor	Yes
Processor frequency	667 MHz
Heat dissipation	65 BTU/h
Design
Product colour	Grey
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	30 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	360 mm
Depth	300 mm
Height	44.2 mm
Weight	3.15 kg
