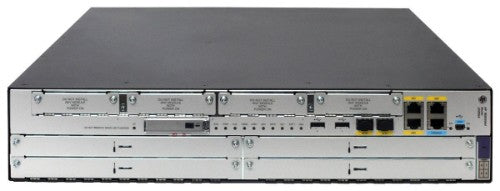

HPE FlexNetwork MSR3044 wired router Gigabit Ethernet Black

FlexNetwork MSR3044 Router

Description

The HPE MSR3000 Router Series feature a modular design that delivers unmatched application services for medium to large branch offices. These routers offer Gigabit switching, provide an enhanced PCI bus, ship with the Comware v7 OS, provide a full-featured resilient routing platform including IPv6 and MPLS, offer up to 13 Mpps forwarding capacity and 14.3 Gb/s of IPSec VPN encrypted throughput to ensure high performance with concurrent services.

With the Open Application Platform module, the MSR3000 Router Series offers a wide range of virtualized applications. Its distributed architecture and high reliability also strengthen the resiliency of medium to large branches.

The MSR3000 series provides an agile, flexible network infrastructure that enables you to quickly adapt to changing business requirements while delivering integrated concurrent services on a single, easy-to-manage platform.

Features

Reduces Complexity and Simplifies Your Network
- The HPE MSR3000 Router Series simplifies your network through integrated routing, switching, security, and voice, and combines the flexibility of modular upgrades to deliver high-performance medium-to-large branch routing.
- Makes administration easier with HPE Intelligent Management Center (IMC) Software.
- Reduces management complexity with zero-touch deployment (ZTP) and Dynamic VPN.

Enhances Time to Service and Branch Performance
- The HPE MSR3000 Router Series offers high performance routing with up to 13 Mpps forwarding and 14.3 Gbps of IPSec encryption throughput to meet bandwidth requirements of branch traffic.
- Supports branch services with a comprehensive feature set and eases the cloud transition with integrated security.
- Satisfies medium to large branches with advanced hardware architecture and high port density.

Increases Your Return on Investment
- The HPE MSR3000 Router Series is a modular platform with a wide range of connectivity options that enables the right design for your needs.
- Reduces your TCO through open standards, power and space savings, and energy-efficient hardware.
- Deploy advanced features with no additional licensing.

Boosts Agility and Resiliency
- The HPE MSR3000 Router Series provides Open Application Platform module that supports HPE Alliance One applications such as WAN acceleration and Microsoft Skype for Business (Lync).
- Delivers an open standards approach to your network infrastructure.
- With advanced hardware architecture and FPBA modules, you get reliable, high-performance functionality with multi-core processors.

Specifications

Ethernet LAN features
Ethernet LAN data rates	10,100,1000 Mbit/s
Memory
Flash memory	256 MB
Internal memory	2048 MB
Performance
Internal memory type	DDR3
Flash memory	256 MB
Internal memory	2048 MB
Built-in processor	Yes
Processor frequency	1000 MHz
Heat dissipation	172 BTU/h
WAN connection
SFP WAN	Yes
Ethernet WAN	Yes
3G/4G USB modem compatibility	Yes
Network
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3
Ethernet LAN data rates	10,100,1000 Mbit/s
Multicast support	Yes
VLAN support	Yes
Ethernet interface type	Gigabit Ethernet
Mobile network
3G standards	HSPA, WCDMA
4G standard	LTE
Management features
Quality of Service (QoS) support	Yes
Ports & interfaces
USB ports quantity	2
USB version	2.0
Ethernet LAN (RJ-45) ports	3
Smart Interface Card (SIC) slots quantity	4
SFP module slots quantity	2
Number of console ports	1
Protocols
Routing protocols	BGP4, OSPF, RIP-2, RIPng, VRRP
Management protocols	SNMPv1, SNMPv2, SNMPv3
Technical details
Rack mounting	Yes
Built-in processor	Yes
Processor frequency	1000 MHz
Product colour	Black
Heat dissipation	172 BTU/h
Security
Authentication method	TACACS+, RADIUS
Security algorithms	128-bit AES, 192-bit AES, 256-bit AES
Access Control List (ACL)	Yes
Features
Internal memory type	DDR3
Flash memory	256 MB
Internal memory	2048 MB
Built-in processor	Yes
Processor frequency	1000 MHz
Heat dissipation	172 BTU/h
Design
Rack mounting	Yes
Product colour	Black
Rack capacity	2U
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power over Ethernet (PoE)	Yes
Power consumption (typical)	100 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 5000 m
Weight & dimensions
Width	440 mm
Depth	480 mm
Height	88.1 mm
