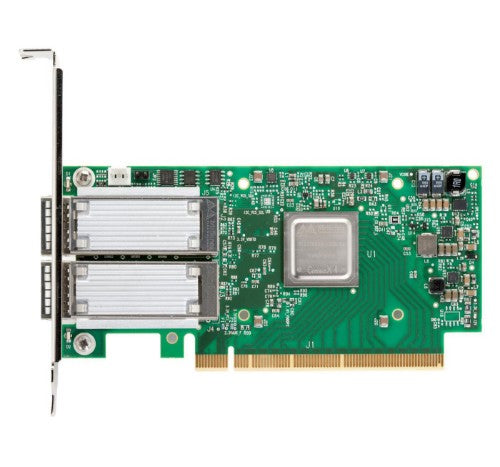

HPE InfiniBand EDR/Ethernet 100Gb 2-port 841QSFP28 Internal Ethernet / Fiber 100000 Mbit/s

InfiniBand EDR/Ethernet 100Gb 2-port 841QSFP28 Adapter

Description

Are you looking for an HPE EDR InfiniBand Adapter for your HPE ProLiant XL and HPE ProLiant DL Gen9 and Gen10 server families? The HPE InfiniBand EDR and 100 Gb Ethernet adapters are designed for customers who deploy high performance computing (HPC) systems with their HPE ProLiant XL and DL Gen9 and Gen10 servers in the data center. The HPE InfiniBand EDR and 100 Gb Ethernet adapters include HPE InfiniBand EDR 100Gb 1-port 841QSFP28 Adapter, HPE InfiniBand EDR/Ethernet 100Gb 2-port 841QSFP28 Adapter, HPE InfiniBand EDR/Ethernet 100Gb 1-port 840QSFP28 Adapter, and HPE InfiniBand EDR/Ethernet 100Gb 2-port 840QSFP28 Adapter. The 1-port 841QSFP28 card supports InfiniBand, and the rest of the other cards support both InfiniBand and Ethernet. Combined with EDR InfiniBand or 100 Gb Ethernet switches, they deliver low latency and up to 100Gbps bandwidth, ideal for performance-driven server and storage clustering applications in HPC and enterprise data centers.

What's new
- The 841QSFP28 adapters are based on Mellanox® ConnectX-5 technology.
- The 840QSFP28 adapters are based on Mellanox ConnectX-4 technology.

Features
- Low Latency, High-Bandwidth Adapters for EDR InfiniBand and 100 Gb Ethernet Connectivity
- The HPE InfiniBand EDR and 100 Gb Ethernet adapters are supported on the HPE ProLiant XL and HPE ProLiant DL Gen9 and Gen10 servers. They deliver up to 100Gbps bandwidth and a sub-microsecond low latency for demanding high performance computing (HPC) workloads.
- The adapter includes multiple offload engines that speed communications by delivering a low CPU overhead for increasing throughput.
- HPE InfiniBand EDR/Ethernet 100Gb 1-port and 2-port 841QSFP28 Adapters support MPI tag matching and rendezvous offloads, along with adaptive routing on reliable transport.

Specifications

Ports & interfaces
Internal	Yes
PCI version	3.0
Fiber ports quantity	2
Fiber optic connector	QSFP28
Interface	Ethernet / Fiber
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	100000 Mbit/s
Network
Networking standards	IEEE 1588, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bm
Maximum data transfer rate	100000 Mbit/s
Design
Internal	Yes
Component for	Server
Weight & dimensions
Width	215.9 mm
Depth	50.8 mm
Height	177.8 mm
Weight	450 g
Technical details
Harmonized System (HS) code	85176990
Logistics data
Harmonized System (HS) code	85176990
Other features
Harmonized System (HS) code	85176990
