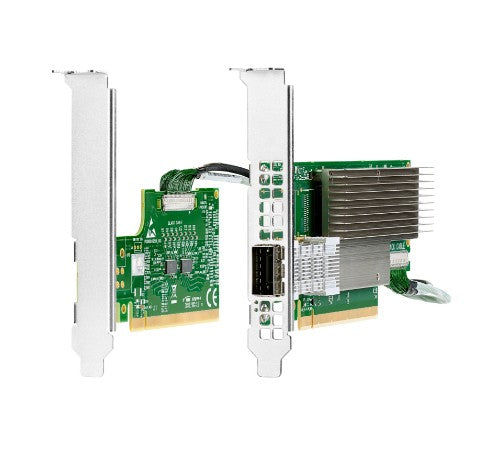

HPE InfiniBand HDR PCIe3 Auxiliary Card with 150mm Cable Kit

InfiniBand HDR PCIe3 Auxiliary Card with 150mm Cable Kit

Reasons To Buy

Low-Latency, High-Bandwidth InfiniBand Connectivity

HPE HDR InfiniBand adapters deliver up to 200Gbps bandwidth and a sub-microsecond latency for demanding HPC workloads.
The HPE InfiniBand HDR100 adapters, combined with HDR switches and HDR cables, are aimed at simplified infrastructure by reducing the number of required switches for a given 100Gbps InfiniBand fabric.
HPE HDR InfiniBand adapters are supported on the HPE Apollo XL and HPE ProLiant DL Gen10 and Gen10 Plus servers.

Offloading Mechanisms

HPE HDR InfiniBand adapters include multiple offload engines that speed up communications by delivering a low CPU overhead for increasing throughput.
HPE HDR InfiniBand adapters support MPI tag matching and rendezvous offloads, along with adaptive routing on reliable transport.

Description

Are you looking for extremely high-bandwidth and very low latency communications for your HPE Apollo System and HPE ProLiant DL rack mount server families? The HPE HDR InfiniBand and Ethernet adapters are designed for customers who deploy high performance computing (HPC) systems with their HPE ProLiant XL and HPE ProLiant DL Gen10 and Gen10 Plus servers in the data center. The HPE InfiniBand HDR/HDR100 and Ethernet adapters are available as stand up cards or in the OCP 3.0 form factor, equipped with 1 port or 2 ports. Combined with HDR InfiniBand switches, they deliver low latency and up to 200Gbps bandwidth, ideal for performance-driven server and storage clustering applications in HPC and enterprise data centers.

What is new supporting point:
The HDR InfiniBand and Ethernet adapters are now available in the OCP 3.0 form factor with support for HPE iLO shared network port in Ethernet mode.
The HDR InfiniBand and Ethernet adapters for HPE ProLiant Gen10 Plus servers are based on standard Mellanox ConnectX-6 technology.

Specifications

Ports & interfaces
Fiber optic connector	QSFP56
Host interface	PCI Express
Technical details
Compatible products	HPE Apollo/Integrity/SGI
Chassis type	Standup LP
Weight (imperial)	0.141 kg (0.311 lbs)
Design
Compatible products	HPE Apollo/Integrity/SGI
Component for	Server
Weight & dimensions
Width	177.8 mm
Depth	218.4 mm
Height	62 mm
Weight	140 g
Performance
Compatible products	HPE Apollo/Integrity/SGI
Other features
Cable type	DAC and AOC
Chassis type	Standup LP
Weight (imperial)	0.141 kg (0.311 lbs)
Dimensions (W x D x H) (imperial)	218.4 x 177.8 x 62 mm (8.6 x 7 x 2.44")
