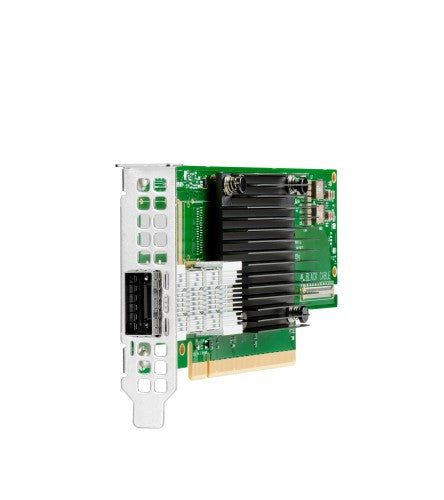

HPE InfiniBand HDR100/Ethernet 100Gb 2-port QSFP56 PCIe3 x16 MCX653106A-ECAT Adapter

InfiniBand HDR100/Ethernet 100Gb 2-port QSFP56 PCIe3 x16 MCX653106A-ECAT Adapter

Reasons To Buy

Low-Latency, High-Bandwidth InfiniBand Connectivity

HPE HDR InfiniBand adapters deliver up to 200Gbps bandwidth and a sub-microsecond latency for demanding HPC workloads.
The HPE InfiniBand HDR100 adapters, combined with HDR switches and HDR cables, are aimed at simplified infrastructure by reducing the number of required switches for a given 100Gbps InfiniBand fabric.
HPE HDR InfiniBand adapters are supported on the HPE Apollo XL and HPE ProLiant DL Gen10 and Gen10 Plus servers.

Offloading Mechanisms

HPE HDR InfiniBand adapters include multiple offload engines that speed up communications by delivering a low CPU overhead for increasing throughput.
HPE HDR InfiniBand adapters support MPI tag matching and rendezvous offloads, along with adaptive routing on reliable transport.

Description

Are you looking for extremely high-bandwidth and very low latency communications for your HPE Apollo System and HPE ProLiant DL rack mount server families? The HPE HDR InfiniBand and Ethernet adapters are designed for customers who deploy high performance computing (HPC) systems with their HPE ProLiant XL and HPE ProLiant DL Gen10 and Gen10 Plus servers in the data center. The HPE InfiniBand HDR/HDR100 and Ethernet adapters are available as stand up cards or in the OCP 3.0 form factor, equipped with 1 port or 2 ports. Combined with HDR InfiniBand switches, they deliver low latency and up to 200Gbps bandwidth, ideal for performance-driven server and storage clustering applications in HPC and enterprise data centers.

What is new supporting point:
The HDR InfiniBand and Ethernet adapters for HPE ProLiant Gen10 Plus servers are based on standard Mellanox ConnectX-6 technology.
The HDR InfiniBand and Ethernet adapters are now available in the OCP 3.0 form factor with support for HPE iLO shared network port in Ethernet mode.

Specifications

Ports & interfaces
Internal	Yes
PCI version	3.0
Fiber ports quantity	2
Fiber optic connector	QSFP56
Interface	Ethernet / Fiber
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	100 Mbit/s
Technical details
Compatible products	HPE Apollo/Integrity/SGI
Chassis type	Standup LP
Weight (imperial)	0.231 kg (0.509 lbs)
Harmonized System (HS) code	85176990
Network
Networking standards	IEEE 1588v2, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bm
Ethernet LAN data rates	10000,25000,40000,50000,100000 Mbit/s
Maximum data transfer rate	100 Mbit/s
Design
Compatible products	HPE Apollo/Integrity/SGI
Internal	Yes
Component for	Server
Weight & dimensions
Width	355.6 mm
Depth	609.6 mm
Height	254 mm
Weight	230 g
Performance
Compatible products	HPE Apollo/Integrity/SGI
Logistics data
Harmonized System (HS) code	85176990
Other features
Cable type	DAC and AOC
Ports quantity	2
Chassis type	Standup LP
Weight (imperial)	0.231 kg (0.509 lbs)
Dimensions (W x D x H) (imperial)	609.6 x 355.6 x 254 mm (24 x 14 x 10")
Harmonized System (HS) code	85176990
