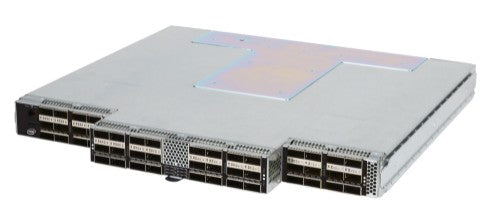

HPE Intel Omni-Path Architecture 100Gb 48-port Managed Switch

Intel Omni-Path Architecture 100Gb 48-port Managed Switch

Reasons To Buy

High Bandwidth, Low Latency High Speed Fabric Connectivity for HPC Deployments

The HPE Apollo 100Gb 48-port Intel Omni-Path Unmanaged Switch provides 100 Gb node to node connectivity for increased performance.
Latency efficient error detection and correction for network communication resiliency.
Traffic flow optimization for throughput efficiency.

Optimize High Speed Switch Ports

The HPE Apollo 100Gb 48-port Intel Omni-Path Unmanaged Switch is an integrated OPA switch supporting 24 100Gbps downlink ports and 24 QSFP28 uplink ports for optimal 1:1 non-oversubscription deployments.
Up to two switches per chassis are supported for dual rail configuration providing twice the bandwidth.

Lower Cost of High Speed Fabric Deployments

The HPE Apollo 100Gb 48-port Intel Omni-Path Unmanaged Switch supports FatTree and its variations lower the number of cables, improves system reliability and enables easier maintenance.
Provides flexibility of copper and optical cables.
The switch is unmanaged from configuration standpoint and is monitored, discovered and cooled thru chassis controller.

Description

Does your high performance computing (HPC) data center require high speed fabric infrastructure? The HPE Apollo 100GbE 48-port Intel Omni-Path Architecture Unmanaged Switch is an integrated option in the HPE Apollo 6000 Gen10 System with 24 downlink ports and 24 uplink ports. It cost-effectively supports large HPC clusters and delivers an exceptional set of high-speed connectivity features and functions. It is ideal for customers who deploy HPC clusters based on the HPE Apollo 6000 Gen10 Systems using the Intel Omni-Path technology.

Specifications

Management features
Switch type	Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	USB
QSFP28 ports quantity	48
Switching optical modules type	100 Gigabit Ethernet
Optical fiber
Switching optical modules type	100 Gigabit Ethernet
Data transmission
Throughput	9600 Mpps
MAC address table	8192 entries
Protocols
Supported protocols	Intel Omni-Path
Design
Form factor	1U
Product colour	Metallic
Rack mounting	Yes
Performance
Media types supported	Support QSFP28 passive copper and active optical cables
Built-in processor	Yes
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	238 W
Number of power supply units	2
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Weight (imperial)	6.67 kg (14.7 lbs)
Dimensions (W x D x H) (imperial)	439.4 x 426.7 x 43.2 mm (17.3 x 16.8 x 1.7")
Supported protocols	Intel Omni-Path
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 85%
Weight & dimensions
Width	439.6 mm
Depth	426.7 mm
Height	43.2 mm
Weight	6.67 kg
Weight (imperial)	6.67 kg (14.7 lbs)
Dimensions (W x D x H) (imperial)	439.4 x 426.7 x 43.2 mm (17.3 x 16.8 x 1.7")
Technical details
Form factor	1U
Product colour	Metallic
Rack mounting	Yes
Supported protocols	Intel Omni-Path
Built-in processor	Yes
System requirements
Media types supported	Support QSFP28 passive copper and active optical cables
