HPE | SKU:
726998-B21
Sold out

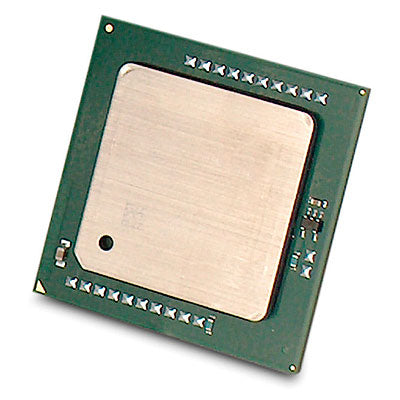

HPE Intel Xeon E5-2685 v3 processor 2.6 GHz 30 MB L3
€3,279.69
Unit price
/
Unavailable
Shipping calculated at checkout.
HPE Intel Xeon E5-2685 v3 processor 2.6 GHz 30 MB L3 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Intel Xeon E5-2685 v3, 2.6 GHz, 30 MB, 22 nm, 120 W
Description
Options, accessories, services and support for all your HP and Compaq products.Specifications
| Processor | |
|---|---|
| Processor base frequency | 2.6 GHz |
| Memory bandwidth supported by processor (max) | 68 GB/s |
| Thermal Design Power (TDP) | 120 W |
| Processor cache | 30 MB |
| Processor model | E5-2685V3 |
| Processor threads | 12 |
| System bus rate | 9.6 GT/s |
| Processor operating modes | 64-bit |
| VID Voltage Range | 0.65 - 1.30 V |
| Processor boost frequency | 3.3 GHz |
| Number of QPI links | 2 |
| Bus type | QPI |
| Component for | Server/workstation |
| Processor lithography | 22 nm |
| Processor family | Intel Xeon E5 v3 |
| Processor cores | 12 |
| Processor socket | LGA 2011 (Socket R) |
| Processor cache type | L3 |
| Memory | |
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory bandwidth supported by processor (max) | 68 GB/s |
| Memory channels | Quad-channel |
| ECC | Yes |
| Graphics | |
| On-board graphics card | No |
| Power | |
| Thermal Design Power (TDP) | 120 W |
| VID Voltage Range | 0.65 - 1.30 V |
| Technical details | |
| Intel TSX-NI | No |
| Intel® Secure Key | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | No |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0 |
| Scalability | 2S |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Demand Based Switching | Yes |
| Embedded options available | No |
| CPU configuration (max) | 2 |
| Thermal Design Power (TDP) | 120 W |
| Market segment | Server |
| Processor cache type | L3 |
| Features | |
| Thermal Design Power (TDP) | 120 W |
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0 |
| Scalability | 2S |
| Embedded options available | No |
| CPU configuration (max) | 2 |
| Market segment | Server |
| Processor special features | |
| Intel® OS Guard | Yes |
| Intel TSX-NI | No |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Demand Based Switching | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Operational conditions | |
| Tcase | 84.5 °C |
| Other features | |
| Intel® Virtualization Technology (Intel® VT) | No |
| CPU configuration (max) | 2 |
| Compatibility | HP BL460c Gen9 |
