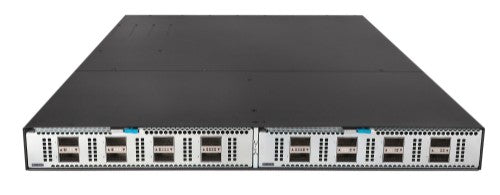

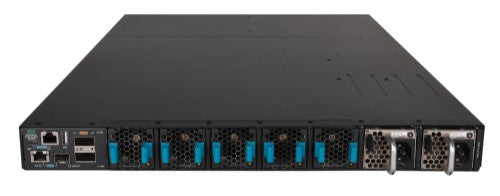

HPE JQ075AR network switch Managed Black

Networking Comware Switch 2-slot 5945 Refurbished

Description

The HPE Networking Comware Switch Series 5945 are high-density, ultra-low-latency, and top-of-rack (ToR) switches ideally suited for deployment at the aggregation or server access layer of large enterprise data centers. The HPE 5945 Series is also powerful enough for deployment at the core layer of medium-sized enterprises. With the increase in virtualized applications and server-to-server traffic, customers require spine and ToR switches that can meet their throughput requirements. With the HPE 5945 Series, data centers can now support up to 100GbE per port, allowing high performance server connectivity and the capabilities to handle virtual environments. The HPE Networking Comware Switch Series 5945 provides choices that fit your budget and IT environment by cut-through with ultra-low-latency and wire speed, offering different port density and speeds of 100GbE/40GbE/25GbE/10GbE spine/ToR connectivity.

What is new supporting point:
IPv4 and IPv6 support with full L2/L3 features and PTP 1588V2 for Boundary Clock, Transparent Clock, End to End/Peer to Peer Transparent Clock.
HPE Aruba Networking IMC Orchestrator and Analyzer for enhanced network operations with orchestration, automation, and analytical capabilities.
Greater flexibility with two/four slot options for varying use cases such as MACsec 256-bit encryption, high-performance DC leaf, storage networking and NVMe storage.
New made in USA TAA-compliant SKUs offer heightened security via manual and automated source code analysis to address common programming issues, easing concerns about "made in China" products.
High-density 100GbE/40GbE/25GbE/10GbE spine/top-of-rack (ToR) connectivity and Cut-through switching with low-latency and wire speed performance.
New 32G/16G support for storage networking and ROCE V1/V2 for RDMA High-Performance computing.VXLAN, EVPN, and MPLS support for virtualized environments.

Specifications

Management features
Switch type	Managed
Ports & interfaces
SFP module slots quantity	2
Network
10G support	Yes
Data transmission
Throughput	2024 Mpps
Packet buffer memory	32 MB
Switching capacity	3600 Gbit/s
Design
Product colour	Black
Stackable	Yes
Rack mounting	Yes
Performance
Physical stacking (units)	10
Internal memory	8000 MB
Flash memory	1024 MB
Packet buffer memory	32 MB
Stackable	Yes
Power
Power consumption (max)	650 W
AC input voltage	100 - 240 V
Power consumption (typical)	650 W
DC input voltage	48 - 60 V
Operational conditions
Heat dissipation	1392 BTU/h
Weight & dimensions
Width	44.2 mm
Depth	440 mm
Height	660 mm
Weight	10.4 kg
Technical details
Physical stacking (units)	10
Product colour	Black
Stackable	Yes
Rack mounting	Yes
Memory
Packet buffer memory	32 MB
Internal memory	8000 MB
Flash memory	1024 MB
