HPE | SKU:
786617-B21
Sold out

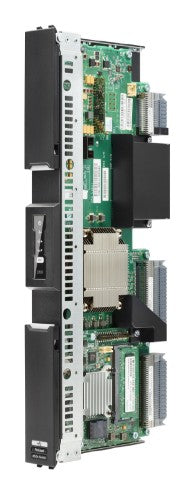

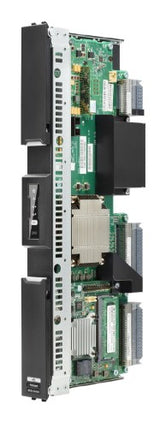

HPE Moonshot-45Gc network switch module Gigabit Ethernet
€6,578.63
Unit price
/
Unavailable
Shipping calculated at checkout.
HPE Moonshot-45Gc network switch module Gigabit Ethernet is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Moonshot-45Gc Switch Module
Description
The HPE Moonshot-45Gc Switch Module is designed to provide high speed, low-latency connectivity while dramatically reducing cost and complexity of deploying solutions at scale. The 45Gc Switch Module, together with the HPE Moonshot-6SFP+ Uplink Module, provides 1GbE network connections to cartridges within the HPE Moonshot 1500 chassis and 10Gb connectivity external to the chassis. Up to two switch modules are supported in each chassis. IRFmay be used to eliminate the cost of TOR switches and provide failover in the event of a switch or uplink failure.Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae |
| Jumbo frames support | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Quality of Service (QoS) support | Yes |
| Number of VLANs | 4094 |
| Access Control List (ACL) | Yes |
| Data transmission | |
| Switching capacity | 480 Gbit/s |
| Number of VLANs | 4094 |
| MAC address table | 128000 entries |
| Performance | |
| Quality of Service (QoS) support | Yes |
| Access Control List (ACL) | Yes |
| Power | |
| Power consumption (typical) | 60 W |
| Operational conditions | |
| Storage temperature (T-T) | -30 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 9144 m |
| Weight & dimensions | |
| Weight | 1.71 kg |
| Width | 141 mm |
| Depth | 376 mm |
| Height | 37 mm |
| Technical details | |
| MAC address table | 128000 entries |
| Ethernet interface type | Gigabit Ethernet |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Access Control List (ACL) | Yes |
| Security | |
| Access Control List (ACL) | Yes |
