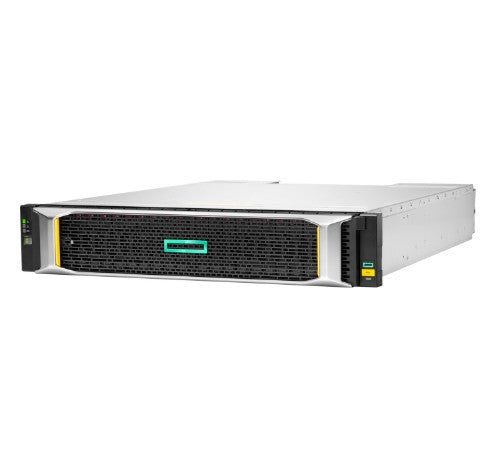

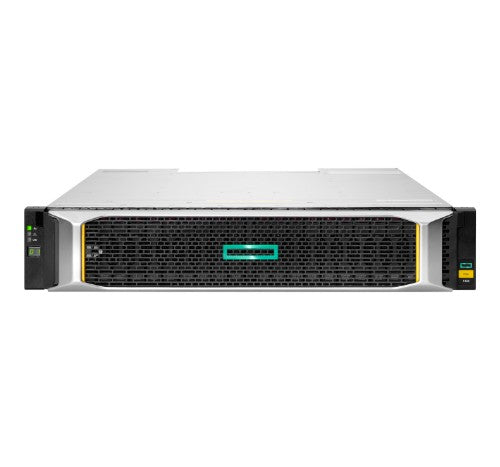

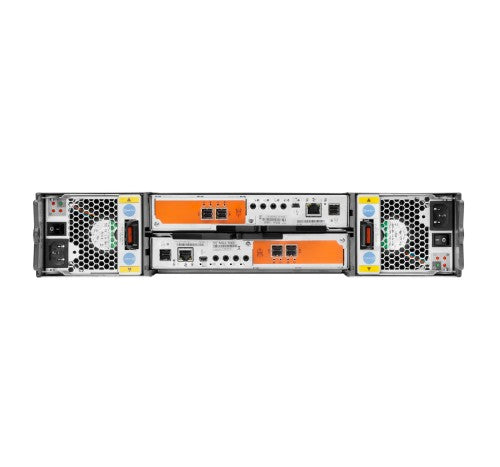

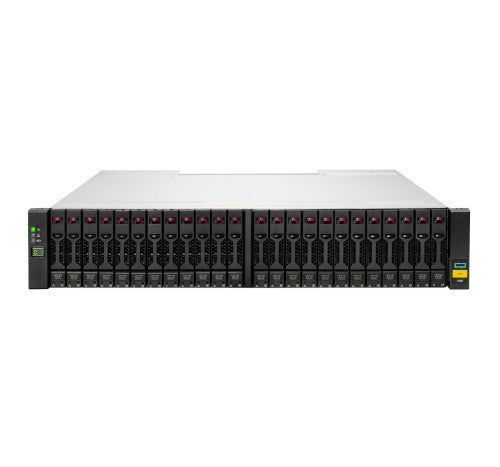

HPE MSA 1060 disk array 0 TB Rack (2U)

MSA 1060 16Gb Fibre Channel SFF Storage

Description

Need a modern shared storage array which is flash-ready and affordable with what’s left of a small budget?

The HPE MSA 1060 Storage brings affordable flash storage down to the most price sensitive customers. Designed to meet entry-level storage requirements, the HPE MSA 1060 Storage is a good fit for budget constrained customers. With one of the lowest entry price points in the Hewlett Packard Enterprise Storage portfolio and field-proven HPE ProLiant compatibility, the HPE MSA 1060 Storage is the platform of choice for smaller IT workloads. The HPE MSA 1060 Storage features 10G-BaseT iSCSI, FC and SAS host interface connectivity at previously unattainable entry price points. The MSA 1060 allows users to take advantage of the latest storage technologies while also providing a balance between performance and budget.

Features

Accelerate Applications Affordably
- The HPE MSA 1060 Storage is capable of delivering over 150,000 IOPS for affordable application acceleration for small to medium-sized businesses and deployments.
- The MSA 1060 platform delivers allows users to define and deploy hybrid or flash configurations from day one and grow as needs change.

MSA’s 'Set and Forget' Data Services does not Require a Dedicated Storage Administrator to Manage
- The HPE MSA 1060 Storage is easy to install, easy to use, easy to maintain, even for an IT generalist. Administrators will find the MSA 1060’s new Storage Management Utility intuitive and easy to navigate.
- HPE MSA’s automated tiering engine dynamically responds to workload changes so you don’t have to, insuring the hottest data will be moved to the fastest media automatically and in real-time.

Leverage Data Protection Features to Keep your Business Running in the Event of a Disaster
- The HPE MSA 1060 Storage delivers virtualized snapshot technology making data protection and instant recovery a snap.
- Remote replication via Fibre Channel (FC) or iSCSI facilitates affordable disaster recovery solution.

Flexible, Modular Architecture that Facilitates Growth into the Future
- The HPE MSA1060 Storage supports a combination of 3.5 inch LFF and 2.5 inch SFF base enclosures to a maximum of 3 (4 including base system) enclosures.
- Start small and scale as needed with any combination of SSDs, Enterprise SAS HDDs or Midline SAS HDDs.

Specifications

Storage
Total installed storage capacity	0 TB
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	24
Storage drives installed	No
Maximum supported storage capacity	368.64 TB
RAID levels	0, 1, 5, 6, 10
Data transfer rate	16 Gbit/s
Supported storage drive interfaces	SAS
Storage drive sizes supported	2.5"
Ports & interfaces
USB connectivity	No
Host ports	4
Technical details
Device class	Small & Medium Business
Chassis type	Rack (2U)
Storage mirroring	Yes
SAN backup support	Yes
Insight manager support	No
Clustering support	No
Data transfer rate	16 Gbit/s
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84717020
Design
Device class	Small & Medium Business
Chassis type	Rack (2U)
Performance
Device class	Small & Medium Business
Maximum number of controllers supported	2
Hard drive
RAID levels	0, 1, 5, 6, 10
Power
Number of power supply units	2
AC input voltage	100 - 230 V
AC input frequency	50 - 60 Hz
System requirements
Server operating systems supported	Windows Server 2016, Windows Server 2019
Linux operating systems supported	Yes
Weight & dimensions
Width	445 mm
Depth	508 mm
Weight	5 kg
Height	89 mm
Sustainability
Sustainability certificates	ENERGY STAR
Other features
Controller interface type	FC
Storage mirroring	Yes
SAN backup support	Yes
Insight manager support	No
Clustering support	No
Logistics data
Harmonized System (HS) code	84717020
