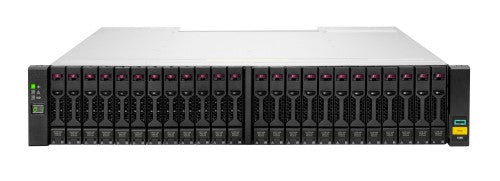

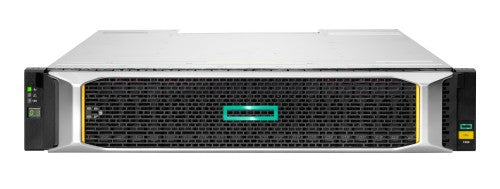

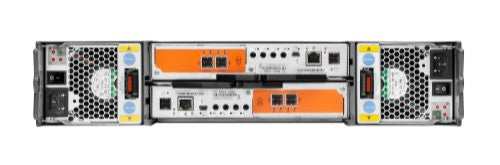

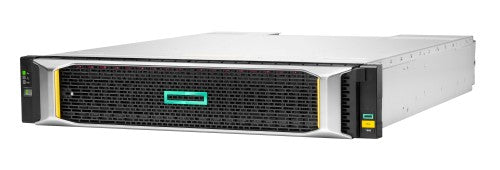

HPE MSA 1060 SFF 2x12Gb SAS 2-port Controller Storage Array

MSA 1060 SFF 2x12Gb SAS 2-port Controller Storage Array

Reasons To Buy

Accelerate Applications Affordably

The HPE MSA 1060 Storage is capable of delivering over 154,000 IOPS for affordable application acceleration for small to medium-sized businesses and deployments. ^[1]
The MSA 1060 platform delivers allows users to define and deploy hybrid or flash configurations from day one and grow as needs change.

MSA’s "Set and Forget" Data Services Do Not Require a Dedicated Storage Administrator to Manage

The HPE MSA 1060 Storage is easy to install, easy to use, and easy to maintain, even for an IT generalist. Administrators will find the MSA 1060’s new Storage Management Utility intuitive and easy to navigate.
HPE MSA’s automated tiering engine dynamically responds to workload changes so you don’t have to, ensuring the hottest data will be moved to the fastest media automatically and in real-time.

Leverage Data Protection Features to Keep your Business Running in the Event of a Disaster

The HPE MSA 1060 Storage delivers virtualized snapshot technology making data protection and instant recovery a snap.
Remote replication via Fibre Channel (FC) or iSCSI facilitates an affordable disaster recovery solution.

Flexible, Modular Architecture that Facilitates Growth into the Future

The HPE MSA 1060 Storage solution supports a mixture of 3.5-inch LFF and 2.5-inch SFF 2060 expansion enclosures for a maximum of three enclosures (four total including the array).
Start small and scale as needed with any combination of SSDs, Enterprise SAS HDDs, or Midline SAS HDDs.

Description

Need a modern shared storage array that is flash-ready and affordable with what’s left of a small budget? The HPE MSA 1060 Storage brings affordable flash storage down to the most price-sensitive customers. Designed to meet entry-level storage requirements, the HPE MSA 1060 Storage is a good fit for budget-constrained customers. With one of the lowest entry price points in the HPE Storage portfolio and field-proven HPE ProLiant compatibility, the HPE MSA 1060 Storage is the platform of choice for smaller IT workloads. The HPE MSA 1060 Storage features 10G-BaseT iSCSI, FC, and SAS host interface connectivity at previously unattainable entry price points. The MSA 1060 allows users to take advantage of the latest storage technologies while also providing a balance between performance and budget.

What is new supporting point:
All MSA Gen6 and Gen7 storage array models are now fully certified for use with HPE Morpheus VM Essentials Software.
Customer configurable HPE MSA 1060 storage array models and storage media options available through the HPE Smart Choice program.
MSA Gen6 HDD and SSD media options supporting an increase in MSA 1060 raw capacity of up to a maximum of 2.95 PB.

Specifications

Storage
Supported storage drive types	HDD & SSD
Maximum supported storage capacity	737 TB
Storage drive type	Up to 24 SFF HDD and/or SSD on all 1060 array models
Self-Encrypting Drive (SED)	Yes
Ports & interfaces
Fibre Channel	Yes
Technical details
Chassis type	Rack (2U)
Weight (imperial)	4.99 kg (11 lbs)
Storage drive controller	2x 12 Gb SAS 2-port Controllers
Expansion description	24 drive bay SFF 2060 drive enclosure or 12 drive bay LFF 2060 drive enclosure (add up to 3)
Sustainability certificates	ENERGY STAR
Design
Chassis type	Rack (2U)
Hard drive
Storage drive type	Up to 24 SFF HDD and/or SSD on all 1060 array models
System requirements
Server operating systems supported	Windows Server 2022, Windows Server 2016, Windows Server 2019, Yes
Linux operating systems supported	Yes
Weight & dimensions
Width	89 mm
Depth	445 mm
Weight	5 kg
Height	508 mm
Sustainability
Sustainability certificates	ENERGY STAR
Other features
Form factor	SFF
Compatible operating systems	Windows Server 2022; Windows Server 2019; Windows Server 2016; VMWare vSphere™ 6.7; Red Hat Linux 8; SUSE™ SLES 15; See HPE SPOCK for more details.
Weight (imperial)	4.99 kg (11 lbs)
Storage drive controller	2x 12 Gb SAS 2-port Controllers
Expansion description	24 drive bay SFF 2060 drive enclosure or 12 drive bay LFF 2060 drive enclosure (add up to 3)
