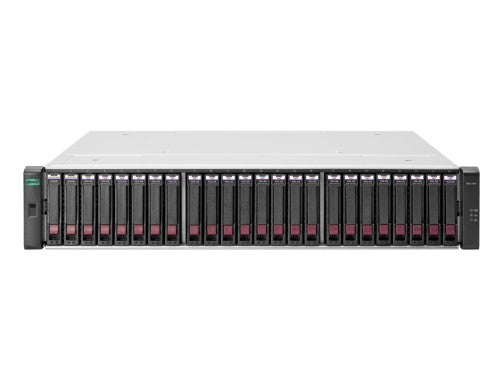

HPE MSA 2040 SAN disk array 6.2 TB Rack (2U)

MSA 2040 SAN DC w/ 4x200GB SFF SSD 6x900GB 10K SFF HDD 1 Performance Auto Tier LTU 6.2TB Bundle

Description

Changing storage needs for server customers now requires greater levels of performance and functionality at a lower cost of ownership. The next generation HPE MSA 2040 Storage arrays raises the bar & uniquely addresses HPE ProLiant customers' shared storage and data protection needs, reduces TCO while dramatically increasing performance using technologies such as Solid State Drives, Snap and Volume copy, Replication and SEDs. The MSA 2040 Storage arrays are positioned to provide an excellent value for customers needing increasing performance to support initiatives such as consolidation and virtualization. The MSA 2040 delivers this performance by leveraging new controller architecture with a new processor, four ports with 4GB cache per controller & using drive technologies such as SSDs. The MSA 2040 Storage ships standard with 64 Snapshots and Volume Copy enabled for increased data protection and allow replication with optional Remote Snap software between arrays (FC or iSCSI only).

Features

Simple: Flexible Architecture, Easy to Setup, Easy to Manage
HPE MSA 2040 Storage deploys single or dual controllers depending on high-availability and budgetary requirements.

Select disk enclosures with Large or Small Form Factor drives –choice of High-performance Solid State Drives, Enterprise-class SAS or SAS Midline drives or Self-Encrypting Drives (SED) based on application, performance and budget needs.

The integrated setup and management tools for MSA are easy to manage for HPE ProLiant/BladeSystem IT managers.

Fast: MSA 2040 Sets New Standards for $/IOPS in Entry SAN
HPE MSA 2040 Storage has a high-performance Converged SAN controller and SAS controller offer 4x the performance of most other entry-level SAN arrays.

4-port Converged SAN controller supporting Fibre Channel and iSCSI and a SAS Controller with 4GB Cache translating into better application response time and ability to support more virtualized environments.

SSD support with integrated “wear gauge” helps improves application performance and allows customers to reduce their operating costs by reducing foot prints and power consumptions.

Self-Encrypting Drives (SEDs) designed to safeguard critical personal and business information and to comply with regulatory mandates.

Futureproof: 2x the Bandwidth and the First Entry SAN with 16 Gb FC
HPE MSA 2040 Storage has the options of 8 Gb/16 Gb FC, 1 Gb/10GbE iSCSI and 12 Gb SAS to match the configuration needs of infrastructure.

The 4th generation of MSA’s unique Data-in-Place upgrades provides investment protection.

Host ports upgradeable by SFPS (8 Gb/16 Gb FC) or (1 GB/10GbE iSCSI) allows customers to manage their total cost of ownership lower.

ENERGY STAR Certified: MSA 2040 features Increased Power with Increased Power Efficiency
ENERGY STAR certified power supplies will lead to energy consumption efficiencies translated into savings or regulatory rebates for customers.

Specifications

Storage
Total installed storage capacity	6.2 TB
Installed storage drive type	HDD+SSD
Number of storage drives installed	10
Supported storage drive types	HDD & SSD
Number of storage drives supported	24
Storage drive interface	Serial Attached SCSI (SAS)
Storage drive size	2.5"
HDD speed	10000 RPM
Storage drives installed	Yes
Maximum supported storage capacity	76.8 TB
RAID levels	0, 1, 3, 5, 6, 10, 50
Ports & interfaces
USB connectivity	No
Technical details
Device class	Small & Medium Business
Internal	Yes
Chassis type	Rack (2U)
Design
Internal	Yes
Chassis type	Rack (2U)
Performance
Device class	Small & Medium Business
Hard drive
RAID levels	0, 1, 3, 5, 6, 10, 50
System requirements
Other operating systems supported	VMware ESX/ESXi 5.0
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012
Linux operating systems supported	Yes
