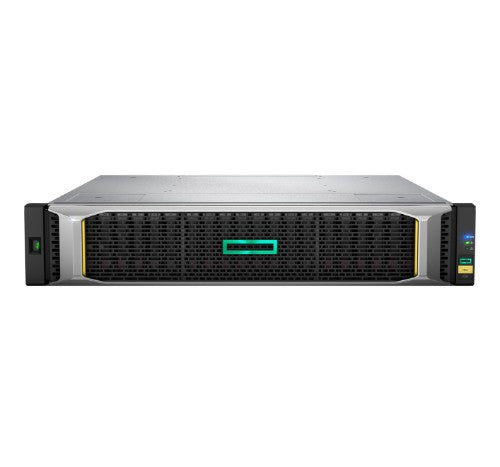

HPE MSA 2052 disk array 1.6 TB Rack (2U)

MSA 2052 SAS Dual Controller SFF Storage

Description

Looking for seriously simple and affordable flash storage? The hybrid flash HPE MSA 2052 Storage system is designed for affordable application acceleration ideal for small and remote office deployments. But do not let the low cost fool you. HPE MSA 2052 Storage gives you the combination of simplicity, flexibility and advanced features you many not expect in an entry-priced array. Start with 1.6 TB of flash capacity included and scale as needed with any combination of solid state disks (SSD), high-performance enterprise, or lower-cost midline SAS-based drives. HPE MSA Storage has been the industry-leading entry storage SAN platform for the past eight years, with nearly 500,000 systems sold worldwide. Delivering performance in excess of 200,000 IOPS, the MSA 2052 Storage system can save you up to 40% with an all-inclusive software suite and 1.6 TB of flash capacity included. It’s seriously simple and affordable flash storage to help you get the most performance for the lowest cost.

Features

Affordable Application Acceleration
- The HPE MSA 2052 performs in excess of 200,000 IOPS.
- The HPE MSA 2052 delivers 2x more performance than the previous generation.
- Save 40% on HPE MSA 2052 with all-inclusive software and 1.6 TB of SSD capacity included.

Advanced Data Services with no Experience Required
- Easy to install, easy to use, easy to maintain—no storage expertise necessary.
- Automated tiering dynamically responds to workload changes, so you don’t have to.

Keep Your Business Running with Expanded Data Protection Features
- New virtualized snapshot technology makes data protection and instant recovery a snap.
- Remote replication with FC and iSCSI supports affordable disaster recovery.

Grow Flexibly now and Into the Future
- Data-in-place upgrades protect drive investments and eliminate data migrations.
- Start small and scale as needed with any combination of SSD, Enterprise or Midline SAS drives.

Specifications

Storage
Total installed storage capacity	1.6 TB
Installed storage drive type	SSD
Number of storage drives installed	2
Supported storage drive types	HDD & SSD
Number of storage drives supported	24
Storage drive interface	Serial Attached SCSI (SAS)
Storage drive capacity	800 GB
Storage drive size	2.5"
Storage drives installed	Yes
Maximum supported storage capacity	614 TB
RAID levels	0, 1, 5, 6, 10
Ports & interfaces
USB connectivity	No
Technical details
Device class	Small & Medium Business
Internal	Yes
Chassis type	Rack (2U)
Design
Internal	Yes
Chassis type	Rack (2U)
Performance
Device class	Small & Medium Business
Hard drive
RAID levels	0, 1, 5, 6, 10
Power
Number of power supply units	2
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Redundant power supply (RPS) support	Yes
Power consumption (typical)	344 W
System requirements
Other operating systems supported	Yes
Server operating systems supported	Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Linux operating systems supported	Yes
Weight & dimensions
Width	495 mm
Depth	447 mm
Weight	18.4 kg
Height	89 mm
