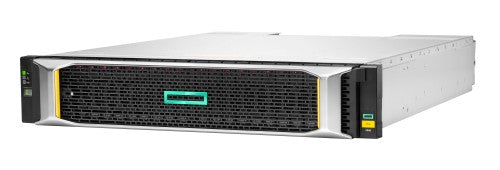

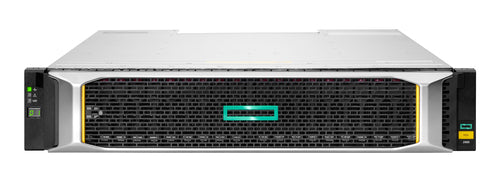

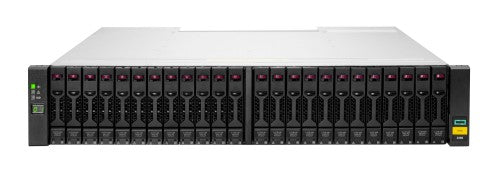

HPE MSA 2060 16Gb Fibre Channel SFF 12TB Flash Bundle

MSA 2060 16Gb Fibre Channel SFF 12TB Flash Bundle

Reasons To Buy

HPE MSA’s "Set It and Forget It" Data Services Do Not Require a Dedicated Storage Administrator

The HPE MSA 2060 Storage is easy to install, easy to use, and easy to maintain, even for an IT generalist. Administrators will find the MSA 2060’s new Storage Management Utility intuitive and easy to navigate.
HPE MSA’s automated tiering engine dynamically responds to workload changes so you don’t have to, ensuring the hottest data will be moved to the fastest media automatically and in real time.

Flexible, Modular Architecture That Facilitates Growth into the Future

The HPE MSA 2060 Storage solution supports a mixture of 3.5-inch LFF and 2.5-inch SFF expansion enclosures for a maximum of nine enclosures (10 total including the array).
Start small and scale as needed with any combination of SSDs, Enterprise SAS HDDs, or Midline SAS HDDs.

Accelerate Applications Affordably

The HPE MSA 2060 Storage is capable of delivering up to 395,000 IOPS for affordable application acceleration for small to medium-sized businesses. ^[1]
The HPE MSA 2060 Storage allows users to define and deploy hybrid or flash storage configurations from day one and grow as their needs change.

Leverage Data Protection Features to Keep Your Business Running in the Event of a Disaster

The HPE MSA 2060 Storage delivers virtualized snapshot technology, making data protection and instant recovery a snap.
Remote replication via Fibre Channel (FC) or iSCSI facilitates an affordable disaster recovery solution.
Encrypted SSDs and HDDs with local key management can be deployed to deliver a secure, encrypted hybrid flash array.

Description

Is your company looking for easy-to-use, affordable, and high-performance shared storage? The HPE MSA 2060 Storage is a flash-ready hybrid storage system designed to deliver hands-free, affordable application acceleration for small and remote office deployments. Don’t let the low cost fool you. It gives you the combination of simplicity, flexibility, and advanced features you may not expect in an entry-priced array. Start small and scale as needed with any combination of solid state drives (SSDs), high-performance Enterprise SAS HDDs, or lower-cost Midline SAS HDDs. With the ability to deliver up to 395,000 IOPS, the new HPE MSA 2060 is up to 80% faster than its prior generation with ample horsepower for even the most demanding workloads. ^[1]

What is new supporting point:
All MSA Gen6 and Gen7 storage array models are now fully certified for use with HPE Morpheus VM Essentials Software.
MSA Gen6 HDD and SSD media options supporting an increase in MSA 2060 raw capacity of up to a maximum of 7.37 PB.
Customer configurable HPE MSA 2060 storage array models and storage media options available through the HPE Smart Choice program.
HPE Smart Choice MSA Gen6 storage array bundles with up to 240 TB of raw storage capacity included, supporting 16 Gb Fibre Channel, 10 GbE iSCSI, and 12 Gb SAS host connectivity.

Specifications

Storage
Total installed storage capacity	0.96 TB
Installed storage drive type	SSD
Number of storage drives installed	12
Supported storage drive types	HDD & SSD
Number of storage drives supported	24
Storage drive capacity	960 GB
Storage drives installed	Yes
Maximum supported storage capacity	1762.56 TB
Storage drive type	Bundled with 12x 960 GB SAS RI SFF SSD drives; Add up to 12x additional SFF HDD and/or SSD drives per array model
Supported storage drive interfaces	SAS
Ports & interfaces
Fibre Channel	Yes
Host ports	8
Technical details
Chassis type	Rack (2U)
Weight (imperial)	4.99 kg (11 lbs)
Storage mirroring	No
SAN backup support	Yes
Insight manager support	No

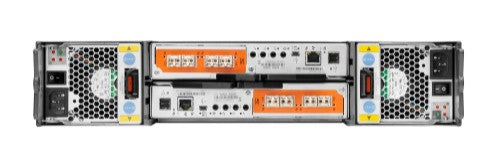

Storage drive controller	2 per array, 4-ports each (8-ports total)
Expansion description	24 drive bay 2060 SFF drive enclosure and/or 12 drive bay 2060 LFF drive enclosure (add up to 9)
Clustering support	Yes
Sustainability certificates	ENERGY STAR
Design
Chassis type	Rack (2U)
Hard drive
Storage drive type	Bundled with 12x 960 GB SAS RI SFF SSD drives; Add up to 12x additional SFF HDD and/or SSD drives per array model
System requirements
Server operating systems supported	Windows Server 2022, Windows Server 2016, Windows Server 2019, Yes
Linux operating systems supported	Yes
Weight & dimensions
Width	89 mm
Depth	445 mm
Weight	5 kg
Height	508 mm
Sustainability
Sustainability certificates	ENERGY STAR
Other features
Compatible operating systems	Windows Server 2022 Windows Server 2019 Windows Server 2016 VMWare vSphere 6.7 Red Hat Linux 8 SuSE SLES 15
Weight (imperial)	4.99 kg (11 lbs)
Storage mirroring	No
SAN backup support	Yes
Insight manager support	No
Storage drive controller	2 per array, 4-ports each (8-ports total)
Expansion description	24 drive bay 2060 SFF drive enclosure and/or 12 drive bay 2060 LFF drive enclosure (add up to 9)
Clustering support	Yes
