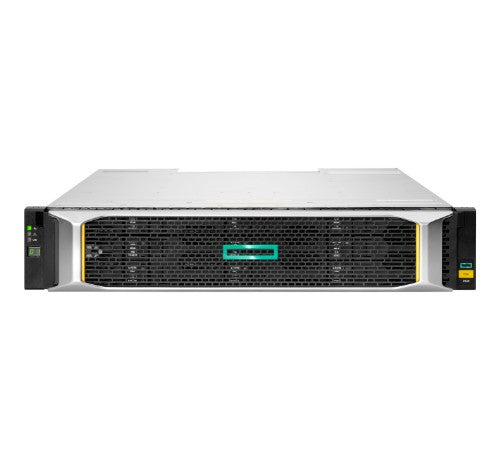

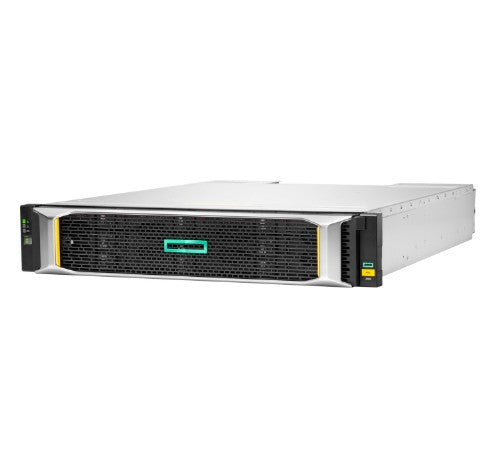

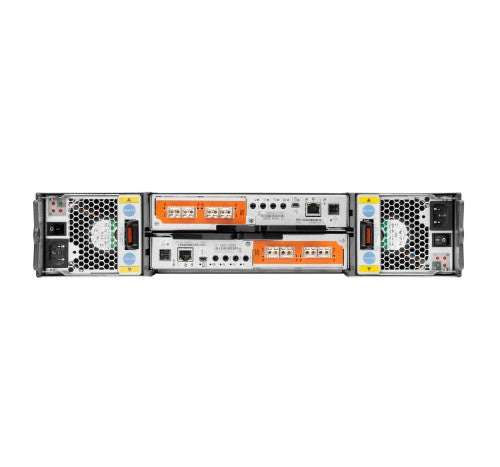

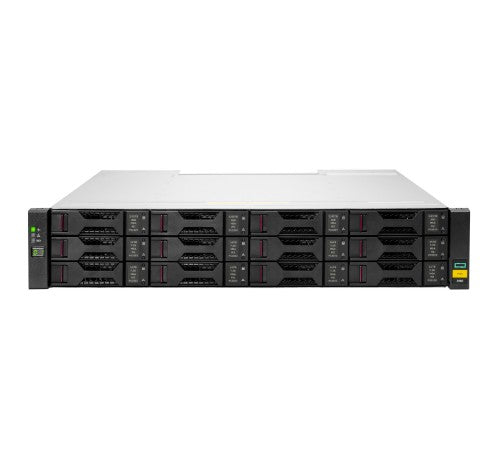

HPE MSA 2060 disk array 0 TB Rack (2U)

MSA 2060 12Gb SAS LFF Storage

Description

Is your company looking for easy to use, affordable, high-performance shared storage?

The HPE MSA 2060 Storage is a flash-ready hybrid storage system designed to deliver hands-free, affordable application acceleration for small and remote office deployments. Don’t let the low cost fool you. It gives you the combination of simplicity, flexibility, and advanced features you may not expect in an entry-priced array. Start small and scale as needed with any combination of solid state drives (SSDs), high-performance Enterprise SAS HDDs, or lower-cost Midline SAS HDDs. With the ability to deliver 325,000 IOPS, the new HPE MSA 2060 is up to 32% faster than its prior generation with ample horsepower for even the most demanding workloads.

Features

Accelerate Applications Affordably
- The HPE MSA 2060 is capable of delivering over 325,000 IOPS for affordable application acceleration for small to medium-sized businesses.
- The MSA 2060 allows users to define and deploy hybrid or flash storage configurations day one and grow as their needs change.

MSA’s 'Set and Forget' Data Services does not Require a Dedicated Storage Administrator to Manage
- The HPE MSA 2060 Storage is easy to install, easy to use, easy to maintain, even for an IT generalist. Administrators will find the MSA 2060’s new Storage Management Utility intuitive and easy to navigate.
- MSA’s automated tiering engine dynamically responds to workload changes so you don’t have to, insuring the hottest data will be moved to the fastest media automatically and in real-time.

Leverage Data Protection Features to Keep your Business Running in the Event of a Disaster
- The HPE MSA 2060 Storage delivers virtualized snapshot technology making data protection and instant recovery a snap.
- Remote replication via Fibre Channel (FC) or iSCSI facilitates affordable disaster recovery solution.
- Encrypted SSDs and HDDs with local key management can be deployed to deliver a secure, encrypted hybrid flash array.

Flexible, Modular Architecture that Facilitates Growth into the Future
- The HPE MSA 2060 Storage supports a mixture of 3.5 inch LFF and 2.5 inch SFF expansion enclosures for a maximum of 9 (10 including base system) enclosures.
- Start small and scale as needed with any combination of SSDs, Enterprise SAS or MidLine SAS HDDs.

Specifications

Storage
Total installed storage capacity	0 TB
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	12
Storage drives installed	No
Maximum supported storage capacity	1920 TB
RAID levels	0, 1, 5, 6, 10
Data transfer rate	12 Gbit/s
Supported storage drive interfaces	SAS
Storage drive sizes supported	3.5"
Ports & interfaces
USB connectivity	No
Host ports	8
Technical details
Device class	Small & Medium Business
Chassis type	Rack (2U)
Storage mirroring	Yes
SAN backup support	Yes
Data transfer rate	12 Gbit/s
Harmonized System (HS) code	84717020
Design
Device class	Small & Medium Business
Chassis type	Rack (2U)
Performance
Device class	Small & Medium Business
Maximum number of controllers supported	2
Hard drive
RAID levels	0, 1, 5, 6, 10
Power
Number of power supply units	2
AC input voltage	100 - 230 V
AC input frequency	50 - 60 Hz
Redundant power supply (RPS) support	Yes
System requirements
Other operating systems supported	Yes
Server operating systems supported	Windows Server 2016, Windows Server 2019
Linux operating systems supported	Yes
Weight & dimensions
Width	445 mm
Depth	508 mm
Weight	5 kg
Height	89 mm
Other features
Controller interface type	SAS
Storage mirroring	Yes
SAN backup support	Yes
Logistics data
Harmonized System (HS) code	84717020
