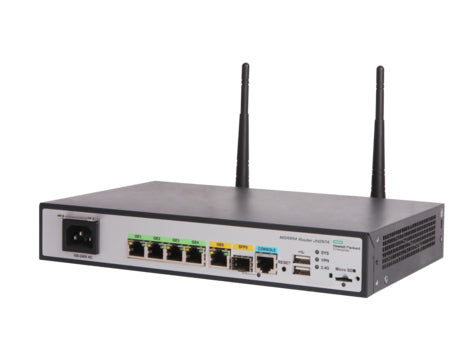

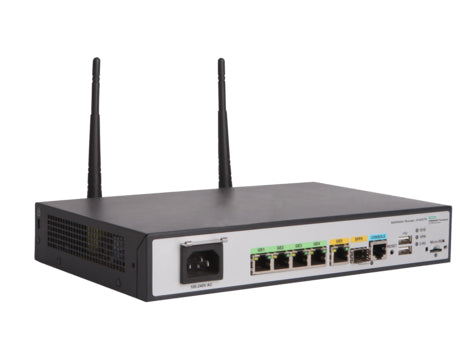

HPE MSR954-W 1GbE SFP (WW) 2GbE-WAN 4GbE-LAN Wireless 802.11n CWv7 wireless router Gigabit Ethernet Single-band (2.4 GHz) Grey

MSR954-W 1GbE SFP (WW) 2GbE-WAN 4GbE-LAN Wireless 802.11n CWv7 Router

Description

The HPE MSR95x Router Series delivers high-performance, small branch routing in a single, cost-optimized form factor. Featuring integrated routing, switching, wireless, security, and SIP with no additional licensing, these routers can boost your service delivery while simplifying the management of your corporate WAN.

The MSR95x Router provides for flexible deployment models with zero-touch provisioning and LTE connectivity. With Comware v7 and fiber connections, the MSR95x also brings the enhanced performance and advanced services available on modular routers to provide investment protection.

Features

Reduces Complexity and Simplifies Your Network
- The HPE MSR95x Router Series provides a Converged Infrastructure (CI) with integrated routing, switching, security, voice, and cellular WAN delivering high-performance small branch routing.
- Makes administration easier with HPE Intelligent Management Center (IMC) Software.
- Reduces management complexity with zero-touch deployment (ZTP) and ADVPN.
- Delivers increased flexibility across all environments with Comware v7 OS across multiple routers.

Enhances Time to Service and Branch Performance
- The HPE MSR95x Router Series offers high-performance routing with up to 300 Kpps forwarding.
- Simplifies your network with OpenFlow and zero-touch deployment.
- Supports branch services with a comprehensive feature set, including IPv4 and IPv6 routing, MPLS, QoS, NAT, and VPN services.
- Deploys rich features with Comware v7 security and dual gigabit WAN ports that support fiber and copper connections.

Increases Your Return on Your Investment
- The HPE MSR95X Router Series is a compact fixed-port platform with an extensive range of models and accessories to enable the right design for your business.
- Reduces your TCO through open standards, power and space savings, and energy-efficient hardware.
- Deploy advanced features with no additional licensing.

Boost Agility and Resiliency
- The HPE MSR95x Router Series delivers branch service and business continuity with dual gigabit WAN, 4G/LTE and 3G WAN, and built-in WLAN.
- With advanced hardware architecture, the MSR95X Router Series provides reliable, high-performance functionality.
- Gives you an open standards approach to your network infrastructure.

Specifications

Wireless LAN features
Bandwidth (first)	2.4 GHz
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN features
Ethernet WAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
Processor frequency	800 MHz
Maximum memory card size	64 GB
Compatible memory cards	SD
Built-in processor	Yes
WAN connection
Ethernet WAN	Yes
Network
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10,100,1000 Mbit/s
Ports & interfaces
USB port	Yes
USB 2.0 ports quantity	2
Maximum memory card size	64 GB
Ethernet LAN (RJ-45) ports	4
Compatible memory cards	SD
Design
Product colour	Grey
Features
Processor frequency	800 MHz
Built-in processor	Yes
Harmonized System (HS) code	85176990
Power
Power consumption (typical)	22 W
Weight & dimensions
Width	266 mm
Weight	1 kg
Height	43.6 mm
Depth	161 mm
Logistics data
Harmonized System (HS) code	85176990
Other features
Bandwidth (first)	2.4 GHz
