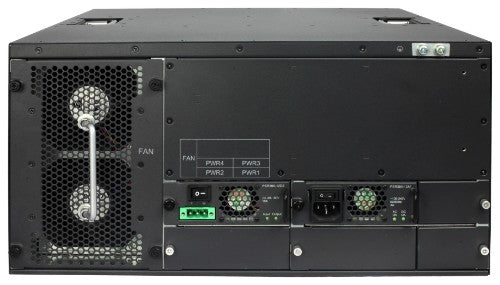

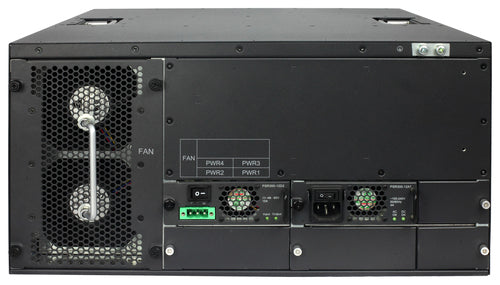

HPE Networking Comware MSR4080 Router Chassis

Networking Comware MSR4080 Router Chassis

Key Features

• 2 MPU (Main Processing Unit) slots
• 1 SPU (Service Processing Unit) slot
• 8 HMIM slots
• 4 Power Supply slots

Reasons To Buy

Reduces Complexity and Simplifies Your Network

The HPE Networking Comware Router Series MSR4000 simplifies your network through integrated routing, switching, security, voice, and VPN, and combines the flexibility of modular upgrades to deliver high-performance large branch routing.
Makes administration easier with HPE Intelligent Management Center (IMC) Software.
Reduces management complexity with Zero-Touch Provisioning deployment (ZTP) and Dynamic VPN.

Enhances Time to Service and Branch Performance

The HPE Networking Comware Router Series MSR4000 offers high-performance routing with up to 36 Mpps forwarding and 28 Gbps of IPSec encryption throughput to meet the bandwidth demands of the branch.
Supports branch services with a comprehensive feature set and eases the cloud transition with integrated security.
Delivers powerful aggregation capacity and high port density to satisfy the largest branches.
These routers also support HPE Open Application Platform (OAP) modules to deliver integrated industry-leading HPE AllianceOne partner applications such as virtualization, unified communications and collaboration (UC&C), and application optimization capabilities.
The MSR4000 series provides a full-featured, resilient routing platform, including IPv6 and Multiprotocol Label Switching (MPLS), with up to 36 Mpps forwarding capacity and 28 Gbps of IPSec Virtual Private Networks (VPN) encrypted throughput.

Increases Your Return on Investment

The HPE Networking Comware Router Series MSR4000 is a modular platform with a wide range of connectivity options that enables the right design for your needs.
Reduces your TCO through open standards, power and space savings, and energy-efficient hardware.
Deploy advanced features with no additional licensing.
The MSR4000 Series provides an agile, flexible network infrastructure that enables you to quickly adapt to your changing business requirements while delivering integrated concurrent services on a single, easy-to-manage platform.

Boosts Large Branch Agility and Resiliency

The HPE Networking Comware Router Series MSR4000 is built on distributed architecture with separate hardware data and control planes for increased resiliency.
Facilitates high reliability with 4G/LTE and 3G WAN, dual MPUs, redundant power supplies.
Gives you an open standards approach to networking with the Open Application Platform module by supporting HPE AllianceOne applications such as WAN acceleration and Microsoft Skype for Business (Lync).

Description

The HPE Networking Comware Router Series MSR4000 delivers high-performance large branch routing with up to 36 Mpps in a cost-optimized form factor. Featuring integrated routing, switching, security, VPN, and SIP with no additional licensing, you can boost your service delivery while simplifying the management of your corporate WAN. The MSR4000 Series leverages separated data and control planes, dual main processing units (MPUs), and support for up to four power supplies. The routers provide a full-featured, resilient routing platform with the latest multicore CPUs, offer 10 Gigabit SFP+ integrated, provide an enhanced PCI bus, and ship with the latest version of HPE Comware software to help enable high performance with concurrent services. With the Open Application Platform module, the MSR4000 Series offers a wide range of virtualized applications. Its distributed, modular architecture and high reliability also strengthen the resiliency of large branches.

Specifications

Ethernet LAN features
Ethernet LAN data rates	10,100,1000 Mbit/s
Network
MAC address table	1000000 entries
Port forwarding	Yes
Auto MDI/MDI-X	Yes
Traffic control	Yes
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3
Ethernet LAN data rates	10,100,1000 Mbit/s
Forwarding rate	36 Mpps
Multicast support	Yes
VLAN support	Yes
Ethernet interface type	Gigabit Ethernet
Memory
Flash memory	512 MB
Internal memory	2048 MB
Performance
Internal memory type	DDR3
Traffic control	Yes
Flash memory	512 MB
Internal memory	2048 MB
Built-in processor	Yes
Processor frequency	1000 MHz
WAN connection
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	Yes
Management features
Web-based management	No
Quality of Service (QoS) support	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	6
I/O ports	(8) HMIM slots, (2) MPU (main processing unit) and 1 SPU (service processing unit) slots Maximum, depending on model and configuration
Number of MPU slots	2
Protocols
Routing protocols	RIP-1, RIP-2
DHCP server	Yes
DHCP client	Yes
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
Technical details
Rack mounting	Yes
Built-in processor	Yes
Processor frequency	1000 MHz
Product colour	Black, Silver
Wireless features	Uses USB memory disk to download and upload configuration or OS image files; supports an external USB 3G/4G modem for a 3G/4G WAN uplink
Weight (imperial)	22.6 kg (49.9 lbs)
Security
Firewall	Yes
MAC address table	1000000 entries
Security algorithms	3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1
ARP attack prevention	Yes
Access Control List (ACL)	Yes
ICMP attack prevention	Yes
Features
Internal memory type	DDR3
Flash memory	512 MB
Internal memory	2048 MB
Built-in processor	Yes
Processor frequency	1000 MHz
Design
Rack mounting	Yes
Product colour	Black, Silver
Rack capacity	5U
Power
Power source type	PoE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)	Yes
Power consumption (typical)	300 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	440 mm
Depth	480 mm
Height	219.5 mm
Weight	22.6 kg
Dimensions (W x D x H) (imperial)	439.9 x 480.1 x 219.5 mm (17.3 x 18.9 x 8.64")
Other features
Memory and processor	: MPU-100, 2 cores RISC @ 1 GHz, 512 MB flash capacity, 2 GB DDR3 SDRAM : SPU-100, 8 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM : SPU-200, 16 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM
Performance management	IMC - Intelligent Management Center; command-line interface; limited command-line interface; configuration menu; out-of-band management (RJ-45 Ethernet); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; modem interface; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB
Mounting	Desktop or can be mounted in a EIA-standard 19 in. telco rack when used with the rack-mount kit in the package
Wireless features	Uses USB memory disk to download and upload configuration or OS image files; supports an external USB 3G/4G modem for a 3G/4G WAN uplink
Weight (imperial)	22.6 kg (49.9 lbs)
Dimensions (W x D x H) (imperial)	439.9 x 480.1 x 219.5 mm (17.3 x 18.9 x 8.64")
System requirements
Memory and processor	: MPU-100, 2 cores RISC @ 1 GHz, 512 MB flash capacity, 2 GB DDR3 SDRAM : SPU-100, 8 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM : SPU-200, 16 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM
