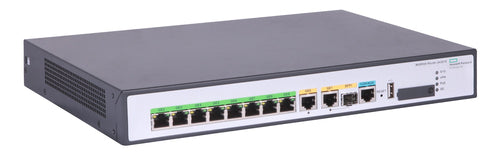

HPE Networking Comware Router 10GbE and Combo MSR958X

Networking Comware Router 10GbE and Combo MSR958X

Reasons To Buy

Reduces Complexity and Simplifies Your Network

The HPE Networking Comware Router Series MSR95x provides a Converged Infrastructure (CI) with integrated routing, switching, security, voice, and cellular WAN delivering high-performance small branch routing.
Makes administration easier when using the HPE Networking Intelligent Management Center (IMC) Software.
Reduces management complexity with zero-touch deployment (ZTD) and Auto Discovery VPN (ADVPN).
Delivers increased flexibility in Comware v7 OS environments across multiple routers.

Enhances Time to Service and Branch Performance

The HPE Networking Comware Router Series MSR95x offers high-performance routing with up to 3 Mpps forwarding.
Simplifies your network with OpenFlow and Zero Touch Provisioning.
Deploys rich features with Comware v7 security, including IPS with high encryption, and dual gigabit WAN ports that support fiber and copper connections.
Supports branch services with a comprehensive feature set, including IPv4 and IPv6 routing, MPLS, QoS, NAT, and VPN services.

Increases Your Return on Your Investment

The HPE Networking Comware Router Series MSR95x offers an extensive range of models and accessories to enable the right design for your business, in a compact fixed-port platform.
Reduces your TCO through open standards, power and space savings, and energy-efficient hardware.
Deploy advanced features with no additional licensing.

Boost Agility and Resiliency.

The HHPE Networking Comware Router Series MSR95x delivers branch service and business continuity with multiple network options including dual gigabit WAN, dual 3G/4G LTE WAN, and built-in WLAN.
With advanced hardware architecture, the HPE Networking Comware Router Series MSR95x provides reliable, high-performance functionality.
Gives you an open standards approach to your network infrastructure.

Description

The HPE Networking Comware Router Series MSR95x delivers high-performance, small branch routing in a single, cost-optimized form factor. Featuring integrated routing, switching, wireless, security, and voice with no additional licensing, boost your service delivery while simplifying the management of the corporate wide area network (WAN). This series is flexible to deploy, with Zero Touch Provisioning and WAN options with LTE connectivity. With Comware v7 and fiber connections, the MSR95x also brings the performance and advanced services available on modular routers, such as IPS and high encryption, to a fixed port form factor.

What is new supporting point:
The new HPE Networking Comware Router MSR958X router supports 10GbE ports with Comware v9 OS
Converged high-performance fiber routing, switching, security, and 3 Mpps performance
Integrated 1/10GbE, WAN and LAN, fiber (SFP)
Integrated 4G LTE, 3G as well as IEEE 802.11b/g/n WLAN in one box
Embedded encryption, stateful firewall, NAT, ADVPN security features
Unified Comware v7 OS, Comware v7 OS zero-touch solution, and single-pane-of-glass management

Specifications

Ethernet LAN features
Ethernet LAN data rates	10,100,1000 Mbit/s
Network
MAC address table	200000 entries
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10,100,1000 Mbit/s
Forwarding rate	3 Mpps
Ethernet interface type	Gigabit Ethernet
Memory
Flash memory	4096 MB
Internal memory	2048 MB
Performance
Flash memory	4096 MB
Internal memory	2048 MB
Built-in processor	Yes
Processor frequency	1600 MHz
WAN connection
SFP WAN	Yes
Ethernet WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	Yes
Mobile network
4G standard	LTE
Management features
Quality of Service (QoS) support	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	8
I/O ports	2 fixed Gigabit Ethernet SFP port, 2 combo ports (SFP or RJ45) 8 RJ-45 autosensing 10/100/1000 LAN ports (Four of them can be switched to routing mode.)
Combo SFP ports quantity	2
SFP module slots quantity	2
Number of console ports	1
Protocols
Management protocols	SNMPv1, SNMPv2, SNMPv3, RMON
Technical details
Rack mounting	Yes
Built-in processor	Yes
Processor frequency	1600 MHz
Product colour	Grey
Wireless features	3G, 4G LTE, or 802.11b/g/n Available on selected models
Weight (imperial)	1.2 kg (2.64 lbs)
Warranty period	1 year(s)
Security
MAC address table	200000 entries
Features
Flash memory	4096 MB
Internal memory	2048 MB
Built-in processor	Yes
Processor frequency	1600 MHz
Processor manufacturer	Marvell
Design
Rack mounting	Yes
Product colour	Grey
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	36 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	261 mm
Depth	161 mm
Height	43.6 mm
Weight	1.2 kg
Dimensions (W x D x H) (imperial)	265.9 x 161 x 43.7 mm (10.5 x 6.34 x 1.72")
Other features
Wireless features	3G, 4G LTE, or 802.11b/g/n Available on selected models
Weight (imperial)	1.2 kg (2.64 lbs)
Dimensions (W x D x H) (imperial)	265.9 x 161 x 43.7 mm (10.5 x 6.34 x 1.72")
