HPE | SKU:
P20292-B21#0D1
Sold out

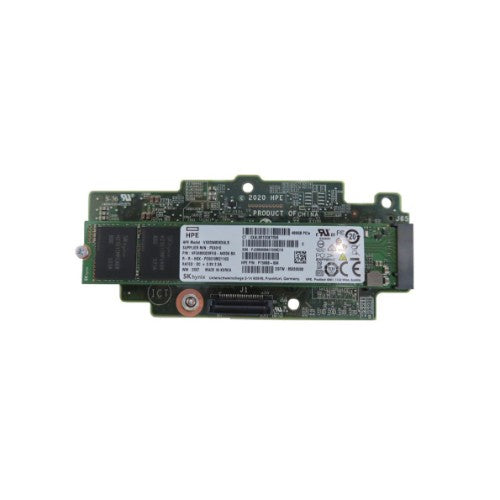

HPE NS204i‑t Gen10 Plus x2 Lanes NVMe PCIe 3 x8 Boot Controller RAID controller PCI Express x8 3.0
€279.89
Unit price
/
Unavailable
Shipping calculated at checkout.
HPE NS204i‑t Gen10 Plus x2 Lanes NVMe PCIe 3 x8 Boot Controller RAID controller PCI Express x8 3.0 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
NS204i‑t Gen10 Plus x2 Lanes NVMe PCIe 3 x8 Boot Controller
NS204i presents itself to your management interface as a single directly connected NVMe drive, not a RAID controller. As the NS204i is a hardware boot device, only RAID 1 mode is supported and it will not operate in any other RAID mode. NS204i is plug-and-play with no need to configure or manage the device. Always ensure you are running the latest HPE iLO version and update server BIOS, FW and drivers when they become available.
Simple and Secure OS Mirroring Through Dedicated Hardware RAID 1
- HPE Boot Device Options is a complete, turnkey optimized that is easy to deploy—no need to configure or format, simply insert and it works, no GUI or user setup required.
- Pre-configured RAID 1 boot device utilizes a single HPE Synergy designed card that connects to PCIe connection under drive cages to safely isolate OS from user data in today’s popular virtualized environments.
- It uses native in-box drive support for VMware, Linux, and Windows OS.
- It enables all drive bays to be used for data, greatly reducing server complexity, while providing an economical way for booting in virtualized environments.
State-of-the-Art, Hardware Accelerated RAID 1 NVMe Boot Device
- HPE enterprise-class NVMe M.2 SSDs deliver enhanced data protection with power loss protection and error correction.
Increased Storage Density and Dedicated Hardware RAID 1 Resiliency for Boot Device
- HPE Boot Device Options provide separate, redundant disk solutions for the OS that enables a more robust, optimized compute platform.
- Dedicated hardware RAID 1 boot device mirroring helps eliminate downtime due to a failed OS drive—even if one drive fails the business continues running.
- HPE Boot Devices are certified for VMware and Microsoft Azure Stack HCI for increased flexibility.
Full Hardware RAID 1 Boot Solution for VMware Environments
- HPE USB flash drive with dual 32 GB microSD cards and on-board RAID 1 boot device deliver redundant OS boot without consuming server storage drive bays.
- It is engineered with enterprise-class high-endurance NAND for non-stop data center environments.
- It has integrated on-board RAID 1 for customers requiring dual boot solutions.
Description
Do you need to simplify data segregation? HPE Boot Device Options offer enterprise customers turnkey, resilient boot solutions that easily segregate the OS from the data storage plane in today’s popular OS for virtualized environments—VMware®, Linux®, Windows.NS204i presents itself to your management interface as a single directly connected NVMe drive, not a RAID controller. As the NS204i is a hardware boot device, only RAID 1 mode is supported and it will not operate in any other RAID mode. NS204i is plug-and-play with no need to configure or manage the device. Always ensure you are running the latest HPE iLO version and update server BIOS, FW and drivers when they become available.
Simple and Secure OS Mirroring Through Dedicated Hardware RAID 1
- HPE Boot Device Options is a complete, turnkey optimized that is easy to deploy—no need to configure or format, simply insert and it works, no GUI or user setup required.
- Pre-configured RAID 1 boot device utilizes a single HPE Synergy designed card that connects to PCIe connection under drive cages to safely isolate OS from user data in today’s popular virtualized environments.
- It uses native in-box drive support for VMware, Linux, and Windows OS.
- It enables all drive bays to be used for data, greatly reducing server complexity, while providing an economical way for booting in virtualized environments.
State-of-the-Art, Hardware Accelerated RAID 1 NVMe Boot Device
- HPE enterprise-class NVMe M.2 SSDs deliver enhanced data protection with power loss protection and error correction.
Increased Storage Density and Dedicated Hardware RAID 1 Resiliency for Boot Device
- HPE Boot Device Options provide separate, redundant disk solutions for the OS that enables a more robust, optimized compute platform.
- Dedicated hardware RAID 1 boot device mirroring helps eliminate downtime due to a failed OS drive—even if one drive fails the business continues running.
- HPE Boot Devices are certified for VMware and Microsoft Azure Stack HCI for increased flexibility.
Full Hardware RAID 1 Boot Solution for VMware Environments
- HPE USB flash drive with dual 32 GB microSD cards and on-board RAID 1 boot device deliver redundant OS boot without consuming server storage drive bays.
- It is engineered with enterprise-class high-endurance NAND for non-stop data center environments.
- It has integrated on-board RAID 1 for customers requiring dual boot solutions.
Specifications
| Ports & interfaces | |
|---|---|
| Supported storage drive interfaces | M.2 |
| Host interface | PCI Express x8 |
| PCI Express slots version | 3.0 |
| Performance | |
| RAID levels | 1 |
| Number of devices supported | 2 |
| Compatible products | Apollo Gen10 Plus |
| Technical details | |
| RAID levels | 1 |
| Number of devices supported | 2 |
