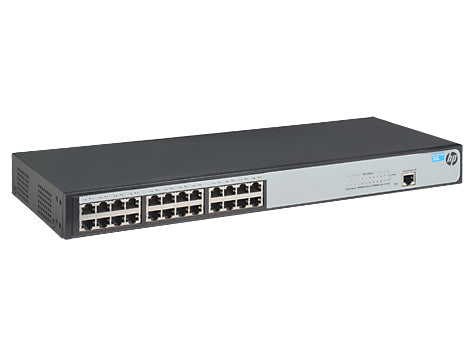

HPE OfficeConnect 1620 24G Managed L2 Gigabit Ethernet (10/100/1000) 1U Grey

1620-24G Switch

Description

The HP 1620 Gigabit Switch Series is an entry-level, smart-managed switch ideal for small businesses looking for basic network features to enhance network performance but without the added complexity and cost of more advanced switches. Part of the HP OfficeConnect portfolio, these switches are plug-and-play out of the box and an intuitive Web GUI provides ease of access to fine tune switch operation, if necessary.

The HP 1620 Gigabit Switch Series consists of 8-, 24-, and 48-port models that can be rack mounted. Customizable features include VLANs, IEEE802.1p QoS and IGPM Snooping.

Features

Simple Deployment and Management
- The HP 1620 Switch Series are entry-level, smart-managed switches ideal for small businesses that deliver plug-n-play out of the box. No device configurations are needed to get up and running at gigabit speeds.
- An intuitive Web interface provides access to fine tune network performance, if necessary.
- Auto-speed negotiation automatically selects individual port speed depending on client capabilities without the need for manual intervention.
- All models come with internal power supplies removing the need to manage external power adapters and can be rack mounted with the included hardware. The 8-port model can be deployed on the desktop, wall or rack mounted.

Enhance Network Performance
- The HP 1620 Switch Series includes VLAN support to provide network traffic and resource segregation for additional security and better network performance.
- IEEE 802.1p QoS and IGMP Snooping prioritizes traffic and reduces unnecessary broadcast of multicast traffic for efficient network utilization.

Peace of Mind
- HP Limited Lifetime Warranty 2.0 provides next day advance hardware replacement (in most countries), free three year 24x7 phone support and lifetime business day phone and email support for as long as you own the product.
- The switch series utilizes Energy Efficient Ethernet for lower power consumption.

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Network
Auto-sensing	Yes
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
IGMP snooping	Yes
Data transmission
Throughput	35.7 Mpps
Latency (10-100 Mbps)	7 µs
Latency (1 Gbps)	5 µs
Packet buffer memory	4.1 MB
MAC address table	8192 entries
Switching capacity	48 Gbit/s
Jumbo frames support	Yes
Security
IGMP snooping	Yes
DHCP features	DHCP client
Design
Form factor	1U
Product colour	Grey
Stackable	Yes
Rack mounting	Yes
Performance
Processor frequency	500 MHz
Memory type	SDRAM
Internal memory	128 MB
Flash memory	32 MB
Built-in processor	Yes
Packet buffer memory	4.1 MB
Stackable	Yes
Harmonized System (HS) code	85176990
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	15 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	439.9 mm
Depth	173 mm
Height	43.9 mm
Weight	2.2 kg
Technical details
Form factor	1U
Product colour	Grey
Stackable	Yes
Processor frequency	500 MHz
Rack mounting	Yes
Built-in processor	Yes
Memory
Packet buffer memory	4.1 MB
Memory type	SDRAM
Internal memory	128 MB
Flash memory	32 MB
Logistics data
Harmonized System (HS) code	85176990
