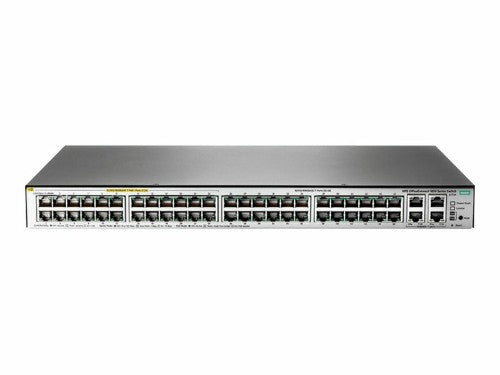

HPE OfficeConnect 1850 48G 4XGT PoE+ 370W Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

OfficeConnect 1850 48G 4XGT PoE+ 370W Switch

Description

The HPE OfficeConnect 1850 Switch Series offers choice and flexibility for smaller organizations that require ease of use and affordable high performance connectivity. The series consists of four basic smart-managed, fixed configuration, Gigabit Layer 2 switches and one 10 Gigabit aggregator switch to deliver high performance 10G connectivity to the edge. They come in an easy-to-administer solution that has the latest energy-saving capabilities. These switches are plug-and-play out of the box, where network operation can be fine-tuned through a simple Web browser-based GUI, when needed.

What's new
- Five basic smart-managed fixed-configuration Layer 2 switches with 10-Gigabit 10GBASE-T ports for affordable high performance connectivity.
- Non-PoE and PoE+ 24- and 48-port models for deployment flexibility.
- 8-port 10GBASE-T aggregation switch with 2 SFP+ dual personality ports.
- Intuitive Web management interface for easy switch configuration.
- Limited Lifetime Warranty.

Features

Performance and Reliability
- The HPE OfficeConnect 1850 Switch Series offers choice and flexibility with a complete portfolio of Gigabit and 10 Gigabit basic smart managed Layer 2 switches.
- The series consists of four Gigabit switches including PoE+ and non-PoE models, each with 10GBASE-T uplinks and one 8-port 10G aggregator switch with eight 10GBASE-T and two dual personality SPF+ ports that delivers 10G connectivity to the edge switches.
- Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) provides redundant links while preventing network loops.

Easy-to-Use, Simple to Deploy and Manage
- The HPE OfficeConnect 1850 Switch Series features an intuitive Web management interface with an enhanced navigation pane for easy management of devices by non-technical users. It is ideal for organizations that require simplicity.
- Customizable features include VLANs, Spanning Tree, Link aggregation, and IGMP Snooping. All models include Rapid Spanning Tree Protocol (RSTP) and DSCP Quality of Service (QoS) policies.
- These switches support flexible installation options, including mounting on walls, under tables or on desk tops.

Energy Efficiency and Lower TCO
- The HPE OfficeConnect 1850 Switch Series include the latest energy-savings capabilities, including Energy Efficient Ethernet (IEEE), idle-port power down and PoE Port Scheduler.
- All switches are covered by a Limited Lifetime Warranty.

Quality of Service (QoS)
- The HPE OfficeConnect 1850 Switch Series traffic prioritization provides time sensitive packets (like VoIP and video) with priority over other traffic based on DSCP or IEEE 802.1p classification. Packets are mapped to eight hardware queues for more effective throughput.
- Broadcast control allows limiting of broadcast traffic rate, to reduce unwanted network broadcast traffic.
- IEEE 802.11p/Q delivers data to devices based on the priority and type of traffic.

Specifications

Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
IGMP snooping	Yes
Auto-sensing	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Virtual LAN features
VLAN support	Yes
Performance
Packet buffer memory	3 MB
Stackable	Yes
Processor frequency	400 MHz
Memory type	DDR3-SDRAM
Internal memory	128 MB
Built-in processor	Yes
Technical details
Form factor	1U
Product colour	Grey
Stackable	Yes
Processor frequency	400 MHz
Rack mounting	Yes
Built-in processor	Yes
Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2
Data transmission
Throughput	131 Mpps
Latency (10-100 Mbps)	10 µs
Latency (1 Gbps)	3.8 µs
Latency (10 Gbps)	3.8 µs
Packet buffer memory	3 MB
MAC address table	16000 entries
Switching capacity	176 Gbit/s
Jumbo frames support	Yes
Security
SSH/SSL support	Yes
IGMP snooping	Yes
DHCP features	DHCP client
Memory
Packet buffer memory	3 MB
Memory type	DDR3-SDRAM
Internal memory	128 MB
Design
Form factor	1U
Product colour	Grey
Stackable	Yes
Rack mounting	Yes
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	446.4 W
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	370 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	15 - 95%
Weight & dimensions
Width	442.5 mm
Depth	322.6 mm
Height	44 mm
Weight	4.67 kg
