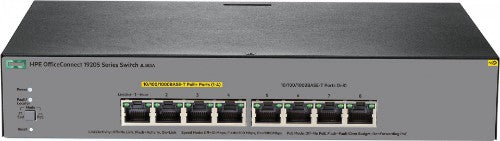

HPE OfficeConnect 1920S 8G PPoE+ 65W Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

OfficeConnect 1920S 8G PPoE+ 65W Switch

Description

The HPE OfficeConnect 1920S Switch Series, is designed for small businesses that require enhanced performance to support bandwidth-demanding applications. They are ideal for environments that require advanced features for granular control and where smart-managed flexibility is a must for easy network configuration and management. The switches are advanced smart-managed fixed configuration Gigabit switches that are optimized for small business price/performance. They offer 8-, 24- and 48-port configurations, choice of PoE+ and non-PoE+ models; some include SFP slots for fiber connectivity.

What's new
- Six new advanced smart managed fixed-configuration lite Layer 3 Gigabit switches for affordable high-performance connectivity.
- Non-PoE and PoE+ 8-, 24- and 48-port models for deployment flexibility.
- Simple and consistent Web interface for easy switch configuration.
- Limited Lifetime Warranty

Features

Simplifies Network Deployment and Management for Small Organizations
- The HPE OfficeConnect 1920S Switch Series features easy-to-use, out of the box, plug-and-play deployment.
- The series offers a complete portfolio of choices for increased small business flexibility. It consists of six rack-mountable models including 8G-, 24G- and 48G-port with and without PoE+. The 24G- and 48G-port PoE+ models offer SPF fiber connectivity.
- These smart-managed switches use an intuitive Web management interface, to simplify deployment and management while offering granular control of key features.

Keeps Your Business Protected with Enhanced Security
- The HPE OfficeConnect 1920S Switch Series supports Energy Efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
- Enhanced security features such as Access Control List, IEEE 802.1x and VLANs guard your network from unwanted or unauthorized access.
- Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection and supports secure http (https).

Delivers Better Performance at a Lower Total Cost of Ownership
- The HPE OfficeConnect 1920S Switch Series delivers advanced functionality in smart-managed switches, including Layer 3 static routes, SFP ports, rate limiting, link aggregation and IGMP.
- The switch series includes PoE+ options to power IP devices without the cost of additional cabling.
- Green features like port shutdown and Energy Efficient Ethernet compliance for greater energy-efficiency.
- The switch series is covered by the Limited Lifetime Warranty with 24x7 phone support for 90 days and business hours thereafter.

Specifications

Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
IGMP snooping	Yes
Auto-sensing	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Virtual LAN features
VLAN support	Yes
Performance
Packet buffer memory	1.5 MB
Stackable	Yes
Processor frequency	400 MHz
Memory type	SDRAM
Internal memory	256 MB
Flash memory	64 MB
Built-in processor	Yes
Harmonized System (HS) code	85176990
Technical details
Form factor	1U
Product colour	Grey
Stackable	Yes
Processor frequency	400 MHz
Rack mounting	Yes
Built-in processor	Yes
Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L3
Data transmission
Throughput	11.9 Mpps
Latency (10-100 Mbps)	7 µs
Latency (1 Gbps)	2.3 µs
Packet buffer memory	1.5 MB
MAC address table	8000 entries
Switching capacity	16 Gbit/s
Jumbo frames support	Yes
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP client
Memory
Packet buffer memory	1.5 MB
Memory type	SDRAM
Internal memory	256 MB
Flash memory	64 MB
Design
Form factor	1U
Product colour	Grey
Stackable	Yes
Rack mounting	Yes
Power
Power consumption (max)	72.9 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	9.7 W
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	65 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	15 - 95%
Weight & dimensions
Width	254 mm
Depth	159.5 mm
Height	43.9 mm
Weight	910 g
Logistics data
Harmonized System (HS) code	85176990
