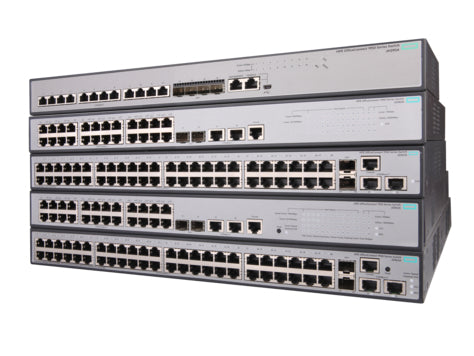

HPE OfficeConnect 1950 12xGT 4SFP+ Managed L3 10G Ethernet (100/1000/10000) 1U Grey

OfficeConnect 1950 12XGT 4SFP+ Switch

Description

The HPE 1950 Switch Series is a family of smart web-managed Gigabit switches with 10GbE uplinks for small business customers needing advanced high-performance connections. The series has 2 standard and 2 PoE+ models, 24- and 48-GbE ports, each with 2 10GBASE-T and 2 10G SFP+ high-bandwidth ports.

True stacking of as many as 4 devices allows them to be logically administered as a single entity. The switches support Layer 3 static routing on IPv4 and IPv6.

Other advanced features include ACLs, 802.1X, STP, RSTP, and MSTP. Limited lifetime warranty covers unit, fans and power supplies.

High-level Gigabit with 10GbE Networking for Advanced Small Businesses.
- Each model of the HPE 1950 Switch Series includes four 10GbE connections to connect to servers, network storage devices, or to other switches.
- Two connections of 10GBASE-T deliver 10GbE over copper Category 6a cabling for simple, affordable, high-bandwidth connections to a maximum distance of 100 meters.
- Two SFP+ ports allow for fiber connectivity at various distances, at 1/10GbE speeds, using optional SFP+ 10GbE or SFP Gigabit transceivers.
- Aggregate 10GbE connections for even higher bandwidth using Link Aggregation Control Protocol.

Simplified Network Administration
- Logically group or "stack" as many as four units of the HPE 1950 Switch Series and manage this as a single entity, greatly simplifying network administration. Interconnect stacked units using 10GbE connections, with as much as 40GbE total stacking bandwidth connecting the units.
- Use the intuitive web-browser based interface to configure and administer these smart-managed devices.
- These devices support SNMP versions 1, 2c and 3, allowing administration of these devices from a remote SNMP-based management platform.
- Network Time Protocol facilitates timekeeping across your network so time-based actions and trouble-shooting logs are kept synchronized.
- Units will automatically retrieve an IP Address from a DHCP server, allowing for near plug-and-play deployments.

Robust Security to Protect Your Network
- The HPE 1950 Switch Series lets you use Virtual LANs and access control lists to set bounds on what data can be seen by which users.
- Leverage 802.1X with a RADIUS server to ensure only known and authorized users can access your network.
- Multiple features guard your network from user or server spoofing and from malicious network-based attacks.
- Help secure management traffic using supported SSL/HTTPS encryption and SNMPv3 capabilities.

Resiliency Features to Keep Your Network Running
- The HPE 1950 Switch Series supports Spanning Tree Protocol, Rapid Spanning Tree Protocol, and Multiple Spanning Tree Protocol standards for creating hot-standby recovery links.
- Distribute important links across multiple units in a logical stack for added resiliency. Units can even be in different buildings and still be logically stacked.
- Devices support two independent primary and secondary operating system flash images for backup and recovery during unit upgrades.
- Power over Ethernet (PoE) models can be paired with an optional Redundant Power System which can maintain power even if the unit's power supply fails, as well as supplement available PoE power up to 780 Watts.

Specifications

Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	12
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Fiber optic connector	SFP+
Console port	RJ-45
Network
IGMP snooping	Yes
Copper ethernet cabling technology	10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Virtual LAN features
VLAN support	Yes
Optical fiber
Fiber optic connector	SFP+
Fiber ethernet cabling technology	10GBASE-R
Performance
Packet buffer memory	2 MB
Stackable	Yes
Physical stacking (units)	2
Processor frequency	1.25 MHz
Internal memory	1024 MB
Flash memory	512 MB
Built-in processor	Yes
Harmonized System (HS) code	85176990
Technical details
Physical stacking (units)	2
Form factor	1U
Product colour	Grey
Stackable	Yes
Processor frequency	1.25 MHz
Rack mounting	Yes
Built-in processor	Yes
Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L3
Data transmission
Throughput	238 Mpps
Latency (10-100 Mbps)	5 µs
Latency (1 Gbps)	5 µs
Latency (10 Gbps)	5 µs
Packet buffer memory	2 MB
MAC address table	16384 entries
Switching capacity	320 Gbit/s
Jumbo frames support	Yes
Security
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP client
Protocols
Management protocols	SNMP, HTTPS, RMON1, FTP, IMC
Memory
Packet buffer memory	2 MB
Internal memory	1024 MB
Flash memory	512 MB
Design
Form factor	1U
Product colour	Grey
Stackable	Yes
LED indicators	Yes
Rack mounting	Yes
Indication
LED indicators	Yes
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	34 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Weight & dimensions
Width	440 mm
Depth	160 mm
Height	44 mm
Weight	3.66 kg
Packaging data
Rack mount kit	Yes
Quick start guide	Yes
User guide	Yes
Manual	Yes
Cables included	AC
Logistics data
Harmonized System (HS) code	85176990
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
User guide	Yes
Manual	Yes
Cables included	AC
