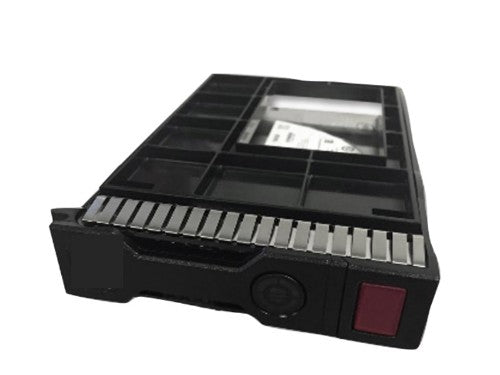

HPE P09687-B21#0D1 internal solid state drive 3.5" 480 GB Serial ATA III MLC

480GB, 3.5", SATA III, RI, LFF, SCC, Factory Integrated

Description

Do you need to accelerate the performance of your data-intensive applications? HPE Servers Mixed Use (MU) Solid State Drives (SSDs) deliver high performance and endurance for customers with applications requiring a balance of high random read and write IOPS performance. HPE (MU) SSDs typically have an endurance of between <1 and <10 drive writes per day (DWPD). All HPE SSDs are backed by over 3.35 million hours of testing and qualification1 ensuring reliable, high-performing drives. HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that drive firmware comes from a trusted source. The self-describing icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a “do not remove” button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge compatibility in management tools, allowing you to determine if any drives are at risk of failure.

HPE SSDs offer High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
Ideal for big data analytics, cloud computing, active archiving, database applications, and data warehousing.

Achieve higher IOPS to enhance the performance of your data center.

Maintain data accuracy with full data-path error detection.

Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.

12 Gb/s SAS, 6 Gb/s SATA, and NVMe.

Specifications

Hard drive
SSD capacity	480 GB
Memory type	MLC
Data transmission
Read speed	535 MB/s
Write speed	495 MB/s
Random write (4KB)	25000 IOPS
Random read (4KB)	68000 IOPS
Write latency	40 µs
Read latency	105 µs
Data transfer rate	6 Gbit/s
Performance
Interface	Serial ATA III
Component for	Server/workstation
SSD capacity	480 GB
Read speed	535 MB/s
Write speed	495 MB/s
Memory type	MLC
Random write (4KB)	25000 IOPS
Random read (4KB)	68000 IOPS
Write latency	40 µs
Read latency	105 µs
Data transfer rate	6 Gbit/s
Design
Component for	Server/workstation
SSD form factor	3.5"
Features
Interface	Serial ATA III
Component for	Server/workstation
SSD capacity	480 GB
Read speed	535 MB/s
Write speed	495 MB/s
Memory type	MLC
Random write (4KB)	25000 IOPS
Random read (4KB)	68000 IOPS
Write latency	40 µs
Read latency	105 µs
Data transfer rate	6 Gbit/s
SSD form factor	3.5"
Power
Power consumption (max)	2.5 W
Power consumption (write)	2.5 W
Power consumption (read)	1.89 W
Technical details
Interface	Serial ATA III
SSD form factor	3.5"
Weight & dimensions
Height	7 mm
