HPE | SKU:
J9148AR
Sold out

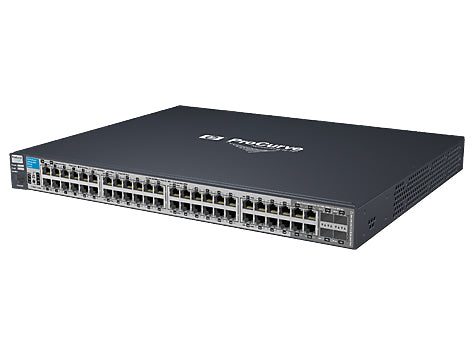

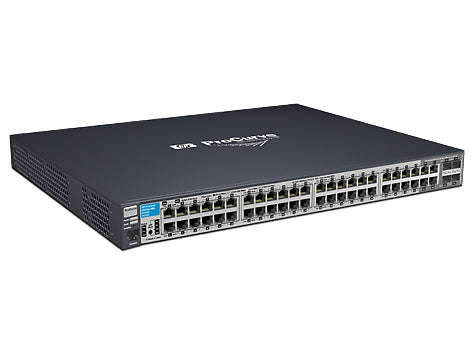

HPE ProCurve 2910al-48G-PoE+ Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
€2,657.12
Unit price
/
Unavailable
Shipping calculated at checkout.
HPE ProCurve 2910al-48G-PoE+ Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
ProCurve 2910al-48G-PoE+
Description
The HP ProCurve 2910al Switch Series consists of four switches: the HP ProCurve 2910al-24G and 2910al-24G-PoE+ Switches with 24 10/100/1000 ports, and the HP ProCurve 2910al-48G and 2910al-48G-PoE+ Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or mini-GBIC connectivity. In addition, the 2910al switch supports up to four optional 10-Gigabit (CX4 and/or SFP+) ports, thereby offering the most flexible and easy-to-deploy uplinks in its class. Together with static and RIP IPv4 routing, robust security and management, enterprise-class features, free lifetime warranty, and free software updates, the 2910 series is a cost-effective, scalable solution for customers who are building high-performance networks. These switches can be deployed at enterprise edge and remote branch offices, converged networks, and data center top of rack.Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | MIB II, Bridge MIB, RIPv2 MIB, RMONv2 MIB, SMON MIB, RADIUS Client MIB, RADIUS Accounting MIB, Ethernet-Like-MIB, MAU MIB, Entity MIB, Ping MIB |
| Switch layer | L3 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Network | |
| IGMP snooping | Yes |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 2000 |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Performance | |
| Packet buffer memory | 6 MB |
| Stackable | Yes |
| Processor frequency | 515 MHz |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Flash memory | 4 MB |
| Built-in processor | Yes |
| Processor model | ARM11 |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Processor frequency | 515 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Data transmission | |
| Throughput | 131 Mpps |
| Latency (1 Gbps) | 2.9 µs |
| Latency (10 Gbps) | 1.3 µs |
| Packet buffer memory | 6 MB |
| MAC address table | 16000 entries |
| Switching capacity | 176 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| SSH/SSL support | Yes |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Certificates | |
| Safety | EN 60950/IEC 60950; CAN/CSA 22.2 No. 60950; EN 60825; UL 60950. |
| Electromagnetic compatibility | FCC part 15 Class A; EN 55022/CISPR-22 Class A; VCCI Class A. |
| Memory | |
| Packet buffer memory | 6 MB |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Flash memory | 4 MB |
| Design | |
| Safety | EN 60950/IEC 60950; CAN/CSA 22.2 No. 60950; EN 60825; UL 60950. |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Electromagnetic compatibility | FCC part 15 Class A; EN 55022/CISPR-22 Class A; VCCI Class A. |
| Rack mounting | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 556 W |
| Input current | 6.4 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Heat dissipation | 667 BTU/h |
| Weight & dimensions | |
| Width | 442.5 mm |
| Depth | 365.8 mm |
| Height | 44 mm |
| Weight | 5.88 kg |
