HPE | SKU:
666159R-B21
Sold out

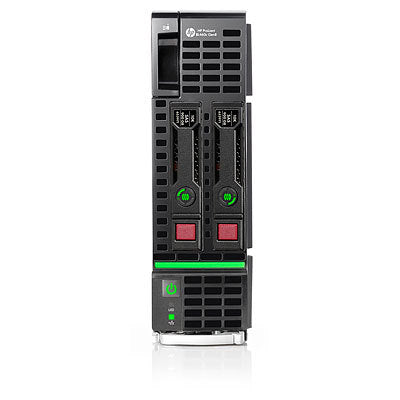

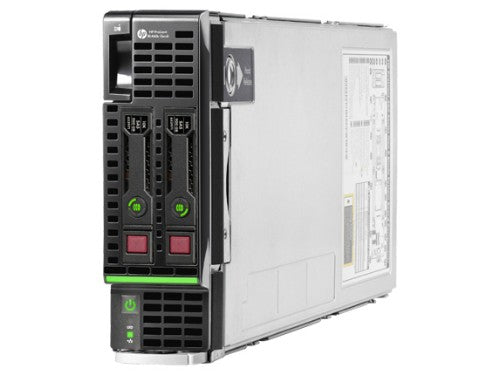

HPE ProLiant BL460c Gen8 server Blade Intel® Xeon® E5 Family E5-2650 2 GHz 32 GB DDR3-SDRAM
€3,577.46
Unit price
/
Unavailable
Shipping calculated at checkout.
HPE ProLiant BL460c Gen8 server Blade Intel® Xeon® E5 Family E5-2650 2 GHz 32 GB DDR3-SDRAM is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Intel Xeon E5-2650 (2.0GHz, 20MB), 32GB DDR3, Smart Array P220i/512MB FBWC
Features
Enhanced Processor Performance and Capabilities
- The latest 2-socket Intel® Xeon® E5-2600 Processor Family providing more performance and up to 8 cores with the same TDP
- Support for up to 130 watts per processor providing a wider choice of processor options and greater performance
- HP Smart Socket Guide provides quick and precise processor installation or upgrade
- Intel® Turbo Boost 2, Intel® AVX, and enhanced Intel® QPI link speed provide more performance when needed, accelerate floating point intensive applications, and provide faster connections throughout the server
Improved Memory Capacity, Performance, and Power
- 16 DIMM slots provide up to 512MB of memory (33% increase over the previous generation)
- The four memory channels per processor provide no reduction in memory capacity or speed as DIMMs are added
- Operate RDIMMs at low power (1.35V LVDIMMs) without reducing performance, saving an estimated 15-25% wattage per DIMM
- Lower cost UDIMM capacity has increased to 128GB (nearly three times that of the previous generation)
- Choice of operating at a high performance mode (1.5V RDIMMs at 1600MHz), in a power saving, standard performance mode (1.35V LRDIMM/LVRDIMMs at 1333MHz), or a low cost mode (1.35V UDIMMs at 1333MHz)
The New HP iLO Management Engine
- HP iLO Management Engine is a complete set of embedded management features supporting the complete lifecycle of the server, from initial deployment, through ongoing management, to service alerting and remote support. HP iLO Management Engine comes standard on all HP ProLiant Gen8 Servers
- The new HP iLO simplifies server setup, health monitoring, power and thermal control, and promotes remote administration. Access, deploy, and manage your server anytime from anywhere with your Smartphone device
- Now with HP Agentless Management, the base hardware monitoring and alerting capability of the BL460c Gen8 are built into the system (running on the HP iLO chipset) and starts working the moment that a power cord and an Ethernet cable is connected to the server
- The new HP Active Health System monitors and records changes in the server hardware and system configuration, it assists in diagnosing problems and delivering rapid resolution when system failures occur
- HP FlexibleLOM provides the ability to customize server networking today and the ability to meet future needs without overhauling server hardware. Provides choice of bandwidth and fabric (Ethernet, FCoE, InfiniBand), supports WOL, and provides a shared iLO port for ease of use.
Description
The HP ProLiant BL460c Gen8 is a dual-socket server blade engineered for unprecedented performance, enhanced flexibility and simplified management which makes it the standard for data center computing. The ProLiant BL460c Gen8 Server packs in more performance with a 33% increase in memory DIMM count, Intel® Xeon® E5-2600 Processor with added support for 130W processors, faster I/O slots and enhanced Smart Array Controller that now ships with 512MB Flash Back Write Cache standard. In addition, it is also more flexible with the HP FlexibleLOM which provides the ability to customize server networking today and the ability to meet future needs without overhauling server hardware.Features
Enhanced Processor Performance and Capabilities
- The latest 2-socket Intel® Xeon® E5-2600 Processor Family providing more performance and up to 8 cores with the same TDP
- Support for up to 130 watts per processor providing a wider choice of processor options and greater performance
- HP Smart Socket Guide provides quick and precise processor installation or upgrade
- Intel® Turbo Boost 2, Intel® AVX, and enhanced Intel® QPI link speed provide more performance when needed, accelerate floating point intensive applications, and provide faster connections throughout the server
Improved Memory Capacity, Performance, and Power
- 16 DIMM slots provide up to 512MB of memory (33% increase over the previous generation)
- The four memory channels per processor provide no reduction in memory capacity or speed as DIMMs are added
- Operate RDIMMs at low power (1.35V LVDIMMs) without reducing performance, saving an estimated 15-25% wattage per DIMM
- Lower cost UDIMM capacity has increased to 128GB (nearly three times that of the previous generation)
- Choice of operating at a high performance mode (1.5V RDIMMs at 1600MHz), in a power saving, standard performance mode (1.35V LRDIMM/LVRDIMMs at 1333MHz), or a low cost mode (1.35V UDIMMs at 1333MHz)
The New HP iLO Management Engine
- HP iLO Management Engine is a complete set of embedded management features supporting the complete lifecycle of the server, from initial deployment, through ongoing management, to service alerting and remote support. HP iLO Management Engine comes standard on all HP ProLiant Gen8 Servers
- The new HP iLO simplifies server setup, health monitoring, power and thermal control, and promotes remote administration. Access, deploy, and manage your server anytime from anywhere with your Smartphone device
- Now with HP Agentless Management, the base hardware monitoring and alerting capability of the BL460c Gen8 are built into the system (running on the HP iLO chipset) and starts working the moment that a power cord and an Ethernet cable is connected to the server
- The new HP Active Health System monitors and records changes in the server hardware and system configuration, it assists in diagnosing problems and delivering rapid resolution when system failures occur
- HP FlexibleLOM provides the ability to customize server networking today and the ability to meet future needs without overhauling server hardware. Provides choice of bandwidth and fabric (Ethernet, FCoE, InfiniBand), supports WOL, and provides a shared iLO port for ease of use.
Specifications
| Processor | |
|---|---|
| Thermal Monitoring Technologies | Yes |
| Thermal Design Power (TDP) | 95 W |
| Tcase | 77.4 °C |
| Supported instruction sets | AVX |
| Stepping | C2 |
| Scalability | 2S |
| Processor threads | 16 |
| Processor package size | 52.5 x 45.0 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 32 nm |
| Processor codename | Sandy Bridge EP |
| Physical Address Extension (PAE) | 46 bit |
| PCI Express configurations | x4, x8, x16 |
| Number of QPI links | 2 |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333,1600 MHz |
| Memory channels supported by processor | Quad |
| Memory bandwidth supported by processor (max) | 51.2 GB/s |
| Maximum number of PCI Express lanes | 40 |
| Maximum internal memory supported by processor | 750 GB |
| Idle States | Yes |
| Graphics & IMC lithography | 32 nm |
| FSB Parity | No |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| ECC supported by processor | Yes |
| Bus type | QPI |
| Processor cache type | Smart Cache |
| Processor cache | 20 MB |
| CPU multiplier (bus/core ratio) | 28 |
| Conflict-Free processor | No |
| Processor series | Intel Xeon E5-2600 |
| Processor frequency | 2 GHz |
| Processor boost frequency | 2.8 GHz |
| Number of processors installed | 1 |
| Processor model | E5-2650 |
| System bus rate | 8 GT/s |
| Processor socket | LGA 2011 (Socket R) |
| Processor cores | 8 |
| Processor manufacturer | Intel |
| Motherboard chipset | Intel C600 |
| Maximum number of SMP processors | 2 |
| Processor family | Intel® Xeon® E5 Family |
| Memory | |
| Internal memory | 32 GB |
| Memory layout (slots x size) | 4 x 8 GB |
| Memory slots | 16x DIMM |
| Memory clock speed | 1333 MHz |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Storage | |
| Hot-swap | Yes |
| RAID support | Yes |
| RAID levels | 0, 1 |
| Optical drive type | No |
| Number of HDDs supported | 2 |
| HDD size | 2.5" |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| Network | |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Optical drive type | No |
| Chassis type | Blade |
| Graphics | |
| Graphics card family | Matrox |
| Graphics card | G200 |
| Performance | |
| Compatible operating systems | Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Oracle Solaris VMware Citrix XenServer |
| Operating system installed | No |
| Software | |
| Compatible operating systems | Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Oracle Solaris VMware Citrix XenServer |
| Operating system installed | No |
| Processor special features | |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | No |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel Clear Video Technology | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 0.00 |
| Intel FDI Technology | No |
| Intel Dual Display Capable Technology | No |
| Intel Fast Memory Access | No |
| Processor ARK ID | 64590 |
| Intel Rapid Storage Technology | No |
| CPU configuration (max) | 2 |
| Power | |
| Redundant power supply (RPS) support | No |
| Technical details | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Rapid Storage Technology | No |
| CPU configuration (max) | 2 |
| Chassis type | Blade |
| Weight & dimensions | |
| Width | 55.4 mm |
| Weight | 6.33 kg |
| Height | 180.7 mm |
| Depth | 517.6 mm |
| Other features | |
| Disk array controller | Smart Array P220i |
| Graphics card family | Matrox |
| Graphics card | G200 |
| CPU configuration (max) | 2 |
