HPE | SKU:
844355-B21
Sold out

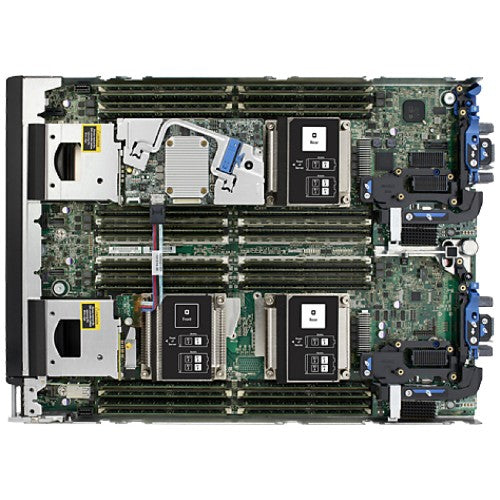

HPE ProLiant BL660c Gen9 server Blade Intel® Xeon® E5 v4 E5-4650V4 2.2 GHz 128 GB DDR4-SDRAM
€29,549.38
Unit price
/
Unavailable
Shipping calculated at checkout.
HPE ProLiant BL660c Gen9 server Blade Intel® Xeon® E5 v4 E5-4650V4 2.2 GHz 128 GB DDR4-SDRAM is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
4x Intel Xeon E5-4650 v4 (2.2GHz, 35MB), 128GB (4 x 32GB) DDR4, 4SFF hot-plug, 2x FlexFabric 20Gb 2-port 630FLB Flexible, Smart Array P246br
The HPE ProLiant BL660c Gen9 Server Blade is ideal for virtualization, database, business processing, and other four processor (4P) applications where fine-tuning of data center space and price/performance is paramount. Focused on flexibility, it offers more storage options, faster I/O, and more powerful processing to meet any workload needs at a low TCO. All of this is managed by HPE OneView, the converged management platform that accelerates IT service delivery and boosts business performance.
Supporting the Intel® Xeon® E5-4600 v3 or v4 processors, the BL660c Gen9 Server Blade redefines density-optimized 4-socket blade technology without compromising on performance. HPE DDR4 SmartMemory offers up to a 33%1 performance increase from our previous generation. Additional support includes support for 2 NVMe SSDs, tiered array controller options, 12 Gb/s SAS, 20 Gb FlexibleLOM NICs, M.2, and USB 3.0.
What's new
- E5-4600 v4 Intel Xeon processors and HPE 2400MT/s DDR4 SmartMemory.
- Support for two NVMe SSDs for high performance caching.
- Optional 120GB Dual M.2 Kit.
- HPE PCIe Workload Accelerators for up to 3.2 TB of flash based cache.
- Up to four SFF drives, internal USB 3.0, optional dual micro-SD, and optional M.2 support deliver a variety of system boot options.
Features
Ideal 4-socket Dense Form Factor Without Compromising on Performance, Scalability, and Expandability
- The HPE ProLiant BL660c Gen9 Server Blade delivers four socket (4S) computing in a single-wide, full-height form factor. It has support for two or four cost-effective Intel Xeon E5-4600 v3 or v4 processors each with up to 22 cores and 135 watts without system configuration restrictions.
- Provides the flexibility to optimize your core IT applications with right-sized storage for your workload, lowering TCO; all managed by HPE OneView, the converged management platform that accelerates IT service delivery and boosts business performance.
- The HPE Gen9 FlexibleLOM solution for your choice of 10 Gb or 20 Gb FlexFabric ports.
- Supports four Small Form Factor (SFF) drive bays for increased internal storage capacity.
Improved Memory, Storage, and I/O Performance
- The HPE ProLiant BL660c Gen9 Server Blade delivers up to 21%2 performance increases with Intel Xeon E5-4600 v4 processors.
- HPE DDR4 SmartMemory at 2400MT/s (up to 4 TB with 128 GB DIMMs): +33% throughput compared to competition and 35% lower power consumption than 1.5 V DDR3 at the same bin speed.
- Optional support for up to two SFF NVMe Solid State Disks (SSDs) for additional performance.
- Optional HPE Smart Array P246br storage controller with 1 GB Flash-Write Back Cache (FWBC) DDR3 at 1866 MHz improves storage performance for demanding workloads.
Flexibility to Configure for Your Specific Workload for Reduced TCO
- The HPE ProLiant BL660c Gen9 Server Blade delivers tiered storage controller options (HPE Smart Array P246br Controller or the HPE Dynamic Smart Array B140i Controller) for increased deployment flexibility.
- Every BL660c Gen9 Server Blade includes USB 3.0, optional dual Micro-SD, two SFF drives, 12 Gb SAS and optional 64GB or 120GB M.2 support for configuration variety of system boot options at an optimal price.
- Both Unified Extensible Firmware Interface (UEFI) and Legacy BIOS modes available for increased configuration and deployment versatility.
Transforming Business Economics by Accelerating Service Delivery
- HPE OneView provides the HPE ProLiant BL660c Gen9 Server Blade with the Power of One—a single comprehensive view of the data center, managing hardware, software, firmware, and drivers.
- HPE Integrated Lights-out (iLO) software features server lifecycle management advancements including iLO federation, which remotely manages groups of servers at scale with built-in rapid discovery of all iLOs, group configurations, group health status, and ability to determine iLO licenses.
Description
Do you need a server blade designed to scale for your data-intensive workloads?The HPE ProLiant BL660c Gen9 Server Blade is ideal for virtualization, database, business processing, and other four processor (4P) applications where fine-tuning of data center space and price/performance is paramount. Focused on flexibility, it offers more storage options, faster I/O, and more powerful processing to meet any workload needs at a low TCO. All of this is managed by HPE OneView, the converged management platform that accelerates IT service delivery and boosts business performance.
Supporting the Intel® Xeon® E5-4600 v3 or v4 processors, the BL660c Gen9 Server Blade redefines density-optimized 4-socket blade technology without compromising on performance. HPE DDR4 SmartMemory offers up to a 33%1 performance increase from our previous generation. Additional support includes support for 2 NVMe SSDs, tiered array controller options, 12 Gb/s SAS, 20 Gb FlexibleLOM NICs, M.2, and USB 3.0.
What's new
- E5-4600 v4 Intel Xeon processors and HPE 2400MT/s DDR4 SmartMemory.
- Support for two NVMe SSDs for high performance caching.
- Optional 120GB Dual M.2 Kit.
- HPE PCIe Workload Accelerators for up to 3.2 TB of flash based cache.
- Up to four SFF drives, internal USB 3.0, optional dual micro-SD, and optional M.2 support deliver a variety of system boot options.
Features
Ideal 4-socket Dense Form Factor Without Compromising on Performance, Scalability, and Expandability
- The HPE ProLiant BL660c Gen9 Server Blade delivers four socket (4S) computing in a single-wide, full-height form factor. It has support for two or four cost-effective Intel Xeon E5-4600 v3 or v4 processors each with up to 22 cores and 135 watts without system configuration restrictions.
- Provides the flexibility to optimize your core IT applications with right-sized storage for your workload, lowering TCO; all managed by HPE OneView, the converged management platform that accelerates IT service delivery and boosts business performance.
- The HPE Gen9 FlexibleLOM solution for your choice of 10 Gb or 20 Gb FlexFabric ports.
- Supports four Small Form Factor (SFF) drive bays for increased internal storage capacity.
Improved Memory, Storage, and I/O Performance
- The HPE ProLiant BL660c Gen9 Server Blade delivers up to 21%2 performance increases with Intel Xeon E5-4600 v4 processors.
- HPE DDR4 SmartMemory at 2400MT/s (up to 4 TB with 128 GB DIMMs): +33% throughput compared to competition and 35% lower power consumption than 1.5 V DDR3 at the same bin speed.
- Optional support for up to two SFF NVMe Solid State Disks (SSDs) for additional performance.
- Optional HPE Smart Array P246br storage controller with 1 GB Flash-Write Back Cache (FWBC) DDR3 at 1866 MHz improves storage performance for demanding workloads.
Flexibility to Configure for Your Specific Workload for Reduced TCO
- The HPE ProLiant BL660c Gen9 Server Blade delivers tiered storage controller options (HPE Smart Array P246br Controller or the HPE Dynamic Smart Array B140i Controller) for increased deployment flexibility.
- Every BL660c Gen9 Server Blade includes USB 3.0, optional dual Micro-SD, two SFF drives, 12 Gb SAS and optional 64GB or 120GB M.2 support for configuration variety of system boot options at an optimal price.
- Both Unified Extensible Firmware Interface (UEFI) and Legacy BIOS modes available for increased configuration and deployment versatility.
Transforming Business Economics by Accelerating Service Delivery
- HPE OneView provides the HPE ProLiant BL660c Gen9 Server Blade with the Power of One—a single comprehensive view of the data center, managing hardware, software, firmware, and drivers.
- HPE Integrated Lights-out (iLO) software features server lifecycle management advancements including iLO federation, which remotely manages groups of servers at scale with built-in rapid discovery of all iLOs, group configurations, group health status, and ability to determine iLO licenses.
Specifications
| Processor | |
|---|---|
| Thermal Monitoring Technologies | Yes |
| Thermal Design Power (TDP) | 105 W |
| Tcase | 80 °C |
| Supported instruction sets | AVX 2.0 |
| Stepping | M0 |
| Scalability | 4S |
| Processor threads | 28 |
| Processor package size | 45 x 52.5 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Broadwell |
| Physical Address Extension (PAE) | 46 bit |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| Number of QPI links | 2 |
| Memory types supported by processor | DDR4-SDRAM |
| Memory channels supported by processor | Quad |
| Memory bandwidth supported by processor (max) | 68 GB/s |
| Maximum number of PCI Express lanes | 40 |
| Maximum internal memory supported by processor | 1.54 TB |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| ECC supported by processor | Yes |
| Bus type | QPI |
| Processor cache type | Smart Cache |
| Processor cache | 35 MB |
| Conflict-Free processor | Yes |
| Processor frequency | 2.2 GHz |
| Processor boost frequency | 2.8 GHz |
| Number of processors installed | 4 |
| Processor model | E5-4650V4 |
| System bus rate | 9.6 GT/s |
| Processor socket | LGA 2011-v3 |
| Processor cores | 14 |
| Processor manufacturer | Intel |
| Motherboard chipset | Intel C610 |
| Processor family | Intel® Xeon® E5 v4 |
| Memory | |
| Internal memory | 128 GB |
| Memory layout (slots x size) | 4 x 32 GB |
| Memory slots | 32x DIMM |
| Memory clock speed | 2400 MHz |
| Maximum internal memory | 4.1 TB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Storage | |
| Supported storage drive interfaces | SAS, Serial ATA |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSDHC |
| RAID support | Yes |
| RAID levels | 0, 1, 5 |
| Optical drive type | No |
| Number of HDDs supported | 4 |
| Maximum storage capacity | 61.2 TB |
| Hot-Plug support | Yes |
| HDD size | 2.5" |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| Graphics | |
| On-board graphics card model | Matrox G200eH |
| On-board graphics card | Yes |
| Network | |
| Ethernet LAN | Yes |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Optical drive type | No |
| Chassis type | Blade |
| Performance | |
| Compatible operating systems | Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| Operating system installed | No |
| Software | |
| Compatible operating systems | Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware |
| Operating system installed | No |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Secure Key | Yes |
| Intel Instruction Replay Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | No |
| Intel Enhanced Halt State | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Instruction Replay Technology version | 0.00 |
| Processor ARK ID | 93809 |
| CPU configuration (max) | 4 |
| Power | |
| Redundant power supply (RPS) support | No |
| Technical details | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| Hot-Plug support | Yes |
| CPU configuration (max) | 4 |
| Chassis type | Blade |
| Weight & dimensions | |
| Width | 56.5 mm |
| Weight | 12.3 kg |
| Height | 366.3 mm |
| Depth | 516.7 mm |
| Other features | |
| CPU configuration (max) | 4 |
