HPE | SKU:
778456-B21
Sold out

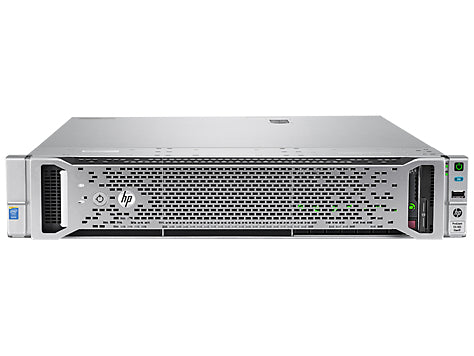

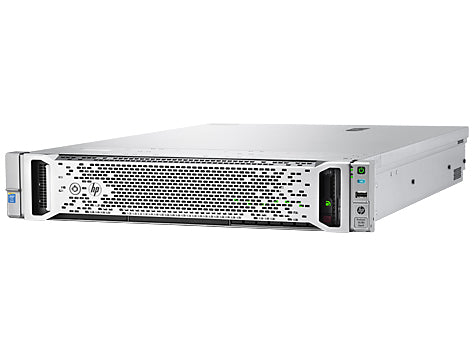

HPE ProLiant DL180 server Rack (2U) Intel Xeon E5 v3 E5-2623V3 3 GHz 16 GB DDR4-SDRAM 800 W
€3,449.77
Unit price
/
Unavailable
Shipping calculated at checkout.
HPE ProLiant DL180 server Rack (2U) Intel Xeon E5 v3 E5-2623V3 3 GHz 16 GB DDR4-SDRAM 800 W is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Intel Xeon E5-2623 v3 (4 core, 3 GHz, 10MB, 105W), 2U, 800W, 16GB (2x8GB) RDIMM, 16.59 Kg
Features
Scalability and Performance To Meet the New Standard of Growing Data Center Needs
The HP ProLiant DL180 Gen9 Server provides ample storage capacity on demand with drive configurations ranging from (4) to (12) Large Form Factor (LFF) or (8) to (16) Small Form Factor (SFF) HP SmartDrives, with flexibility of LFF non-hot plug (NHP) options at the right economics.
It supports up to two Intel® Xeon® processor E5-2600 v3 processors with up to 12 cores and 16 DIMM slots of HP DDR4 Smart Memory offering improved performance and efficiency.
Comes standard with 2x1GbE and choice of HP FlexibleLOM or PCIe standup 1GbE or 10GbE Adapters provide you flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.
Up to six PCIe 3.0 riser slots to support a wide range of GPUs and networking cards offering increased IO bandwidth and seamless expandability.
Embedded SATA HP Dynamic Smart Array B140i Controller for boot and data. Choice of HP Smart Array Controllers with increased performance, data availability with 12 Gb/s SAS technology or HP Smart HBAs with reliable high performance SAS connectivity capable of running HBA mode or simple RAID mode.
High Availability and Efficiency for Dense Storage Applications
The HP ProLiant DL180 Gen9 Server supports HP SmartDrive technology which improves serviceability and prevents data loss with features, such as, self-describing LEDs and a Do Not Remove icon.
HP SmartMemory prevents data loss and downtime with enhanced error handling. Support of up to 512 GB max capacity with speeds up to 2133 MHz with up to 14%1performance gain.
80 PLUS certified entry-level redundant HP Power Supplies provide up to 92% efficiency which combined with HP power management features leads to reduction of power consumption.
Improved ambient temperature standard with ASHRAE A3 and A4 2helps customers reduce cooling expense.
ENERGY STAR® qualified server configurations illustrate a continued commitment to helping customers conserve energy and save money.
Agile Infrastructure Management for Accelerating IT Service Delivery
With HP ProLiant DL180 Gen9 Server, HP OneView provides infrastructure management for automation simplicity across servers, storage and networking.
Online personalized dashboard for converged infrastructure health monitoring and support management with HP Insight Online.
Configure in UEFI boot mode, provision local and remote with Intelligent Provisioning and Scripting Toolkits.
Embedded management to deploy, monitor and support your server remotely, out of band with HP iLO.
Optimize firmware and driver updates and reduce downtime with HP Smart Update, consisting of HP SUM (Smart Update Manager) and SPP (Service Pack for ProLiant).
Description
Do you need a cost-effective server that can keep pace with your data growth while providing options to manage and deliver performance? The HP ProLiant DL180 Gen9 Server delivers an optimized 2U server, designed with the right balance of expandability, performance, reliability and manageability all in a new compact chassis, making it the ideal platform for SMBs and Enterprises running the "New Style of IT", applications such as Hadoop, Cloud and mobility applications which need right mix of compute and storage.Features
Scalability and Performance To Meet the New Standard of Growing Data Center Needs
The HP ProLiant DL180 Gen9 Server provides ample storage capacity on demand with drive configurations ranging from (4) to (12) Large Form Factor (LFF) or (8) to (16) Small Form Factor (SFF) HP SmartDrives, with flexibility of LFF non-hot plug (NHP) options at the right economics.
It supports up to two Intel® Xeon® processor E5-2600 v3 processors with up to 12 cores and 16 DIMM slots of HP DDR4 Smart Memory offering improved performance and efficiency.
Comes standard with 2x1GbE and choice of HP FlexibleLOM or PCIe standup 1GbE or 10GbE Adapters provide you flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.
Up to six PCIe 3.0 riser slots to support a wide range of GPUs and networking cards offering increased IO bandwidth and seamless expandability.
Embedded SATA HP Dynamic Smart Array B140i Controller for boot and data. Choice of HP Smart Array Controllers with increased performance, data availability with 12 Gb/s SAS technology or HP Smart HBAs with reliable high performance SAS connectivity capable of running HBA mode or simple RAID mode.
High Availability and Efficiency for Dense Storage Applications
The HP ProLiant DL180 Gen9 Server supports HP SmartDrive technology which improves serviceability and prevents data loss with features, such as, self-describing LEDs and a Do Not Remove icon.
HP SmartMemory prevents data loss and downtime with enhanced error handling. Support of up to 512 GB max capacity with speeds up to 2133 MHz with up to 14%1performance gain.
80 PLUS certified entry-level redundant HP Power Supplies provide up to 92% efficiency which combined with HP power management features leads to reduction of power consumption.
Improved ambient temperature standard with ASHRAE A3 and A4 2helps customers reduce cooling expense.
ENERGY STAR® qualified server configurations illustrate a continued commitment to helping customers conserve energy and save money.
Agile Infrastructure Management for Accelerating IT Service Delivery
With HP ProLiant DL180 Gen9 Server, HP OneView provides infrastructure management for automation simplicity across servers, storage and networking.
Online personalized dashboard for converged infrastructure health monitoring and support management with HP Insight Online.
Configure in UEFI boot mode, provision local and remote with Intelligent Provisioning and Scripting Toolkits.
Embedded management to deploy, monitor and support your server remotely, out of band with HP iLO.
Optimize firmware and driver updates and reduce downtime with HP Smart Update, consisting of HP SUM (Smart Update Manager) and SPP (Service Pack for ProLiant).
Specifications
| Processor | |
|---|---|
| Thermal Monitoring Technologies | Yes |
| Thermal Design Power (TDP) | 105 W |
| Tcase | 80.2 °C |
| Supported instruction sets | AVX |
| Stepping | R2 |
| Scalability | 2S |
| Processor threads | 8 |
| Processor package size | 52.5 x 45 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 22 nm |
| Processor codename | Haswell |
| Processor code | SR208 |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| PCI Express configurations | x4, x8, x16 |
| Number of QPI links | 2 |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866 MHz |
| Memory channels supported by processor | Quad |
| Memory bandwidth supported by processor (max) | 59 GB/s |
| Maximum number of PCI Express lanes | 40 |
| Maximum internal memory supported by processor | 768 GB |
| Idle States | Yes |
| FSB Parity | No |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| ECC supported by processor | Yes |
| Bus type | QPI |
| Processor cache type | Smart Cache |
| Processor cache | 10 MB |
| Conflict-Free processor | No |
| Processor series | Intel Xeon E5-2600 v3 |
| Processor frequency | 3 GHz |
| Processor boost frequency | 3.5 GHz |
| Number of processors installed | 1 |
| Processor model | E5-2623V3 |
| System bus rate | 8 GT/s |
| Processor socket | LGA 2011-v3 |
| Processor cores | 4 |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E5 v3 |
| Memory | |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 16 |
| Internal memory type | DDR4-SDRAM |
| Network | |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Design | |
| Chassis type | Rack (2U) |
| Performance | |
| Harmonized System (HS) code | 84714100 |
| Processor special features | |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® Secure Key | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | No |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel Clear Video Technology | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 0.00 |
| Intel FDI Technology | No |
| Intel Dual Display Capable Technology | No |
| Intel Fast Memory Access | No |
| Processor ARK ID | 83354 |
| Intel Rapid Storage Technology | No |
| CPU configuration (max) | 2 |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Technical details | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Rapid Storage Technology | No |
| CPU configuration (max) | 2 |
| Chassis type | Rack (2U) |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Weight & dimensions | |
| Width | 445.4 mm |
| Weight | 16.6 kg |
| Height | 87.5 mm |
| Depth | 607 mm |
| Other features | |
| CPU configuration (max) | 2 |
