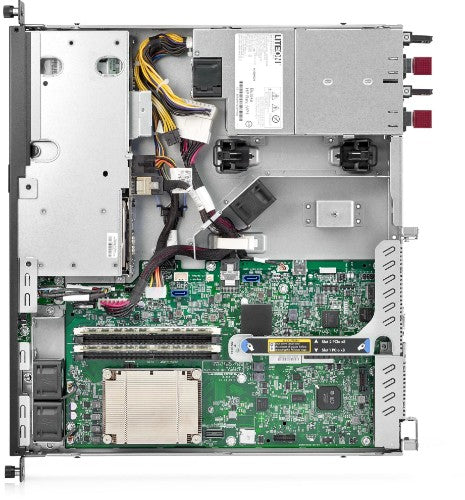

HPE ProLiant DL20 Gen9 server Rack (1U) Intel® Xeon® E3 v5 E3-1240V5 3.5 GHz 8 GB DDR4-SDRAM 900 W

Intel Xeon E3-1240 v5 (3.5GHz, 8MB), 8GB (1 x 8GB) DDR4, 4SFF SATA, H240 Host Bus Adapter, 900W PS

Description

Are you looking for a compact 1U server that works in a variety of environments? The dense and compact HPE ProLiant DL20 Gen9 Server powered by Intel® Pentium®, Core i3 and E3-1200v5 processors provides a unique blend of enterprise-class capabilities at a great value—making it an ideal rack server platform for growing businesses and service providers. It offers outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point.

The DL20 Gen9 Server offers a range of HPE Qualified options to fit most needs like affordable drives for light workloads, solid state drives for the demanding requirements, from a single non-hot plug power supply to an efficient HPE Hot Plug Redundant Power supply, from multiple storage controllers to the HPE FlexibleLOM networking cards—helping customers find the right configuration for their workloads.

Features

Optimized Reliable Solution
- The HPE ProLiant DL20 Gen9 Server is a 1P 1U rack server that combines the right balance of performance, expandability, reliability and manageability for a variety of business needs.
- The DL20 Gen9 Server combines a dense and compact form factor with redundant power supply capability which keeps your business running and provides data protection and accessibility even in the event of a power supply failure.
- Customers can protect against data loss and downtime with the enhanced error handing of HPE DDR4 ECC memory options while also improving workload performance and power efficiency.
- Trusted and proven HPE Smart Array technology provides businesses with protection for critical data through RAID mirroring and striping capability and, with FBWC up to 4 GB, captures and holds data indefinitely in the event of a power loss, equipment failure, or human error.
- Your business cannot afford disruptions due to downtime on your server. HPE Insight Online with HPE Insight Remote Support provides 24x7 remote monitoring with anywhere, anytime personalized access to your IT and support status to get your business up and running.

Ease of Use for Many Environments and Workloads
- The HPE ProLiant DL20 Gen9 Server is a short-depth chassis of 15.05” providing mobility and easy deployment in a wide variety of environments.
- The HPE embedded management solution based on HPE iLO 4 provides simple, versatile and comprehensive tools to deploy, manage and troubleshoot servers—even for customers with limited IT resources.
- The DL20 Gen9 Server has the great quality and design features that are a hallmark of the ProLiant family such as tool-less access to system components and enhanced serviceability.
- Trusted and proven HPE Smart Array technology provides businesses with protection for critical data through RAID mirroring and striping capability and, with FBWC up to 4 GB, captures and holds data indefinitely in the event of a power loss, equipment failure, or human error.

Great Combination of Performance and Efficiency
- The HPE ProLiant DL20 Gen9 Server supports Flex LOM which enables next-generation network capability for faster data transfer.
- You have a wide choice of dual core and quad core Intel Pentium and Xeon® E3-1200 processors with up to 64 GB of DDR4 ECC memory to handle any demands that your workload might make on the HPE ProLiant DL20 Gen9 Server.
- The DL20 Gen9 Server consumes up to 29% less power compared to the previous generation which combined with the efficient, redundant power supply solution provides you with an Energy Star® certified power saving solution.

Specifications

Processor
Thermal Monitoring Technologies	Yes
Thermal Design Power (TDP)	80 W
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Stepping	R0
Scalability	1S
Processor threads	8
Processor package size	37.5 x 37.5 mm
Processor operating modes	32-bit, 64-bit
Processor lithography	14 nm
Processor codename	Skylake
Processor code	SR2LD
PCI Express configurations	1x16, 2x8, 1x8+2x4
Memory voltage supported by processor	1.35 V
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,1866,2133 MHz
Memory channels supported by processor	Dual
Memory bandwidth supported by processor (max)	34.1 GB/s
Maximum number of PCI Express lanes	16
Maximum internal memory supported by processor	64 GB
Idle States	Yes
Graphics & IMC lithography	14 nm
Execute Disable Bit	Yes
Embedded options available	No
ECC supported by processor	Yes
Bus type	DMI3
Processor cache type	Smart Cache
Processor cache	8 MB
Conflict-Free processor	Yes
Processor series	Intel Xeon E3-1200 v5
Processor frequency	3.5 GHz
Processor boost frequency	3.9 GHz
Number of processors installed	1
Processor model	E3-1240V5
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Processor cores	4
Processor manufacturer	Intel
Motherboard chipset	Intel® C232
Processor family	Intel® Xeon® E3 v5
Memory
Internal memory	8 GB
Memory layout (slots x size)	1 x 8 GB
Memory slots	4x DIMM
Memory clock speed	2133 MHz
Maximum internal memory	64 GB
Internal memory type	DDR4-SDRAM
ECC	Yes
Storage
RAID support	Yes
RAID levels	0, 1, 5
Optical drive type	No
Number of HDDs supported	4
Maximum storage capacity	8 TB
HDD size	2.5"
HDD interface	Serial ATA
Network
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
VGA (D-Sub) ports quantity	1
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	2
Expansion slots
PCI Express slots version	3.0
Optical drive
Optical drive type	No
Design
Optical drive type	No
Chassis type	Rack (1U)
Graphics
Graphics card family	Matrox
Graphics card	G200
Performance
Compatible operating systems	Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware
Operating system installed	No
Software
Compatible operating systems	Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware
Operating system installed	No
Processor special features
Intel® Wireless Display (Intel® WiDi)	No
Enhanced Intel SpeedStep Technology	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Turbo Boost Technology	2.0
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Smart Response Technology	No
Intel® Smart Cache	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Secure Key	Yes
Intel® Quick Sync Video Technology	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel Clear Video Technology	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Built-in Visuals Technology	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Smart Connect Technology	No
Intel Secure Key Technology version	1.00
Intel® Rapid Start Technology	No
Intel HD Graphics	No
Intel® High Definition Audio (Intel® HD Audio)	No
Intel® Active Management Technology (Intel® AMT)	No
Processor ARK ID	88176
Intel® Matrix Storage Technology (Intel® MST)	No
CPU configuration (max)	1
Power
Redundant power supply (RPS) support	No
Power supply	900 W
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® Matrix Storage Technology (Intel® MST)	No
Ethernet interface type	Gigabit Ethernet
CPU configuration (max)	1
Chassis type	Rack (1U)
Sustainability certificates	ENERGY STAR
Weight & dimensions
Width	434.6 mm
Weight	8.7 kg
Height	43.2 mm
Depth	382.2 mm
Other features
Graphics card family	Matrox
Graphics card	G200
CPU configuration (max)	1
