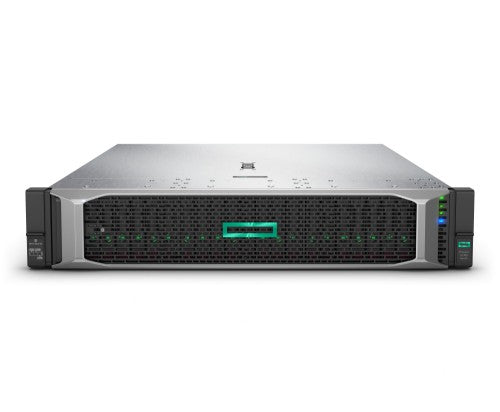

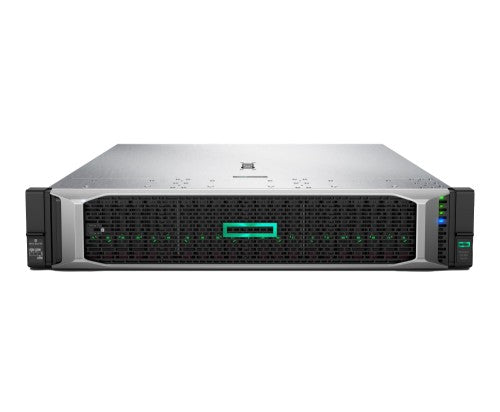

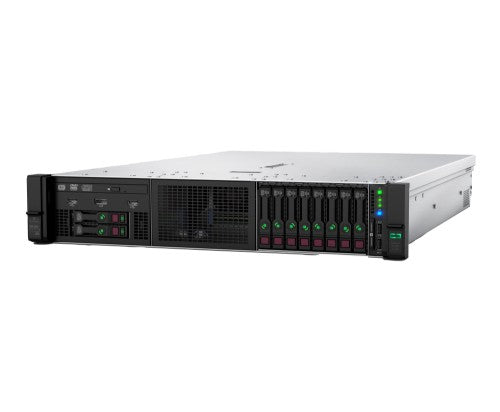

HPE ProLiant DL380 Gen10 6234 3.3GHz 8-core 1P 32GB-R S100i NC 8SFF 800W PS Server

ProLiant DL380 Gen10 6234 3.3GHz 8-core 1P 32GB-R S100i NC 8SFF 800W PS Server

Reasons To Buy

Defend Applications and Data Before Your Server is Built with HPE Trusted Supply Chain

A new first line of defense against cyber-attackers with select servers built to the world’s toughest security standards in secured facilities, bringing together security, processes and people to deliver protection for your most sensitive applications and data even before your server is built.
Built in secure HPE facilities to the most stringent Country of Origin USA and conformance requirements, HPE Trusted Supply Chain servers are inspected to be free from malicious microcode and counterfeit parts, safeguarding it against cyber-exploits throughout its life cycle.
With hardened security built in, HPE Trusted Supply Chain hardens the protections designed into select HPE products with unrivaled supply chain visibility and standards compliance providing a 360-degree view and mitigation plan for current and emerging cyber-threats.
Allied to ensure authenticity, HPE Trusted Supply Chain doubles down on your protection with vetted HPE employees assigned to the product build to manage the product manufacturing process that adheres to the strictest sourcing, inspection and traceability standards.
Learn more about HPE Trusted Supply Chain

World-Class Performance featuring Enhanced Compute Density

The ProLiant DL380 now features significantly enhanced GPU density, expanding support from five to seven Full-Height, Half-Length, Single-Width Accelerators/GPUs; or up to six in a balanced configuration with additional PCIe expansion via the tertiary riser.
Leveraging HPE's most popular 2U rackmount server, fitting standard depth racks, customers can benefit from one of the densest Accelerator/GPU platforms with an extensive set of Accelerator options, enabling diverse cloud workload performance and optimization of AI and deep learning experiences.
Supported on the ProLiant DL380, the NVIDIA T4 GPU is ideal for Deep learning, Inferencing, Machine Learning, HPC, Rendering, VDI, Virtual Workstations and combinations thereof for mixed workloads - maximizing utilization of data center resources and lowering TCO.

Flexible Design Making Your Investment Expand As Your Business Needs Grow

The HPE ProLiant DL380 Gen10 server has an adaptable chassis, including new Hewlett Packard Enterprise modular drive bay configuration options with up to 30 SFF, up to 19 LFF or up to 20 NVMe drive options along with support for up to three double wide GPU options.
Adapting and growing to changing business needs, Networking Choice (NC) server models provide flexibility in the primary networking choice while Embedded LOM server models offer an embedded 4x1GbE by default; both provide network options (1GbE to 100GbE) via HPE FlexibleLOM or PCIe standup adapters.
HPE Persistent Memory works with DRAM to provide fast, high capacity, cost effective memory and storage to transform big data workloads and analytics by enabling data to be stored, moved, and processed quickly.
In conjunction with the embedded SATA HPE Dynamic Smart Array S100i Controller for boot, data and media needs, the redesigned HPE Smart Array Controllers allow you the flexibility to choose the optimal 12 Gb/s controller most suited to your environment, and operate in both SAS and HBA mode.
Supporting a wide range of operating environments from Azure to Docker to ClearOS in addition to traditional operating systems.

Industry Leading Services and Ease of Deployment

The HPE ProLiant DL380 Gen10 server comes with a complete set of HPE Technology Services, delivering confidence, reducing risk, and helping customers realize agility and stability.
HPE Services simplifies all stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an optimal solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.
A suite of embedded and downloadable tools is available for server lifecycle management including Unified Extensible Firmware Interface (UEFI), Intelligent Provisioning; HPE iLO 5 to monitor and manage; Smart Update Manager (SUM), and Service Pack for ProLiant (SPP).
Hewlett Packard Enterprise IT investment solutions help you transform to a digital business with IT economics that align to your business goals.

Description

Where is your server bottlenecked...storage, compute, expansion? The HPE ProLiant DL380 Gen10 server delivers the latest in security, performance and expandability, backed by a comprehensive warranty. Standardize on the industry's most trusted compute platform. The HPE ProLiant DL380 Gen10 server is securely designed to reduce costs and complexity, featuring the First and Second Generation Intel Xeon Processor Scalable Family with up to a 60% performance gain ^[1] and 27% increase in cores ^[2], plus the HPE 2933 MT/s DDR4 SmartMemory supporting 3.0 TB. It supports 12 Gb/s SAS, and up to 20 NVMe drive plus a broad range of compute options. Intel Optane™ persistent memory 100 series for HPE offers unprecedented levels of performance for databases and analytic workloads. Run everything from the most basic to mission-critical applications and deploy with confidence.

What is new supporting point:
iLO 5 security enhancements: Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor. HPE InfoSight provides cloud-based analytics to predict and prevent issues proactively.
Defend applications and data before your server is built with the new HPE Trusted Supply Chain offering.
Supporting additional second generation Intel Xeon Scalable processor family offerings.
Increased Single-Width GPU Density with up to 7 NVIDIA Tesla T4 16GB Computational Accelerators or 7 Xilinx Alveo U50 Accelerators supported in a standard-depth 2U rack form factor
Networking Choice (NC) server models provide greater flexibility in the primary networking selection.
Intel Optane™ persistent memory 100 series for HPE offers the flexibility to deploy as dense memory or fast storage and enables per-socket memory capacity of up to 3.0 TB. ^[3]

Specifications

Processor
Processor generation	2nd Generation Intel® Xeon® Scalable
Thermal Design Power (TDP)	130 W
Tcase	79 °C
Supported instruction sets	SSE4.2, AVX, AVX 2.0, AVX-512
Scalability	4S
Processor threads	16
Processor package size	76.0 x 56.5 mm
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Cascade Lake
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2933 MHz
Maximum number of PCI Express lanes	48
Maximum internal memory supported by processor	1 TB
Execute Disable Bit	Yes
Embedded options available	No
Processor cache type	L3
Processor cache	24.75 MB
Processor frequency	3.3 GHz
Processor boost frequency	4 GHz
Number of processors installed	1
Processor model	6234
Processor socket	LGA 3647 (Socket P)
Processor cores	8
Processor manufacturer	Intel
Motherboard chipset	Intel® C621
Maximum number of SMP processors	2
Processor family	Intel® Xeon® Gold
Memory
Internal memory	32 GB
Memory layout (slots x size)	1 x 32 GB
Memory slots	24x DIMM
Memory clock speed	2933 MHz
Maximum internal memory	1.53 TB
Internal memory type	DDR4-SDRAM
Storage
Supported RAID controllers	1 HPE Smart Array S100i
Total storage capacity	0 GB
SSD interface	PCI Express 4.0
RAID support	Yes
RAID levels	0, 1, 5, 10
Optical drive type	No
Number of HDDs supported	8
Maximum storage capacity	60 TB
Hot-Plug support	Yes
HDD size	2.5"
HDD interface	Serial ATA
Storage drive type	None ship standard, 8 SFF supported
Graphics
Thermal Design Power (TDP)	130 W
On-board graphics card model	Not available
Maximum graphics card memory	16 MB
On-board graphics card	Yes
Network
LAN controller	Intel X710-DA2
Ethernet LAN	Yes
Ethernet interface type	10 Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Expansion slots	3 PCIe 3.0, for detailed descriptions reference the QuickSpecs
Expansion slots
PCI Express slots version	3.0
Optical drive
Optical drive type	No
Design
Rack mounting	Yes
Optical drive type	No
Chassis type	Rack (2U)
Product colour	Black, Metallic
Performance
Compatible operating systems	Windows Server 2019: Essentials, Standard, Datacenter Windows Server 2016: Essentials, Standard, Datacenter Windows Server 2012 R2: Essentials, Standard, Datacenter Microsoft Hyper-V Server: 2012 R2, 2016 & 2019 VMware vSphere 6.0 U3, 6.5 U2 & 6.7 U1 ClearVM: 7.6 & 8.0 Red Hat Enterprise Linux (RHEL) 7.6 w/ Kbase SUSE Linux Enterprise Server (SLES) 12 SP4 & 15 SP1 (incl. Xen)
Remote administration	iLO 5 ASIC
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Security features	Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
Operating system installed	No
Management platform	HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional; requires licenses)
Software
Compatible operating systems	Windows Server 2019: Essentials, Standard, Datacenter Windows Server 2016: Essentials, Standard, Datacenter Windows Server 2012 R2: Essentials, Standard, Datacenter Microsoft Hyper-V Server: 2012 R2, 2016 & 2019 VMware vSphere 6.0 U3, 6.5 U2 & 6.7 U1 ClearVM: 7.6 & 8.0 Red Hat Enterprise Linux (RHEL) 7.6 w/ Kbase SUSE Linux Enterprise Server (SLES) 12 SP4 & 15 SP1 (incl. Xen)
Operating system installed	No
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Turbo Boost Technology	2.0
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	193954
Power
Number of main power supplies	1
Power supply type	1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
Redundant power supply (RPS) support	Yes
Power supply	800 W
Weight & dimensions
Dimensions (W x D x H) (imperial)	445.5 x 730.2 x 87.4 mm (17.5 x 28.8 x 3.44")
Width	445.5 mm
Weight	14.8 kg
Height	87.4 mm
Depth	730.3 mm
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Security features	Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
Rack mounting	Yes
Number of processors supported	1
Hot-Plug support	Yes
Ethernet interface type	10 Gigabit Ethernet
Chassis type	Rack (2U)
Weight (imperial)	14.8 kg (32.6 lbs)
Standard fans	4 single-rotor, standard fans included
Sustainability certificates	ENERGY STAR
Management features
Remote administration	iLO 5 ASIC
Management platform	HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional; requires licenses)
Sustainability
Sustainability certificates	ENERGY STAR
Other features
Security features	Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
Number of processors supported	1
Weight (imperial)	14.8 kg (32.6 lbs)
Standard fans	4 single-rotor, standard fans included
Storage drive type	None ship standard, 8 SFF supported
Dimensions (W x D x H) (imperial)	445.5 x 730.2 x 87.4 mm (17.5 x 28.8 x 3.44")
