HPE | SKU:
P02874R-B21
Sold out

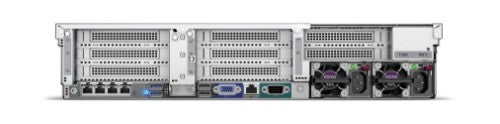

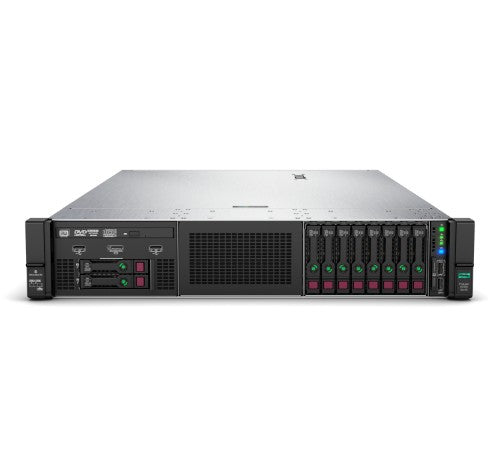

HPE ProLiant DL560 Gen10 server Rack (2U) Intel® Xeon® Gold 6254 3.1 GHz 256 GB DDR4-SDRAM 1600 W
€45,159.22
Unit price
/
Unavailable
Shipping calculated at checkout.
HPE ProLiant DL560 Gen10 server Rack (2U) Intel® Xeon® Gold 6254 3.1 GHz 256 GB DDR4-SDRAM 1600 W is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
4x Intel Xeon Gold 6254 (3.1GHz, 24.75MB), 256GB (8 x 32GB) DDR4, 8 SFF, Smart Array P408i-a SR Gen10, 2x 1600W PS
Features
Scalable 4P Performance in a Dense 2U Form Factor
- HPE ProLiant DL560 Gen10 server provides 4P computing in a dense 2U form factor and supports up to four Intel Xeon Platinum (8100 series) and Gold (6100 and 5100 series) processors which provide up to 68% more processor performance and 27%2 more cores than the previous generation.
- Up to 48 DIMM slots which support up to 6 TB for 2666 MT/s DDR4 HPE SmartMemory. HPE DDR4 SmartMemory improves workload performance and power efficiency while reducing data loss and downtime with enhanced error handling.
- Choice of HPE FlexibleLOM adapters offers range of networking bandwidth (1GbE to 25GbE) and fabric so you can adapt and grow to changing business needs.
- HPE Innovation with Intelligent System Tuning enhances workload performance using customized profiles to tune internal resources; improves workloads such as high frequency trading with jitter smoothing and provides added performance with core boosting SKUs.
Flexible New Generation Expandability and Reliability for Multiple Workloads

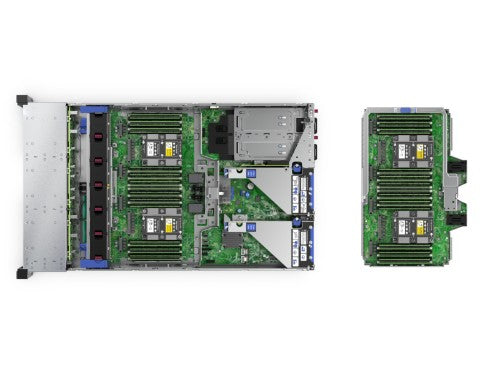

- HPE ProLiant DL560 Gen10 server has a flexible processor tray allowing to scale up from two to four processors only when you need, saving on upfront costs. The flexible drive cage design supports up to 24 SFF SAS/SATA with a maximum of 12 NVMe drives.
- Supports up to eight PCIe 3.0 expansion slots for graphical processing units (GPUs) and networking cards offering increased I/O bandwidth and expandability.
- Up to four, 96% efficient HPE 800W or 1600W Flexible Slot Power Supplies3, which enable higher power redundant configurations and flexible voltage ranges. The slots provide the capability to trade-off between 2+2 power supplies or use as extra PCIe slots.
Secure and Reliable
- HPE iLO 5 enables the world’s most secure industry standard servers with HPE Silicon Root of Trust technology to protect your servers from attacks, detect potential intrusions and recover your essential server firmware securely.
- Millions of lines of firmware code run before server operating system boots and with Runtime Firmware Validation, enabled by HPE iLO Advanced Premium Security Edition, the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware.
- Secure Recovery allows server firmware to rollback to the to last known good state or factory settings after detection of compromised code.
- Additional security options are available with, Trusted Platform Module (TPM), to prevent unauthorized access to the server and safely stores artifacts used to authenticate the server platforms while the Intrusion Detection Kit logs and alerts when the server hood is removed.
Agile Infrastructure Management for Accelerating IT Service Delivery
- With HPE ProLiant DL560 Gen10 server, HPE OneView provides infrastructure management for automation simplicity across servers, storage and networking.
- A suite of embedded and downloadable tools is available for server lifecycle management including Unified Extensible Firmware Interface (UEFI), Intelligent Provisioning; HPE iLO 5 to monitor and manage; HPE iLO Amplifier Pack, Smart Update Manager (SUM), and Service Pack for ProLiant (SPP).
- Services from HPE Pointnext simplify the stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design a better solution. Professional Services enables rapid deployment of solutions and Operational Services provides ongoing support.
- HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.
Description
Looking for a dense but highly scalable server for your data center application and virtualization needs? HPE ProLiant DL560 Gen10 server is a high-density, 4P server with high-performance, scalability, and reliability, in a 2U chassis. Supporting the Intel® Xeon® Scalable processors with up to a 68% performance gain1, the HPE ProLiant DL560 Gen10 server offers greater processing power, up to 3 TB of faster memory, and I/O of up to eight PCIe 3.0 slots. In addition if offers the intelligence and simplicity of automated management with HPE OneView and HPE Integrated Lights Out 5 (iLO 5). The HPE ProLiant DL560 Gen10 server is the ideal server for business-critical workloads, virtualization, server consolidation, database, business processing, and general 4P data-intensive applications where data center space and the right performance are paramount.Features
Scalable 4P Performance in a Dense 2U Form Factor
- HPE ProLiant DL560 Gen10 server provides 4P computing in a dense 2U form factor and supports up to four Intel Xeon Platinum (8100 series) and Gold (6100 and 5100 series) processors which provide up to 68% more processor performance and 27%2 more cores than the previous generation.
- Up to 48 DIMM slots which support up to 6 TB for 2666 MT/s DDR4 HPE SmartMemory. HPE DDR4 SmartMemory improves workload performance and power efficiency while reducing data loss and downtime with enhanced error handling.
- Choice of HPE FlexibleLOM adapters offers range of networking bandwidth (1GbE to 25GbE) and fabric so you can adapt and grow to changing business needs.
- HPE Innovation with Intelligent System Tuning enhances workload performance using customized profiles to tune internal resources; improves workloads such as high frequency trading with jitter smoothing and provides added performance with core boosting SKUs.
Flexible New Generation Expandability and Reliability for Multiple Workloads
- HPE ProLiant DL560 Gen10 server has a flexible processor tray allowing to scale up from two to four processors only when you need, saving on upfront costs. The flexible drive cage design supports up to 24 SFF SAS/SATA with a maximum of 12 NVMe drives.
- Supports up to eight PCIe 3.0 expansion slots for graphical processing units (GPUs) and networking cards offering increased I/O bandwidth and expandability.
- Up to four, 96% efficient HPE 800W or 1600W Flexible Slot Power Supplies3, which enable higher power redundant configurations and flexible voltage ranges. The slots provide the capability to trade-off between 2+2 power supplies or use as extra PCIe slots.
Secure and Reliable
- HPE iLO 5 enables the world’s most secure industry standard servers with HPE Silicon Root of Trust technology to protect your servers from attacks, detect potential intrusions and recover your essential server firmware securely.
- Millions of lines of firmware code run before server operating system boots and with Runtime Firmware Validation, enabled by HPE iLO Advanced Premium Security Edition, the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware.
- Secure Recovery allows server firmware to rollback to the to last known good state or factory settings after detection of compromised code.
- Additional security options are available with, Trusted Platform Module (TPM), to prevent unauthorized access to the server and safely stores artifacts used to authenticate the server platforms while the Intrusion Detection Kit logs and alerts when the server hood is removed.
Agile Infrastructure Management for Accelerating IT Service Delivery
- With HPE ProLiant DL560 Gen10 server, HPE OneView provides infrastructure management for automation simplicity across servers, storage and networking.
- A suite of embedded and downloadable tools is available for server lifecycle management including Unified Extensible Firmware Interface (UEFI), Intelligent Provisioning; HPE iLO 5 to monitor and manage; HPE iLO Amplifier Pack, Smart Update Manager (SUM), and Service Pack for ProLiant (SPP).
- Services from HPE Pointnext simplify the stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design a better solution. Professional Services enables rapid deployment of solutions and Operational Services provides ongoing support.
- HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.
Specifications
| Processor | |
|---|---|
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Thermal Design Power (TDP) | 200 W |
| Tcase | 82 °C |
| Supported instruction sets | AVX-512 |
| Scalability | 4S |
| Processor threads | 36 |
| Processor package size | 76.0 x 56.5 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Cascade Lake |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2933 MHz |
| Maximum number of PCI Express lanes | 48 |
| Maximum internal memory supported by processor | 1.02 TB |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| Processor cache | 24.75 MB |
| Processor frequency | 3.1 GHz |
| Processor boost frequency | 4 GHz |
| Number of processors installed | 4 |
| Processor model | 6254 |
| Processor socket | LGA 3647 (Socket P) |
| Processor cores | 18 |
| Processor manufacturer | Intel |
| Motherboard chipset | Intel® C621 |
| Maximum number of SMP processors | 4 |
| Processor family | Intel® Xeon® Gold |
| Memory | |
| Internal memory | 256 GB |
| Memory layout (slots x size) | 8 x 32 GB |
| Memory slots | 48x DIMM |
| Memory clock speed | 2933 MHz |
| Maximum internal memory | 3.07 TB |
| Internal memory type | DDR4-SDRAM |
| Storage | |
| Number of SSDs supported | 8 |
| Supported HDD sizes | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 1 ADM, 5, 6, 10 ADM, 10, 50, 60 |
| Optical drive type | No |
| Number of HDDs supported | 8 |
| Maximum storage capacity | 367 TB |
| Hot-Plug support | Yes |
| Supported SSD sizes | 2.5" |
| Graphics | |
| Maximum graphics card memory | 16 MB |
| On-board graphics card | Yes |
| Network | |
| LAN controller | Broadcom BCM57810S |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Redundant fans support | Yes |
| Rack mounting | Yes |
| Optical drive type | No |
| Chassis type | Rack (2U) |
| Performance | |
| Compatible operating systems | Windows Server 2012 R2 Windows Server 2016 Windows Server 2019 VMware ESXi 6.0 U3 VMware ESXi 6.5 U2 VMware ESXi 6.7 U1 Red Hat Enterprise Linux (RHEL) 7.6 & 8.0 SUSE Linux Enterprise Server (SLES) 12 SP4 ,12 SP3 & 15 SP1 CentOS 7.6 |
| Remote administration | iLO 5 ASIC |
| Operating system installed | No |
| Harmonized System (HS) code | 84714100 |
| Software | |
| Compatible operating systems | Windows Server 2012 R2 Windows Server 2016 Windows Server 2019 VMware ESXi 6.0 U3 VMware ESXi 6.5 U2 VMware ESXi 6.7 U1 Red Hat Enterprise Linux (RHEL) 7.6 & 8.0 SUSE Linux Enterprise Server (SLES) 12 SP4 ,12 SP3 & 15 SP1 CentOS 7.6 |
| Operating system installed | No |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 192451 |
| Power | |
| Number of redundant power supplies installed | 2 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1600 W |
| Technical details | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Supported HDD sizes | 2.5" |
| Redundant fans support | Yes |
| Rack mounting | Yes |
| Hot-Plug support | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Chassis type | Rack (2U) |
| Management features | |
| Remote administration | iLO 5 ASIC |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Weight & dimensions | |
| Width | 445.5 mm |
| Weight | 34.1 kg |
| Height | 87.5 mm |
| Depth | 754.7 mm |
