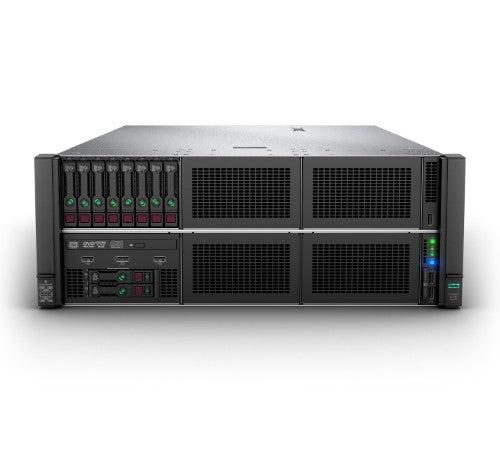

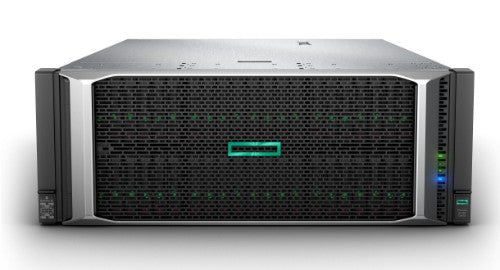

HPE ProLiant DL580 Gen10 server Rack (4U) Intel® Xeon® Gold 6230 2.1 GHz 256 GB DDR4-SDRAM 1600 W

4x Intel Xeon Gold 6230 (2.1GHz, 27.5MB), 256GB (8 x 32GB) DDR4 RDIMM, 8 SFF HDD, Smart Array P408i-p SR Gen10, 4x 1600W RPS

Description

Looking for a highly scalable, workhorse server to address your database, storage, and graphics intensive applications? The HPE ProLiant DL580 Gen10 server is a secure, highly expandable, 4P server with high-performance, scalability and availability in a 4U chassis. Supporting the Intel® Xeon® Scalable processors with up to a 28%1 performance gain, the HPE ProLiant DL580 Gen10 server delivers greater processing power than previous generations. This provides up to 6 TB of 2666 MT/s memory with up to 66% greater memory bandwidth2, up to 16 PCIe 3.0 slots, plus the simplicity of automated management with HPE OneView and HPE iLO 5. HPE ProLiant DL580 Gen10 server is the ideal server for business-critical workloads and general 4P data-intensive applications where the right performance is paramount.

Features

Scalable Performance In An Expandable 4U Form Factor
- The completely redesigned HPE ProLiant DL580 Gen10 server provides 4P computing in an expandable 4U form factor and supports up to four Intel Xeon Platinum and Gold processors which provide up to 28%1 more processor performance and 17%3 more cores than the previous generation.
- Up to 48 DIMM slots which support up to 6 TB for 2666 MT/s HPE DDR4 SmartMemory. HPE DDR4 SmartMemory improves workload performance and power efficiency while reducing data loss and downtime with enhanced error handling.
- Choice of HPE FlexibleLOM Adapters offers a range of networking speeds (1GbE to 25GbE) and fabrics so you can adapt and grow to changing business needs.
- HPE Innovation with Intelligent System Tuning enhances workload performance using customized profiles to tune internal resources; improves workloads such as high frequency trading with jitter smoothing and provides added performance with core boosting SKUs.

Remarkable Expandability and Availability For Multiple Workloads

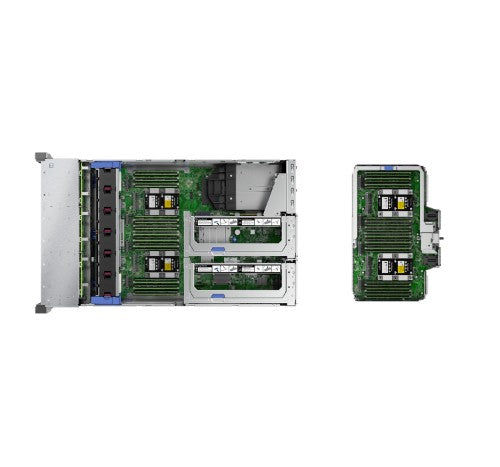

- HPE ProLiant DL580 Gen10 server has a flexible processor tray allowing it to scale up from one to four processors as needed, saving on upfront costs and the flexible drive cage design supports up to 48 Small Form Factor (SFF) SAS/SATA drives and a maximum of 20 NVMe drives.
- Supports up to 16 PCIe 3.0 expansion slots including up to four full length/full height graphics processing units (GPUs), as well as networking cards or storage controllers offering increased expandability.

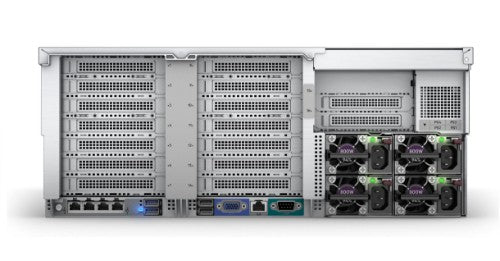

- Up to four, 96% efficient HPE 800W or 1600W Flex Slot Power Supplies which enable higher power redundancy with 2+2 configurations and flexible voltage ranges.

Secure and Reliable
- HPE iLO 5 enables the world’s most secure industry standard servers with HPE Silicon Root of Trust technology to protect your servers from attacks, detect potential intrusion and recover your essential server firmware securely.
- Millions of lines of firmware code run before server operating system boots and with Runtime Firmware Validation; enabled by HPE iLO Advanced Premium Security Edition, the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware.
- Secure Recovery allows server firmware to roll back to the last known good state or factory settings after detection of compromised code.
- Additional security options are available with, Trusted Platform Module (TPM), to prevent unauthorized access to the server and safely stores artifacts used to authenticate the server platforms while the Intrusion Detection Kit logs and alerts when the server hood is removed.

Agile Infrastructure Management for Accelerating IT Service Delivery
- HPE ProLiant DL580 Gen10 server combined with the HPE OneView software provides infrastructure management for automation simplicity across servers, storage and networking.
- A suite of embedded and downloadable tools is available for server lifecycle management including Unified Extensible Firmware Interface (UEFI), Intelligent Provisioning; HPE iLO 5 to monitor and manage; HPE iLO Amplifier Pack, Smart Update Manager (SUM), and Service Pack for ProLiant (SPP).
- Services from HPE Pointnext Services simplify all stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an better solution. Professional Services enables rapid deployment of solutions and Operational Services provides ongoing support.
- HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.

Specifications

Processor
Processor generation	2nd Generation Intel® Xeon® Scalable
Thermal Design Power (TDP)	125 W
Tcase	87 °C
Supported instruction sets	AVX-512
Scalability	4S
Processor threads	40
Processor package size	76.0 x 56.5 mm
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Cascade Lake
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2933 MHz
Maximum number of PCI Express lanes	48
Maximum internal memory supported by processor	1.02 TB
Execute Disable Bit	Yes
Embedded options available	Yes
Processor cache	27.5 MB
Processor frequency	2.1 GHz
Processor boost frequency	3.9 GHz
Number of processors installed	4
Processor model	6230
Processor socket	LGA 3647 (Socket P)
Processor cores	20
Processor manufacturer	Intel
Motherboard chipset	Intel® C621
Maximum number of SMP processors	4
Processor family	Intel® Xeon® Gold
Memory
Internal memory	256 GB
Memory layout (slots x size)	8 x 32 GB
Memory slots	48x DIMM
Memory clock speed	2933 MHz
Maximum internal memory	1.54 TB
Internal memory type	DDR4-SDRAM
Storage
Supported HDD sizes	2.5"
RAID support	Yes
RAID levels	0, 1, 1 ADM, 5, 6, 10 ADM, 10, 50, 60
Optical drive type	No
Number of HDDs supported	8
Maximum storage capacity	115.2 TB
Hot-Plug support	Yes
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
Graphics
Maximum graphics card memory	16 MB
On-board graphics card	Yes
Network
LAN controller	Broadcom BCM57810S
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Ports & interfaces
VGA (D-Sub) ports quantity	1
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	4
Expansion slots
PCI Express slots version	3.0
Optical drive
Optical drive type	No
Design
Rack mounting	Yes
Optical drive type	No
Chassis type	Rack (4U)
Performance
Compatible operating systems	Windows Server 2012 R2 Windows Server 2016 Windows Server 2019 VMware ESXi Red Hat Enterprise Linux (RHEL) 7.6 & 8.0 SUSE Linux Enterprise Server (SLES) 12 SP4 ,12 SP3 & 15 SP1
Remote administration	iLO 5 ASIC
Operating system installed	No
Harmonized System (HS) code	84714100
Software
Compatible operating systems	Windows Server 2012 R2 Windows Server 2016 Windows Server 2019 VMware ESXi Red Hat Enterprise Linux (RHEL) 7.6 & 8.0 SUSE Linux Enterprise Server (SLES) 12 SP4 ,12 SP3 & 15 SP1
Operating system installed	No
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Turbo Boost Technology	2.0
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	192437
Power
Number of redundant power supplies installed	4
Redundant power supply (RPS) support	Yes
Power supply	1600 W
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Supported HDD sizes	2.5"
Rack mounting	Yes
Hot-Plug support	Yes
Ethernet interface type	Gigabit Ethernet
Chassis type	Rack (4U)
Management features
Remote administration	iLO 5 ASIC
Logistics data
Harmonized System (HS) code	84714100
Weight & dimensions
Width	445.5 mm
Weight	51.7 kg
Height	174.7 mm
Depth	751.8 mm
