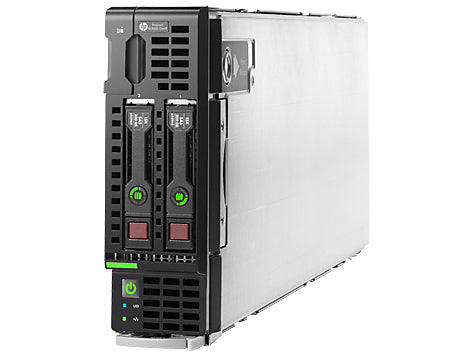

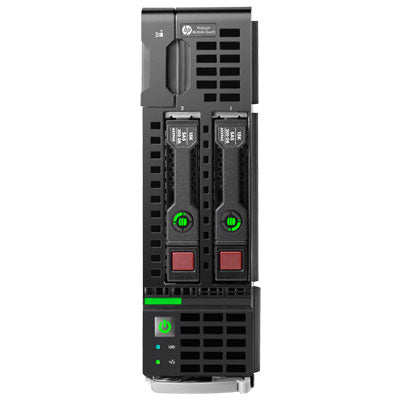

HPE ProLiant g server Blade Intel Xeon E5 v3 E5-2650V3 2.3 GHz 32 GB DDR4-SDRAM

Intel Xeon E5-2650 v3 (2.3GHz, 25MB), 32GB (2 x 16GB) RDIMM, Smart Array P244br, Blade

Description

Are you looking for the right server blade to be your data center workhorse for your demanding core IT and virtualization workloads? Designed for a wide range of configuration and deployment options, the HP ProLiant BL460c Gen9 Server Blade provides the flexibility to optimize your core IT applications with right-sized storage for the right workload for a lower TCO. All of this is managed by HP OneView, 1 the converged management platform that accelerates IT service delivery and boosts business performance. The BL460c Gen9 Server Blade uses Intel® Xeon® E5-2600 v3 processors with up to 70% performance 2 gain over the previous generation, plus enhanced HP DDR4 SmartMemory offering up to 33% performance 3 increase.

Flexible storage controller options additional support includes an optional 12 Gb/s SAS controller, 20 Gb FlexibleLOM NICs, and USB 3.0 on the internal connector.

Features

Superior Value Across Different Workloads
- The HP ProLiant BL460c Gen9 Server Blade delivers the right performance, scalability, and economics for the converged data center in the new era of compute at the lowest cost, fastest time to value with latest innovations.
- Provides the flexibility to optimize your core IT applications, with right-sized storage for the right workload lowering TCO, all managed by HP OneView the converged management platform that accelerates IT service delivery and boosts business performance.

Increased Performance in the Data Center
- The HP ProLiant BL460c Gen9 Server Blade delivers up to 70% performance increases with Intel® Xeon® E5-2600 v3 processors.
- HP DDR4 SmartMemory at 2133 MHz (up to 512 GB): +14% - 33% throughput compared to competition and 35% lower power consumption than 1.5v DDR3 at the same bin speed.
- Optional HP Smart Array P244br storage controller with 1 GB Flash-Write Back Cache (FWBC) DDR3 at 1866 MHz improves storage performance for demanding workloads.

More Versatile Than Ever Before
- The HP ProLiant BL460c Gen9 Server Blade delivers a flexible embedded storage controller options (HP Smart Array P244br, HP H244br Smart Host Bus Adapter, or the HP Dynamic Smart Array B140i Controller) for increased deployment flexibility.
- Every BL460c Gen9 Server Blade includes USB 3.0, future optional dual Micro-SD, and future optional M.2 support for configuration variety of system boot options at the best price.
- Both Unified Extensible Firmware Interface (UEFI) and Legacy BIOS modes available for increased configuration and deployment versatility.

Transforming Business Economics by Accelerating Service Delivery
- HP OneView provides the Power of One—a single comprehensive view of the data center, managing hardware, software, firmware, and drivers.
- HP Integrated Lights-out (iLO) software features server lifecycle management advancements including iLO Federation, which remotely manages groups of servers at scale with built-in rapid discovery of all iLOs, group configurations, group health status, and ability to determine iLO licenses.

Specifications

Processor
Thermal Monitoring Technologies	Yes
Thermal Design Power (TDP)	105 W
Tcase	78.9 °C
Supported instruction sets	AVX 2.0
Stepping	M1
Scalability	2S
Processor threads	20
Processor package size	52.5 x 45 mm
Processor operating modes	64-bit
Processor lithography	22 nm
Processor codename	Haswell
Processor code	SR1YA
Physical Address Extension (PAE)	46 bit
PCI Express configurations	x4, x8, x16
Number of QPI links	2
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133 MHz
Memory channels supported by processor	Quad
Memory bandwidth supported by processor (max)	68 GB/s
Maximum number of PCI Express lanes	40
Maximum internal memory supported by processor	768 GB
Idle States	Yes
FSB Parity	No
Execute Disable Bit	Yes
Embedded options available	No
ECC supported by processor	Yes
Bus type	QPI
Processor cache type	Smart Cache
Processor cache	25 MB
Conflict-Free processor	No
Processor series	Intel Xeon E5-2600 v3
Processor frequency	2.3 GHz
Processor boost frequency	3 GHz
Number of processors installed	1
Processor model	E5-2650V3
System bus rate	9.6 GT/s
Processor socket	LGA 2011-v3
Processor cores	10
Processor manufacturer	Intel
Motherboard chipset	Intel C610
Maximum number of SMP processors	2
Processor family	Intel Xeon E5 v3
Memory
Internal memory	32 GB
Memory layout (slots x size)	2 x 16 GB
Memory slots	16x DIMM
Memory clock speed	2133 MHz
Maximum internal memory	512 GB
Internal memory type	DDR4-SDRAM
ECC	Yes
Storage
RAID support	Yes
RAID levels	0, 1
Optical drive type	No
Number of HDDs supported	2
Maximum storage capacity	4 TB
Hot-Plug support	Yes
HDD size	2.5"
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
Network
Ethernet LAN	Yes
Ethernet interface type	10 Gigabit
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Expansion slots
PCI Express slots version	3.0
Optical drive
Optical drive type	No
Design
Optical drive type	No
Chassis type	Blade
Graphics
Graphics card family	Matrox
Graphics card	G200eh
Performance
Compatible operating systems	Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Canonical Ubuntu Oracle Solaris VMware Citrix XenServer
Operating system installed	No
Software
Compatible operating systems	Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Canonical Ubuntu Oracle Solaris VMware Citrix XenServer
Operating system installed	No
Processor special features
Intel® Wireless Display (Intel® WiDi)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Enhanced Intel SpeedStep Technology	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Turbo Boost Technology	2.0
Intel TSX-NI	No
Intel Trusted Execution Technology	Yes
Intel® Smart Cache	Yes
Intel® Secure Key	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Flex Memory Access	No
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel Clear Video Technology	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	0.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Intel FDI Technology	No
Intel Dual Display Capable Technology	No
Intel Fast Memory Access	No
Processor ARK ID	81705
Intel Rapid Storage Technology	No
CPU configuration (max)	2
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Rapid Storage Technology	No
Hot-Plug support	Yes
Ethernet interface type	10 Gigabit
CPU configuration (max)	2
Chassis type	Blade
Sustainability certificates	ENERGY STAR
Sustainability
Sustainability certificates	ENERGY STAR
Weight & dimensions
Width	55.4 mm
Weight	6.33 kg
Height	180.7 mm
Depth	517.6 mm
Other features
Graphics card family	Matrox
Graphics card	G200eh
CPU configuration (max)	2
