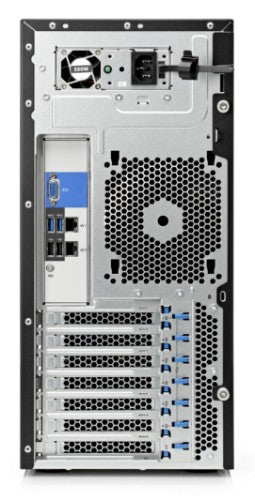

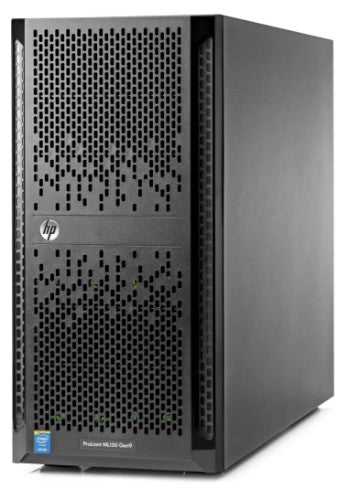

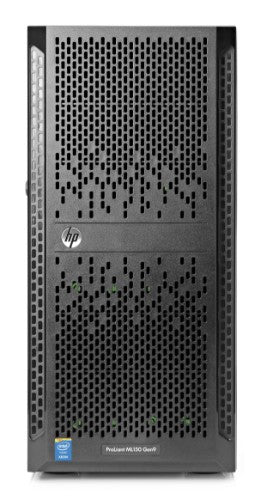

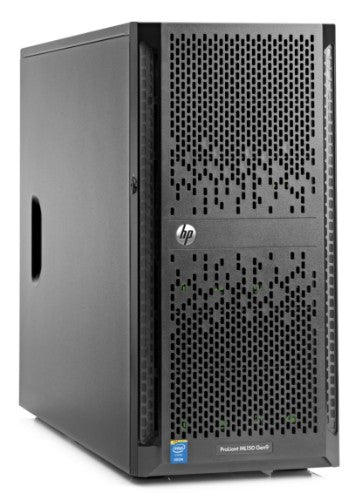

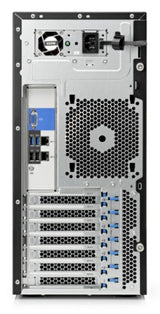

HPE ProLiant ML150 Gen9 server 0 GB Tower (5U) Intel® Xeon® E5 v4 E5-2609V4 1.7 GHz 8 GB DDR4-SDRAM 550 W

Intel Xeon E5-2609 v4 (1.7GHz, 20MB), 8GB (1 x 8GB) DDR4, 4 LFF SATA, Dynamic Smart Array B140i, 550W PS

Description

Are you searching for a tower server to meet the requirements of your small to medium-sized growing business? The HPE ProLiant ML150 Gen9 Server is a tower server that delivers exceptional value for a business with a limited budget with a 24-inch chassis depth. Providing dual processor sockets, it provides essential performance with the Intel® Xeon® E5-2600 v4 processors.

Built-in innovations that simplify server deployment and management, your business can continually reap these benefits on a daily basis, with expansion options that enable you to expand as needed, delivering increased business value. The HPE ProLiant ML150 Gen9 Server provides efficiency and productivity for both the small to medium organization that is growing.

Features

Performance to Meet Growing SMB Requirements
- The HPE ProLiant ML150 Gen9 Server has built-in intelligence, with the right balance of storage, performance, efficiency, manageability and with enough headroom for future growth.
- Supports up to two Intel® Xeon® E5-2600 v4 processors with up to 14 cores offering both improved performance and efficiency.
- Help prevent data loss and downtime with enhanced error handling while improving workload performance and power efficiency with up to (16) DIMM slots of HPE DDR4 SmartMemory.
- Embedded SATA HPE Dynamic Smart Array B140i Controller for boot and data. Choice of HPE Smart Array Controllers for increased performance, data availability and 12 Gb/s SAS technology or HPE Smart HBAs with reliable high-performance SAS connectivity capable of running HBA mode or simple RAID mode.
- Increased GPU support (two single wide and one double wide GPU card support) to boost performance in graphic and VDI applications for financial services, education, scientific research and medical imaging.

Efficiency and Expandability to Fit the Needs of Growing, Budget-Conscious Businesses
- The HPE ProLiant ML150 Gen9 Server is designed as a dual-socket tower server providing configuration flexibility and expansion options to meet a wide range of different capacities, connectivity, and design requirements.
- Flexible expansion capacity with (6) PCIe expansion slots, (8) USB ports, and power supply options.
- Compact server with a 24-inch chassis depth; newly designed and saves precious real estate space and is suitable for your growing business within a compact office environment.
- Offering expandability with greater capacity with up to (10) Large Form Factor (LFF) disk drives or (16) Small Form Factor (SFF) disk drive options and increased I/O expansion.
- Improved ambient temperature standard with ASHRAE A3 1 helps customer reduce cooling expense.

Infrastructure Management for Essential Server Administration
- The HPE ProLiant ML150 Gen9 Server continues to provide a simplified server deployment with tiered management. Businesses continue to reap benefits on a daily basis, while expansion options allow them to grow as needed with HPE Integrated Lights-Out (iLO).
- Configure with the Unified Extensible Firmware Interface (UEFI) boot mode, provision both locally and remotely with either the Intelligent Provisioning or Scripting Toolkits.
- Online personalized dashboard for Converged Infrastructure (CI) for health monitoring and support management from within HPE Insight Online.
- Optimize firmware and driver updates and reduce downtime with Smart Update, consisting of SUM (Smart Update Manager) and SPP (Service Pack for ProLiant).

Enhanced Serviceability Offerings
- The HPE ProLiant ML150 Gen9 Server delivers a new style IT that delivers simplicity and agility needed to manage business investments.
- Proven HPE ProLiant reliability, exceptional worldwide service 24x7, unparalleled remote management tools that reduce IT travel costs, while increasing time-to-resolution.
- Worldwide availability, service and support with a complete range of service offerings from installation to extended support.

Specifications

Processor
Thermal Monitoring Technologies	Yes
Thermal Design Power (TDP)	85 W
Tcase	74 °C
Supported instruction sets	AVX 2.0
Stepping	R0
Scalability	2S
Processor threads	8
Processor package size	45 x 52.5 mm
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Broadwell
Processor code	SR2P1
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
PCI Express configurations	1x4, 1x8, 1x16
Number of QPI links	2
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866 MHz
Memory channels supported by processor	Quad
Memory bandwidth supported by processor (max)	59.7 GB/s
Maximum number of PCI Express lanes	40
Maximum internal memory supported by processor	1.54 TB
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	Yes
ECC supported by processor	Yes
Bus type	QPI
Processor cache type	Smart Cache
Processor cache	20 MB
Conflict-Free processor	Yes
Processor series	Intel Xeon E5-2600 v4
Processor frequency	1.7 GHz
Number of processors installed	1
Processor model	E5-2609V4
System bus rate	6.4 GT/s
Processor socket	LGA 2011-v3
Processor cores	8
Processor manufacturer	Intel
Motherboard chipset	Intel C610
Maximum number of SMP processors	2
Processor family	Intel® Xeon® E5 v4
Memory
Internal memory	8 GB
Memory layout (slots x size)	1 x 8 GB
Memory slots	16x DIMM
Memory clock speed	2400 MHz
Maximum internal memory	512 GB
Internal memory type	DDR4-SDRAM
ECC	Yes
Storage
Total storage capacity	0 GB
Number of HDDs installed	0
RAID support	Yes
RAID levels	0, 1, 5, 10
Optical drive type	No
Number of HDDs supported	4
Maximum storage capacity	64 TB
HDD size	3.5"
HDD interface	Serial ATA
Graphics
Thermal Design Power (TDP)	85 W
On-board graphics card model	Not available
Graphics card family	Matrox
Graphics card	G200
Network
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
VGA (D-Sub) ports quantity	1
USB 2.0 ports quantity	2
Serial ports quantity	0
Ethernet LAN (RJ-45) ports	2
Expansion slots
PCI Express slots version	3.0
Optical drive
Optical drive type	No
Design
Optical drive type	No
Chassis type	Tower (5U)
Performance
Compatible operating systems	Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware Oracle Solaris
Operating system installed	No
Software
Compatible operating systems	Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware Oracle Solaris
Operating system installed	No
Processor special features
Intel® Identity Protection Technology (Intel® IPT)	No
Enhanced Intel SpeedStep Technology	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Turbo Boost Technology	No
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel® Secure Key	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel Flex Memory Access	No
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Processor ARK ID	92990
CPU configuration (max)	2
Power
Number of main power supplies	1
Redundant power supply (RPS) support	No
Power supply	550 W
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Ethernet interface type	Gigabit Ethernet
CPU configuration (max)	2
Chassis type	Tower (5U)
Weight & dimensions
Width	200 mm
Height	432.6 mm
Depth	620 mm
Other features
Graphics card family	Matrox
Graphics card	G200
CPU configuration (max)	2
