HPE | SKU:
451871R-B21
Sold out
HPE QLogic QMH2562 interface cards/adapter Internal Fiber
€654.80
Unit price
/
Unavailable
Shipping calculated at checkout.
HPE QLogic QMH2562 interface cards/adapter Internal Fiber is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.

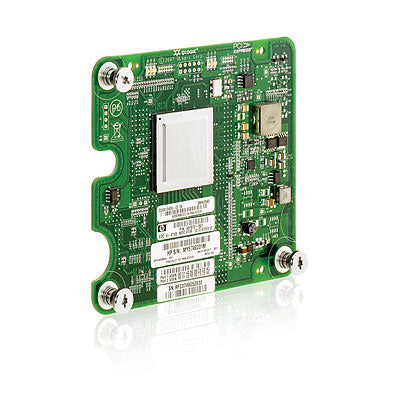

QLogic QMH2562 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem
Virtualization, power and security.
QLogic QMH2562 8Gb Fibre Channel HBA for c-Class BladeSystem allows multiple logical (virtual) connections to share the same physical port. Each logical connection has its own resources and the ability to be managed independently. QLogic QMH2562 8Gb Fibre Channel HBA for c-Class BladeSystem takes advantage of the QLogic StarPower technology ensuring a power efficient HBA. The QLogic StarPower technology offers features such as power and bandwidth intelligent PCIe link training and low-power switching power supplies. QLogic QMH2562 8Gb Fibre Channel HBA for c-Class BladeSystem enables SAN-level authentication, fabric-level isolation, and end-to-end data integrity. Features include; authentication through FC-SP, data integrity through T10 CRC and access control in virtualized environments.
Description
The QMH2562 is a PCI Express based 8Gb Fibre Channel mezzanine card for the HP c-Class BladeSystem that delivers twice the data throughput as the previous generation 4Gb mezzanine card. It is optimized for virtualization, low power usage, management, security, reliability, availability and serviceability. While providing leading edge 8Gb performance, it is also backward compatible with 4Gb and 2Gb Fibre Channel speeds.Virtualization, power and security.
QLogic QMH2562 8Gb Fibre Channel HBA for c-Class BladeSystem allows multiple logical (virtual) connections to share the same physical port. Each logical connection has its own resources and the ability to be managed independently. QLogic QMH2562 8Gb Fibre Channel HBA for c-Class BladeSystem takes advantage of the QLogic StarPower technology ensuring a power efficient HBA. The QLogic StarPower technology offers features such as power and bandwidth intelligent PCIe link training and low-power switching power supplies. QLogic QMH2562 8Gb Fibre Channel HBA for c-Class BladeSystem enables SAN-level authentication, fabric-level isolation, and end-to-end data integrity. Features include; authentication through FC-SP, data integrity through T10 CRC and access control in virtualized environments.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | Fiber |
| Host interface | PCIe |
| Technical details | |
| Data transfer rate (max) | 8 Gbit/s |
| Supported protocols | FC-AL-2 FC-AL FC-Tape FCP-3-SCSI |
| Compliance certificates | RoHS |
| Performance | |
| Data transfer rate (max) | 8 Gbit/s |
| Supported protocols | FC-AL-2 FC-AL FC-Tape FCP-3-SCSI |
| Design | |
| Internal | Yes |
| Features | |
| Data transfer rate (max) | 8 Gbit/s |
| Supported protocols | FC-AL-2 FC-AL FC-Tape FCP-3-SCSI |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 70 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 1.3 mm |
| Depth | 101.6 mm |
| Height | 114.3 mm |
| Weight | 454 g |
| Packaging data | |
| User guide | Yes |
| Quick installation guide | Yes |
| Packaging content | |
| User guide | Yes |
| Quick installation guide | Yes |
