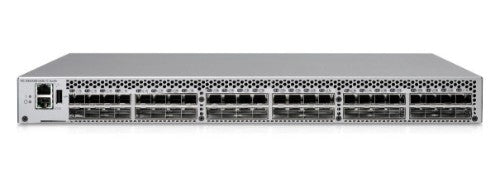

HPE QR481B Managed 1U Metallic

SN6000B 16Gb 48-port/48-port Active Power Pack+ Fibre Channel Switch

Description

To remain competitive, IT organizations must keep pace with ever-increasing workloads without a similar increase in their budgets or resources. While virtualization has provided some relief by enabling the benefits of faster deployment and consolidation, it also tends to put additional stress on data center networks. In addition, the move toward cloud computing, which promises greater efficiency and a more service-oriented business model, means that these networks will face even greater demands.

The HPE SN6000B Fibre Channel Switch meets the demands of hyper-scale, private cloud storage environments by delivering market-leading 16 Gb Fibre Channel technology and capabilities that support highly virtualized environments. Designed to enable maximum flexibility and investment protection, the SN6000B Switch is configurable in 24, 36, or 48 ports and supports 4, 8, 10, or 16 Gbps speeds in an efficiently designed 1U package. It also provides a simplified deployment process and a point-and-click user interface-making it both powerful and easy to use. The SN6000B Switch offers low-cost access to industry-leading Storage Area Network (SAN) technology while providing "pay-as-you-grow" scalability to meet the needs of an evolving storage environment.

Specifications

Technical details
Form factor	1U
Product colour	Metallic
Rack mounting	Yes
Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Ports & interfaces
SFP module slots quantity	48
Basic switching RJ-45 Ethernet ports type	No
Network
Rate limiting	Yes
10G support	Yes
Design
Form factor	1U
Product colour	Metallic
Rack mounting	Yes
Power
Power supply included	Yes
AC input voltage	85 - 264 V
AC input frequency	47/63 Hz
Power consumption (typical)	110 W
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 85%
Operating altitude	0 - 3000 m
Weight & dimensions
Width	438 mm
Depth	443 mm
Height	43 mm
Weight	9.16 kg
